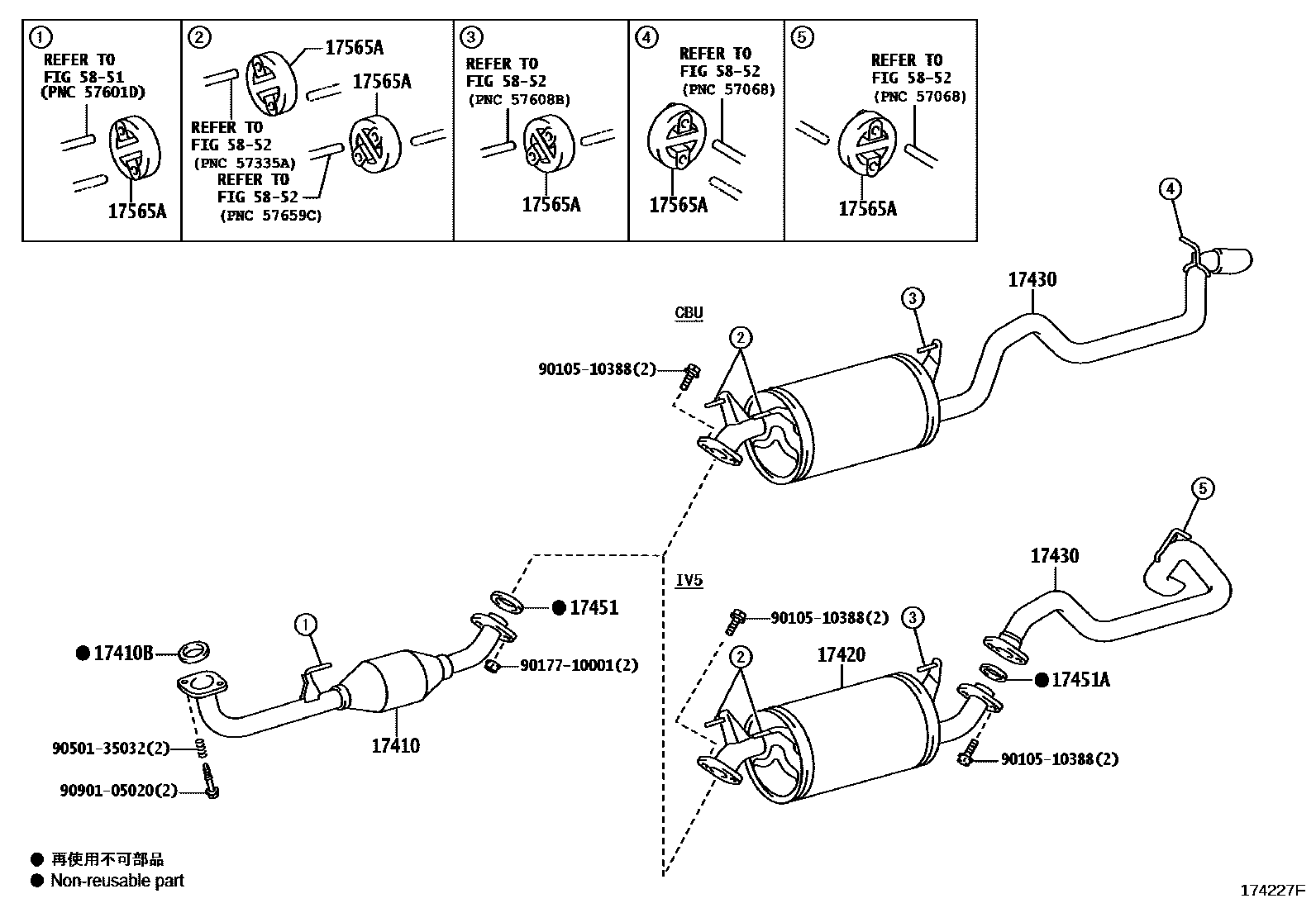

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-30060i2KDFTV..KDH200,220,222200408-200709

main17410-30090i2KDFTV..KDH205,225,227200408-200709

main17410-30240i1KDFTV..KDH201,211,22#200709-201008

main17410-30250i1KDFTV..KDH206200709-201008

main17410-30330i1KDFTV..KDH201,211,22#201008-201312

main17410-30340i1KDFTV..KDH206201008-201312

main17410-75440i1TRFE..TRH200200408-201008

main17410-75480i2TRFE..TRH219,226,228,229200408-201008

main17410-75490i1TRFE..TRH200201008-201312

main17410-75530i2TRFE..TRH211,214,221,223,224200408-201008

main17410-75560i2TRFE..TRH211,214,221,223,224201008-201312

main17410-75650i2TRFE..TRH216,219,226,228,229201008-201312

17410BGASKET, EXHAUST PIPE

main17451-22070i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main17451-30040i1KDFTV..KDH20#,211,22#200709-201008

main17451-67020i2KDFTV..KDH20#,22#200408-200709

17420PIPE ASSY, EXHAUST, CENTER

main17420-30090i2KDFTV..KDH22#200501-200709

sub17420-30091

main17420-30100i2KDFTV..KDH20#..IV5200408-200709

sub17420-30101

main17420-30160i1KDFTV..KDH20#,211200709-201008

sub17420-30162

main17420-30161i1KDFTV..KDH20#,211200910-200912

sub17420-30160

main17420-30170i1KDFTV..KDH22#200709-201008

sub17420-30171

main17420-30230i1KDFTV..KDH20#,211201008-201312

main17420-30240i1KDFTV..KDH22#201008-201312

main17420-75420i2TRFE..TRH22#200501-201312

main17420-75460i1TRFE..TRH200..IV5200408-201312

17430PIPE ASSY, EXHAUST, TAIL

main17430-30060i2KDFTV..KDH20#..5F200408-200709

sub17430-30061

main17430-30080i2KDFTV..KDH20#..4FC..CBU200408-200709

sub17430-30081

main17430-30140i1KDFTV..KDH20#..CBU200709-200909

sub17430-30141

main17430-30141i1KDFTV..KDH20#..CBU200910-200911

sub17430-30142

main17430-30142i1KDFTV..KDH20#..CBU200912-201008

main17430-30160i1KDFTV..KDH211200709-200911

sub17430-30161

main17430-30161i1KDFTV..KDH211200912-201008

main17430-30170i1KDFTV..KDH20#..CBU201008-201312

main17430-30180i1KDFTV,2TRFE..KDH211,22#,TRH22#..CBU201008-201312

main17430-75710i1TRFE..TRH200..CBU200408-201312

main17430-75750i2TRFE..TRH21#200408-201312

main17430-75760i2KDFTV..KDH22#..CBU200501-200709

main17430-75770i1KDFTV..KDH221,223..CBU200501-200710

sub17430-75771

main17430-75771i1KDFTV,2TRFE..KDH22#,TRH22#..CBU200710-201008

main17430-75800i1KDFTV..KDH201,206..IV5200408-201004

sub17430-75801

main17430-75801i1TRFE..TRH200..IV5201004-201312

sub17430-75802

main17430-75810i1KDFTV,2KDFTV,2TRFE..KDH222,223,227,TRH223,224,228,229..IV5200501-201003

sub17430-75811

main17430-75811i1KDFTV,2TRFE..KDH223,TRH223,224,228,229..IV5201004-201312

sub17430-75812

17451GASKET, EXHAUST PIPE

main17451-30040i1KDFTV..KDH20#,211,22#200709-201008

main17451-74040i1KDFTV..KDH20#,211,22#200408-201312

main90917-06054i2TRFE..TRH21#,22#200408-201312

main90917-06073i2KDFTV..KDH20#,22#200408-200709

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06073i1KDFTV..KDH201,206,211,221,223;2KDFTV,1TRFE..KDH200,205,TRH200..IV5200408

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#200408-201312

5851

5852

9010510388

main90105-10388

9017710001

main90177-10001

9050135032

main90501-35032

9090105020

main90901-05020

13 parts on this diagram · 9 diagrams in section
