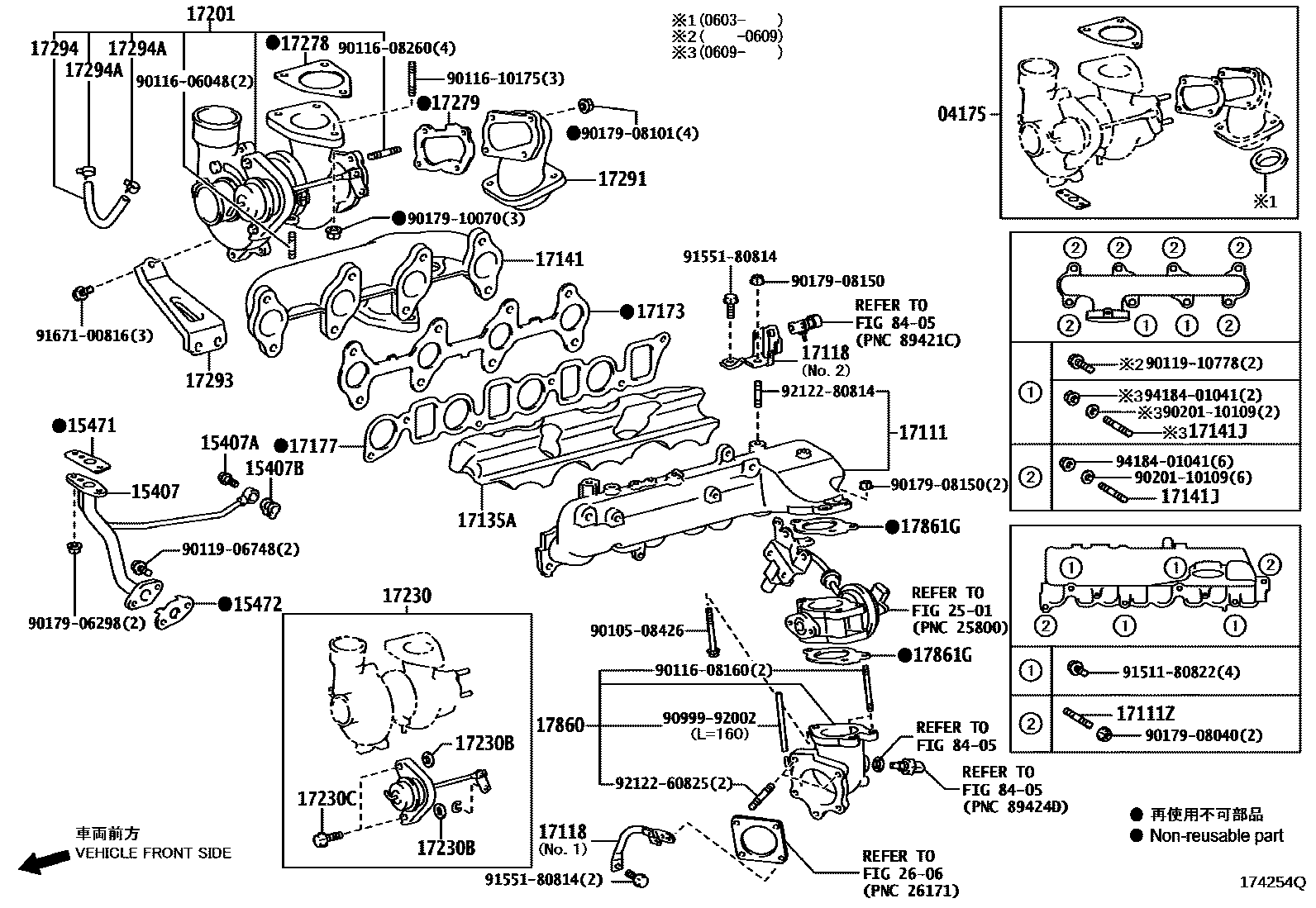

MANIFOLD

0001 1 0002 1 0003 1 0004 1

04175GASKET KIT, TURBOCHARGER

main04175-30050i2KDFTV..KDH20#,22#200408-200603

sub04175-30051

main04175-30051i2KDFTV..KDH20#,22#200603-200709

sub04175-30052

main04175-30180i1KDFTV..KDH20#,211,22#200709-200812

sub04175-30181

main04175-30181i1KDFTV..KDH20#,211,22#200812-201008

main04175-30220i1KDFTV..KDH20#,211,22#201008-201312

sub04175-30221

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-30040i2KDFTV..KDH20#,22#200408-200707

sub15407-30041

main15407-30041i2KDFTV..KDH20#,22#200707-200709

sub15407-30042

main15407-30070i1KDFTV..KDH20#,211,22#200709-201008

main15407-30110i1KDFTV..KDH20#,211,22#201008

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i1KDFTV,2KDFTV..KDH20#,211,22#200408

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90904-30004i1KDFTV,2KDFTV..KDH20#,211,22#200408

15471GASKET, TURBO OIL INLET

main15471-30010i1KDFTV,2KDFTV..KDH20#,211,22#200408-200812

sub15471-30011

main15471-30011i1KDFTV..KDH20#,211,22#200812

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-30010i1KDFTV..KDH20#,211,22#201008

main15472-67010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

sub15472-30010

17111MANIFOLD, INTAKE

main17101-30020i2KDFTV..KDH20#,22#200408-200709

main17101-30080i1KDFTV..KDH20#,211,22#200709-200808

sub17101-30081

sub91551-80814

main17101-30081i1KDFTV..KDH20#,211,22#200808-201008

main17101-30110i1KDFTV..KDH20#,211,22#201008-201312

main17120-0C010i1TRFE..TRH200200408-201312

sub17120-0C011

main17120-0C020i2TRFE..TRH21#,22#200408-201312

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main92122-80822i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

17118STAY, MANIFOLD

main17118-30040i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

main17118-30040i1KDFTV..KDH20#,211,22#201008-201312

main17118-30050i2KDFTV..KDH20#,22#200408-200709

main17118-30130i1KDFTV..KDH20#,211,22#200709-201008

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-30011i2KDFTV..KDH20#,22#200408-200709

main17135-30030i1KDFTV..KDH20#,211,22#201008

17141MANIFOLD, EXHAUST

main17141-30050i2KDFTV..KDH20#,22#200408-200709

main17141-30081i1KDFTV..KDH20#,211,22#200709-201008

main17141-30090i1KDFTV..KDH20#,211,22#201008-201312

main17141-75120i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-10017i2KDFTV..KDH20#,22#200408-200503

main90126-10034i1KDFTV..KDH20#,211,22#200709-201312

main90126-10037i2KDFTV..KDH20#,22#200503-200709

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-30020i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

main17173-75040i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0C010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main17177-30011i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

17201TURBOCHARGER SUB-ASSY

main17201-30070i2KDFTV..KDH20#,22#200408-200709

main17201-30150i1KDFTV..KDH20#,211,22#200709-200904

sub17201-30180

main17201-30180i1KDFTV..KDH20#,211,22#200904-201008

sub17201-30181

main17201-30200i1KDFTV..KDH20#,211,22#201008-201312

sub17201-30201

17230ACTUATOR ASSY, W/BRACKET

main17230-39065i2KDFTV..KDH20#,22#200408-200709

17230BWASHER, PLATE(FOR REPAIR ACTUATOR SET)

main90201-06042i2KDFTV..KDH20#,22#200408-200709

main90201-06043i2KDFTV..KDH20#,22#200408-200709

main90201-06044i2KDFTV..KDH20#,22#200408-200709

main90201-06045i2KDFTV..KDH20#,22#200408-200709

17230CBOLT, W/WASHER(FOR REPAIR ACTUATOR SET)

main91551-80618i2KDFTV..KDH20#,22#200408-200709

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-67010i1KDFTV,2KDFTV..KDH20#,211,22#200408

17279GASKET, TURBINE OUTLET ELBOW

main17279-30020i2KDFTV..KDH20#,22#200408-200709

main17279-30030i1KDFTV..KDH20#,211,22#200709-201312

sub17279-30031

17291ELBOW, TURBINE OUTLET

main17291-30030i2KDFTV..KDH20#,22#200408-200709

main17291-30140i1KDFTV..KDH20#,211,22#200709-201008

sub17291-30141

main17291-30170i1KDFTV..KDH20#,211,22#201008-201308

sub17291-30171

main17291-30171i1KDFTV..KDH20#,211,22#201308-201312

sub17291-30173

17293STAY, TURBOCHARGER

main17293-30030i2KDFTV..KDH20#,22#200408-200709

main17293-30060i1KDFTV..KDH20#,211,22#200709-201008

main17293-30100i1KDFTV..KDH20#,211,22#201008-201312

17294HOSE, ACTUATOR

main90445-12251i2KDFTV..KDH20#,22#200408-200709

17294ACLIP(FOR ACTUATOR HOSE)

main96132-51100i2KDFTV..KDH20#,22#200408-200709

17860CONNECTOR ASSY, INTAKE AIR

main17860-30050i2KDFTV..KDH20#,22#200408-200709

main17860-30090i1KDFTV..KDH20#,211,22#200709-201008

main17861-30120i1KDFTV..KDH20#,211,22#201008-201312

17861GGASKET, INTAKE AIR CONNECTOR

main25627-30040i1KDFTV..KDH20#,211,22#200709-201008

main26171-30013i2KDFTV..KDH20#,22#200408-200607

main26171-30030i2KDFTV..KDH20#,22#200607-200709

2501

2606

8405

9010508426

main90105-08426

9011606048

main90116-06048

9011608160

main90116-08160

9011608260

main90116-08260

9011610175

main90116-10175

9011906748

main90119-06748

9011910778

main90119-10778

9017906298

main90179-06298

9017908040

main90179-08040

9017908101

main90179-08101

9017908150

main90179-08150

9017910070

main90179-10070

9020110109

main90201-10109

9099992002

main90999-92002

9151180822

main91511-80822

9155180814

main91551-80814

9167100816

main91671-00816

9212260825

main92122-60825

9212280814

main92122-80814

9418401041

main94184-01041

49 parts on this diagram · 4 diagrams in section
