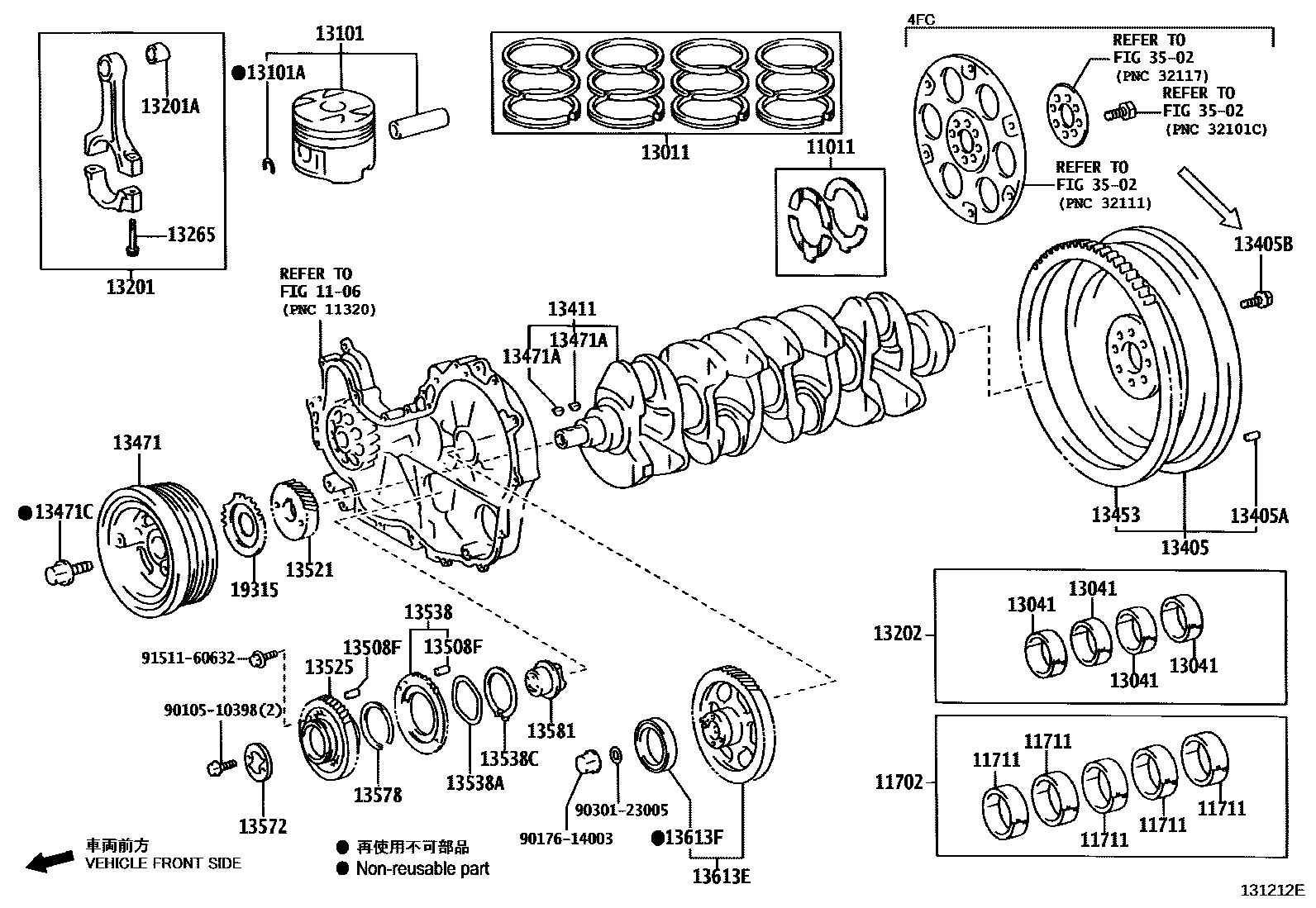

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-30010i1KDFTV,2KDFTV..KDH20#,211,22#200408

main11011-75020i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main11012-30010i1KDFTV,2KDFTV..KDH20#,211,22#200408

main11013-30010i1KDFTV,2KDFTV..KDH20#,211,22#200408

1106

11702BEARING SET, CRANKSHAFT

main11704-30020i2KDFTV..KDH20#,22#200408-200705

main11704-30030i1KDFTV,2KDFTV..KDH20#,211,22#200706

main11704-75031i1TRFE,2TRFE..TRH200,21#,22#200408-201312

sub11704-75032

main11705-30020i2KDFTV..KDH20#,22#200408-200705

main11705-30030i1KDFTV,2KDFTV..KDH20#,211,22#200706

11711BEARING, CRANKSHAFT

main11701-30020-02i2KDFTV..KDH20#,22#200408-200706

main11701-30020-03i2KDFTV..KDH20#,22#200408-200706

main11701-30020-04i2KDFTV..KDH20#,22#200408-200706

main11701-30020-05i2KDFTV..KDH20#,22#200408-200706

main11701-30020-06i2KDFTV..KDH20#,22#200408-200706

main11701-30030-02i1KDFTV,2KDFTV..KDH20#,211,22#200706

main11701-30030-03i1KDFTV,2KDFTV..KDH20#,211,22#200706

main11701-30030-04i1KDFTV,2KDFTV..KDH20#,211,22#200706

main11701-30030-05i1KDFTV,2KDFTV..KDH20#,211,22#200706

main11701-30030-06i1KDFTV,2KDFTV..KDH20#,211,22#200706

main11701-75031-01i1TRFE,2TRFE..TRH200,21#,22#200408-201312

sub11701-75032

main11701-75031-02i1TRFE,2TRFE..TRH200,21#,22#200408-201312

sub11701-75032

main11701-75031-03i1TRFE,2TRFE..TRH200,21#,22#200408-201312

sub11701-75032

13011RING SET, PISTON

main13011-30031i2KDFTV..KDH20#,22#200408-200709

main13011-30090i1KDFTV..KDH20#,211,22#200709-200906

sub13011-30150

main13011-30150i1KDFTV..KDH20#,211,22#200906-201008

main13011-30160i1KDFTV..KDH20#,211,22#201008-201312

main13011-75100i1TRFE..TRH200200408-201312

main13011-75110i2TRFE..TRH21#,22#200408-201312

main13013-30031i2KDFTV..KDH20#,22#200408-200709

main13013-30090i1KDFTV..KDH20#,211,22#200709-200905

sub13013-30150

main13013-30150i1KDFTV..KDH20#,211,22#200906-201008

main13013-30160i1KDFTV..KDH20#,211,22#201008-201312

main13013-75100i1TRFE..TRH200200408-201312

main13013-75110i2TRFE..TRH21#,22#200408-201312

main13014-30090i1KDFTV..KDH20#,211,22#200709-200905

sub13014-30150

main13014-30150i1KDFTV..KDH20#,211,22#200906-201008

main13014-30160i1KDFTV..KDH20#,211,22#201008-201312

main13015-30090i1KDFTV..KDH20#,211,22#200709-200905

sub13015-30150

main13015-30150i1KDFTV..KDH20#,211,22#200906-201008

main13015-30160i1KDFTV..KDH20#,211,22#201008-201312

13041BEARING, CONNECTING ROD

main13041-30020-02i2KDFTV..KDH20#,22#200408-200706

main13041-30020-03i2KDFTV..KDH20#,22#200408-200706

main13041-30020-04i2KDFTV..KDH20#,22#200408-200706

main13041-30020-05i2KDFTV..KDH20#,22#200408-200706

main13041-30020-06i2KDFTV..KDH20#,22#200408-200706

main13041-30030-02i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

main13041-30030-03i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

main13041-30030-04i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

main13041-30030-05i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

main13041-30030-06i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

main13041-75030-04i1TRFE..TRH200200408-200603

sub13041-75050

main13041-75030-05i2TRFE..TRH21#,22#200408-200603

sub13041-75050

main13041-75030-06i2TRFE..TRH21#,22#200408-200603

sub13041-75050

main13041-75040-04i2TRFE..TRH21#,22#200408-200507

sub13041-75050

main13041-75040-05i2TRFE..TRH21#,22#200408-200507

sub13041-75050

main13041-75040-06i2TRFE..TRH21#,22#200408-200507

sub13041-75050

main13041-75050-04i1TRFE,2TRFE..TRH200,21#,22#200603-201312

sub13041-75052

main13041-75050-05i1TRFE,2TRFE..TRH200,21#,22#200603-201312

sub13041-75052

main13041-75050-06i1TRFE,2TRFE..TRH200,21#,22#200603-201312

sub13041-75052

13101PISTON SUB-ASSY, W/PIN

main13101-30031-01i2KDFTV..KDH20#,22#200408-200709

sub13101-30081

main13101-30031-02i2KDFTV..KDH20#,22#200408-200709

sub13101-30081

main13101-30031-03i2KDFTV..KDH20#,22#200408-200709

sub13101-30081

main13101-30130-01i1KDFTV..KDH20#,211,22#200709-201008

main13101-30130-02i1KDFTV..KDH20#,211,22#200709-201008

main13101-30130-03i1KDFTV..KDH20#,211,22#200709-201008

main13101-30170-01i1KDFTV..KDH20#,211,22#201008-201312

sub13101-30172

main13101-30170-02i1KDFTV..KDH20#,211,22#201008-201312

sub13101-30172

main13101-30170-03i1KDFTV..KDH20#,211,22#201008-201312

sub13101-30172

main13101-75120i1TRFE..TRH200200408-201312

main13101-75130i2TRFE..TRH21#,22#200408-201312

main13103-30031i2KDFTV..KDH20#,22#200408-200709

sub13103-30081

main13103-30130i1KDFTV..KDH20#,211,22#200709-201008

main13103-30170i1KDFTV..KDH20#,211,22#201008-201312

main13103-75120i1TRFE..TRH200200408-201312

main13103-75130i2TRFE..TRH21#,22#200408-201312

main13104-30130i1KDFTV..KDH20#,211,22#200709-201008

main13104-30170i1KDFTV..KDH20#,211,22#201008-201312

main13105-30130i1KDFTV..KDH20#,211,22#200709-201008

main13105-30170i1KDFTV..KDH20#,211,22#201008-201312

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main90520-37014i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13201ROD SUB-ASSY, CONNECTING

main13201-30020i1KDFTV..KDH20#,211,22#200709-200908

sub13201-30021

main13201-30021i1KDFTV..KDH20#,211,22#200908-201312

sub13201-30051

main13201-30030i2KDFTV..KDH20#,22#200408-200709

sub13201-30031

main13201-79455i1TRFE..TRH200200408-200603

sub13201-79476

main13201-79476i1TRFE..TRH200200801-201312

sub13201-79477

main13201-79476i1TRFE..TRH200200603-200801

sub13201-79477

main13201-79575i2TRFE..TRH21#,22#200408-200603

sub13201-79576

main13201-79576i2TRFE..TRH21#,22#200603-201003

sub13201-79577

main13201-79605i1TRFE..TRH200201003-201108

sub13201-79476

main13201-79615i2TRFE..TRH21#,22#201003-201312

sub13201-79616

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73143i1KDFTV..KDH20#,211,22#200709-200908

sub90999-73156

main90999-73144i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main90999-73145i2KDFTV..KDH20#,22#200408-200709

sub90999-73157

main90999-73156i1KDFTV..KDH20#,211,22#200908-201312

13202BEARING SET, CONNECTING ROD

main13204-30020i2KDFTV..KDH20#,22#200408-200705

main13204-30030i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

main13204-75030i1TRFE..TRH200200408-200603

sub13204-75050

main13204-75040i2TRFE..TRH21#,22#200408-200601

sub13204-75050

main13204-75050i1TRFE,2TRFE..TRH200,21#,22#200603-201312

sub13204-75052

main13205-30020i2KDFTV..KDH20#,22#200408-200705

main13205-30030i1KDFTV,2KDFTV..KDH20#,211,22#200706-201312

13265BOLT, CONNECTING ROD

main13265-28010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

sub13265-28020

main13265-67021i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13405FLYWHEEL SUB-ASSY

main13405-30030i2KDFTV..KDH20#..5F200408-200709

sub13405-30031

main13405-67030i1KDFTV,2KDFTV..KDH20#,211,22#..4FC200408

main13405-67060i1KDFTV..KDH20#..5F200709

main13405-75050i1TRFE..TRH200..5F200408-201312

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1KDFTV,2KDFTV..KDH20#,211,22#..4FC200408

main90250-08054i1TRFE..TRH200..5F200408-201312

main90250-10192i1KDFTV,2KDFTV..KDH20#..5F200408

13405BBOLT, FLYWHEEL SETTING

main90105-13010i1KDFTV,2KDFTV..KDH20#..5F200408

main90910-02116i1TRFE..TRH200..5F200408-201312

13411CRANKSHAFT

main13401-30010i1KDFTV..KDH20#,211,22#200709

main13401-30020i2KDFTV..KDH20#,22#200408-200709

sub13401-30060

main13401-75010i1TRFE..TRH200200408-201312

sub13401-0C030

main13401-75020i2TRFE..TRH21#,22#200408-201003

sub13401-75021

main13401-75030i1TRFE..TRH200201003-201108

sub13401-75010

main13401-75040i2TRFE..TRH21#,22#201003-201312

sub13401-75041

13453GEAR, FLYWHEEL RING

main13453-20010i1TRFE..TRH200..5F200408-201312

main13453-67030i1KDFTV,2KDFTV..KDH20#,211,22#200408

13471PULLEY, CRANKSHAFT

main13408-30020i2KDFTV..KDH20#,22#200408-200708

sub13408-30021

main13408-30021i1KDFTV,2KDFTV..KDH20#,211,22#200708-201312

main13408-75040i1TRFE,2TRFE..TRH200,21#,22#200408-200704

sub13408-75050

main13408-75050i1TRFE,2TRFE..TRH200,21#,22#200704-201312

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main95161-30516i1KDFTV,2KDFTV..KDH20#,211,22#200408

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i1TRFE,2TRFE..TRH200,21#,22#200408-201312

main90119-18003i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13508FPIN, STRAIGHT(FOR IDLE GEAR)

main90250-05027i2KDFTV..KDH20#,22#200408-201312

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-30020i1KDFTV..KDH20#,211,22#200709-201312

main13521-67020i2KDFTV..KDH20#,22#200408-200709

main13521-75020i1TRFE,2TRFE..TRH200,21#,22#200408-201312

sub13521-75021

13525GEAR, IDLE, NO.1

main13508-30011i2KDFTV..KDH20#,22#200408-200709

main13508-67011i1KDFTV..KDH20#,211,22#200709-201312

13538GEAR, IDLE SUB, NO.2

main13538-67900i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13538AWASHER, WAVE

main90206-69001i2KDFTV..KDH20#,22#200408-201312

13538CRING, SHAFT SNAP

main90520-58002i2KDFTV..KDH20#,22#200408-201312

13572PLATE, IDLE GEAR THRUST

main13572-67041i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13578SPRING, IDLE GEAR

main13578-67010i2KDFTV..KDH20#,22#200408-201312

13581SHAFT, IDLE GEAR, NO.1

main13581-67041i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13613EGEAR, INJECTION

main13603-30020i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

13613FBEARING, RADIAL BALL

main90363-67001i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-30010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201008

main19315-30020i1KDFTV..KDH20#,211,22#201008-201312

3502

9010510398

main90105-10398

9017614003

main90176-14003

9030123005

main90301-23005

9151160632

main91511-60632

37 parts on this diagram · 4 diagrams in section
