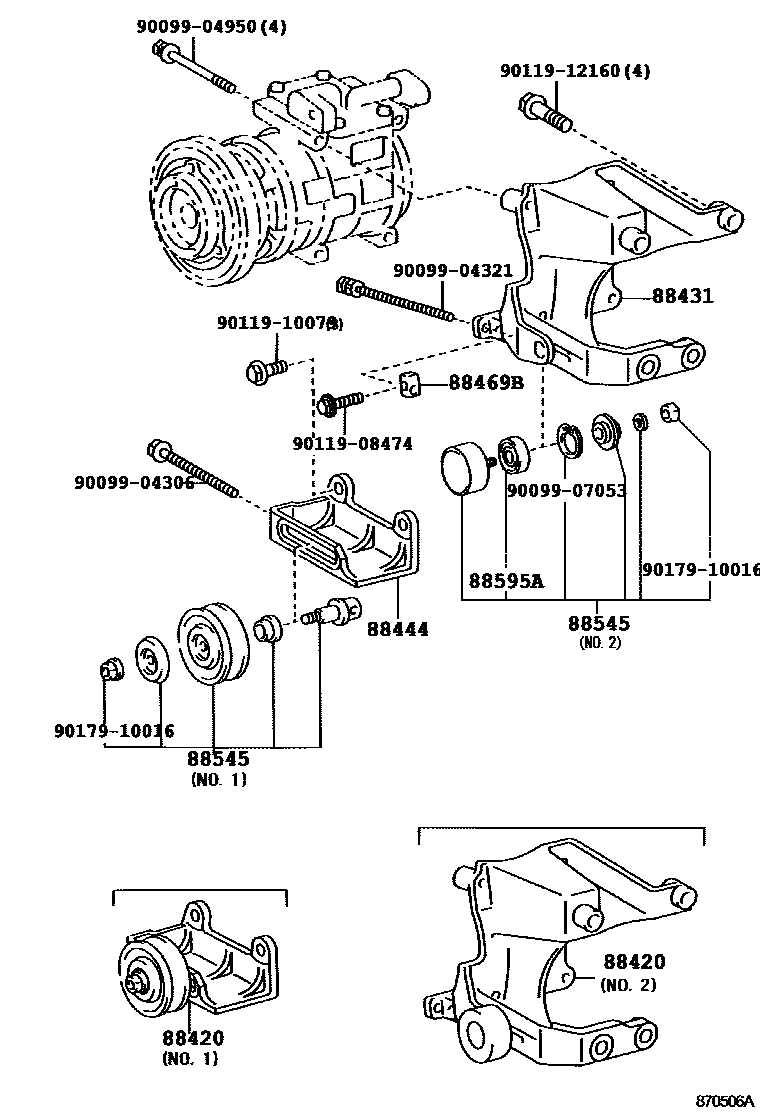

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1DEALER OPT 0002 1MAKER OPT 0003 1 0004 1 0005 1 0006 1

88420PULLEY ASSY, IDLE, W/BRACKET

main88420-26190iRZH10#,11#,183..05S,07S,08S,10S199907-200308

main88420-26200iLH162,17#,182,188..SGL,SGLE199907-200408

main88420-26210iLH113..V1..SRF..4D..06S..DX199308-199508

main88420-26220iLH119..05S199308-199508

main88420-26350iLH162,172..SGL199808-199907

main88420-26360iLH178..SGL199808-199907

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-25290iTRH102,112,12#200308-200501

main88431-26350iLH184199907-200408

main88431-26360iLH168,178,184,186,188199907-200408

main88431-60220iKZH10#,11#,120,13#199907-200408

main88431-95J00iRZH10#,11#,12#,133199608-199907

main88431-95J01iLH113..SG;LH113..SP..5F;LH100,102,103,110,115,120,123,125,140198908-199808

main88431-95J02iLH107,109,117,119,129..SG198908-199808

88444BRACKET, IDLE PULLEY

main88444-95J00iLH16#,17#,18#199907-200408

88469BCOLLAR

main88469-30280iLH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#198908-199907

88545PULLEY ASSY, IDLE

main88440-25070iTRH102,112,12#200308-200501

main88440-26070iLH16#,17#,18#199907-200408

main88440-26090iLH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#198908-199907

main88440-26100iRZH10#,11#,12#,18#199907-200308

main88440-26110iKZH10#,11#,12#,13#199706-199907

main88440-60050iKZH10#,11#,12#,13#199308-199706

main88440-95J00iRZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM198908-198910

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10015iLH113,119..SG;LH113..SP..5F;LH162,17#..CD,DX;LH10#,110,115,117,12#,140,168,18#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW198908-199907

9009904306

main90099-04306

9009904321

main90099-04321

9009904950

main90099-04950

9009907053

main90099-07053

9011908474

main90119-08474

9011910079

main90119-10079

9011912160

main90119-12160

9017910016

main90179-10016

14 parts on this diagram · 6 diagrams in section
