HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER--SINGLE(DEALER OPT)0002 1CONDENSER--DUAL(MAKER OPT) 0003 1CONDENSER--DUAL(MAKER OPT) 0004 1CONDENSER--DUAL(DEALER OPT) 0005 1CONDENSER--DUAL(DEALER OPT) 0006 1CONDENSER--SINGLE(MOP) 0007 1CONDENSER--SINGLE(MAKER OPT) 0008 1CONDENSER--SINGLE 0009 1CONDENSER--DUAL 0010 1CONDENSER--DUAL 0011 1CONDENSER--SINLGE(MOP) 0012 1CONDENSER 0013 1CONDENSER 0014 1CONDENSER(DEALER OPT) 0017 1CONDENSER(MAKER OPT) 0021 1CONDENSER 0022 1FRONT PIPING--SINGLE(DEALER O0023 1FRONT PIPING--DUAL 0024 1FRONT PIPING--SINGLE 0025 1FRONT PIPING--DUAL(MAKER OPT)0026 1FRONT PIPING--SINGLE 0027 1FRONT PIPING--DUAL 0028 1FRONT PIPING 0029 1FRONT PIPING 0030 1FRONT PIPING 0031 1FRONT PIPING---SINGLE(DOP) 0032 1FRONT PIPING---DUAL(DOP) 0033 1FRONT PIPING(DOP) 0034 1FRONT PIPING 0036 1FRONT PIPING--SINGLE(DEALER O0038 1FRONT PIPING--DUAL(DEALER OPT0040 1FRONT PIPING 0041 1FRONT PIPING 0042 1FRONT PIPING 0043 1FRONT PIPING--SINGLE(DEALER O0045 1FRONT PIPING--SINGLE(DEALER O0046 1FRONT PIPING--DUAL(DEALER OPT0047 1 0048 1REAR PIPING(DEALER OPT) 0049 1REAR PIPING---TWIN TYPE 0050 1REAR PIPING---TWIN TYPE 0052 1REAR PIPING--SINGLE 0053 1REAR PIPING--DUAL 0054 1REAR PIPING 0055 1REAR PIPING 0056 1REAR PIPING 0057 1REAR PIPING 0059 1REAR PIPING(DEALER OPT) 0061 1REAR PIPING 0062 1REAR PIPING 0063 1REAR PIPING(DEALER OPT) 0064 1COOL BOX PIPING 0065 1COOL BOX PIPING 0066 1COOL BOX PIPING 0067 1

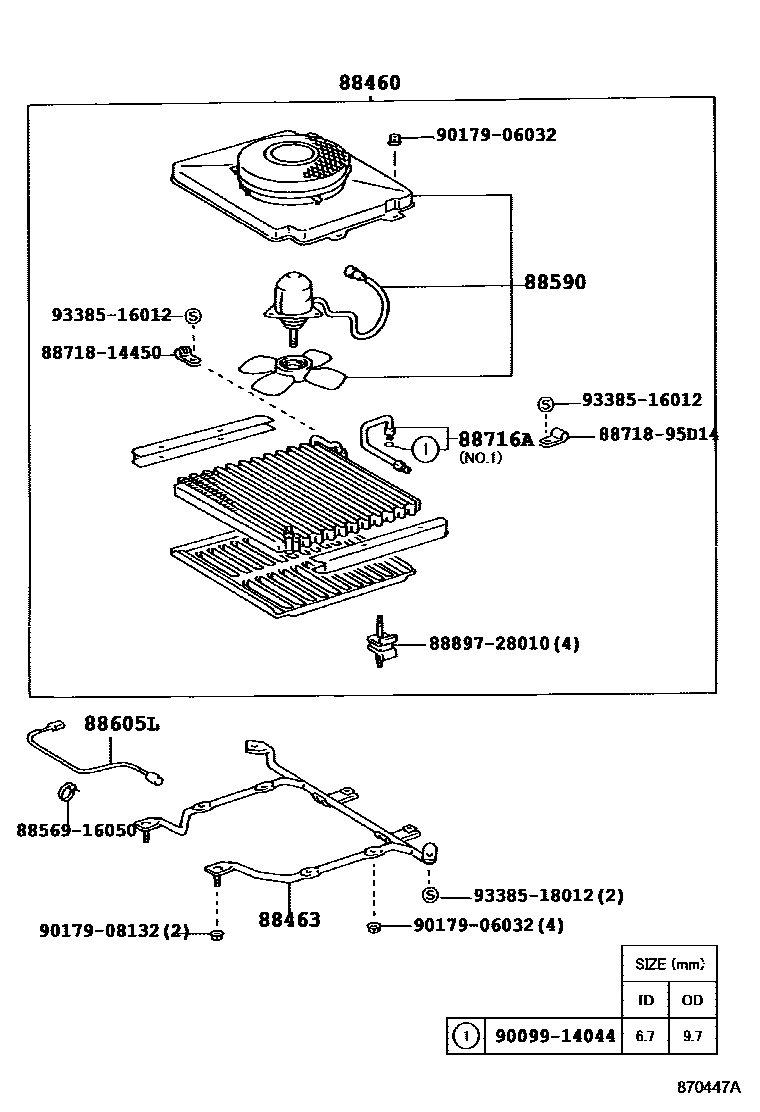

88460CONDENSER ASSY, COOLER

main88450-26010iKZH10#,120..4FC199308-199508

main88460-26070iLH123..4FC;LH113..5D..GL;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);LH119,123,125,RZH112,124..09S,15S199308-199508

main88460-26140iRZH100,101;KZH10#,11#,12#..5F199308-199508

main88460-26160iLH10#,11#,123,129,RZH102,112199308-199508

main88460-26210iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main88460-26270iRZH101,111;KZH10#,11#,126..5F199508-199608

main88460-26310iRZH102,112,124..(COM,V1)..DX199508-199808

main88460-26320iLH119..CD;LH113..SP..4FC199508-199808

main88460-26350iRZH101,111;KZH10#,11#,126..5F199608-199808

main88460-26380iLH10#,11#,12#..(COM,V1)..(DX,GL,SGL)199608-199808

main88460-26390iLH11#..SG;LH10#,123,129;LH113..SP..5F199608-199808

main88460-26510iKZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S)199808-200501

main88460-26530iLH188..DX199907-200408

main88460-26530iLH162,182,188..SGLE;LH172..(05S,09S)..(DX,SGLE);LH168,178,RZH102,112,18#,TRH102,112,122..CD,DX,SGLE199808-200501

main88460-95J01iLH129;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)198908-199308

main88460-95J15iLH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S198908-199308

sub88460-95J22

main88460-95J17iLH100,120..4FC198908-199308

main88460-95J22iLH140;LH110,123..09S198908-199308

main88460-95J23iLH120198910-199308

88463BRACKET, COOLER CONDENSER, NO.1

main88463-26060iRZH100,101,111;KZH10#,11#,12#..5F199308-199808

main88463-26080iKZH10#,11#,120,13#..4FC199308-199608

main88463-26090iRZH102,112,124,133199308-199808

main88463-26190iKZH10#,11#,120,13#..4FC199608-199907

main88463-26200iLH10#,12#;LH11#..SG;LH113..SP..5F199608-199808

main88463-95J21iLH100,120..4FC198908-199308

main88463-95J26iLH113..5D..GL;RZH112..09S..DX;LH102,107,109,119,140,RZH101,102,112..GL,SCL,SCM,SCMM,SGL,SW;LH113,RZH100..(V1,WG)..(MRF,SMRF,SRF)..4D..(05S,06S,07S,08S,09S);LH100,11198908-199308

main88463-95J27iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S198908-199308

88590BLOWER ASSY, W/SHROUD

main88590-26030iLH100..CTM..TDE;LH100,120..(HRF,MRF)..4FC199008-199308

main88590-26040iLH100..5F..TD;LH107,120,RZH100,101..07S,08S,10S199008-199308

sub88590-95J01

main88590-26050iLH129;LH113,RZH112..09S..5F..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,123,125,RZH12#..(HRF,SRF)..(09S,10S,15S)199010-199308

main88590-26050iLH129;LH113,RZH112..09S..5F..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,123,125,RZH12#..(HRF,SRF)..(09S,10S,15S)199005-199308

main88590-26050iLH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,123,125,RZH12#..(HRF,SRF)..(09S,10S,15S)199102-199308

main88590-26050iLH119..05S199103-199308

main88590-26060iLH100..MRF..4FC199008-199010

sub88590-95J05

main88590-26070iLH100,120..4FC199010-199308

main88590-26080iLH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10199508-199608

main88590-26080iLH119..09S;LH123..4FC;LH113..5D..GL;LH10#,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;KZH10#,11#,12#,LH123,125,RZH112,124..(08S,09S,10S,15S)..5F;LH113,RZH100..(V1,WG)..199308-199808

main88590-26090iKZH10#,11#,120,13#..4FC199308-199608

main88590-26100iLH11#..SG;LH113..SP..5F;LH10#,123,129,RZH102,112199308-199808

main88590-26110iLH10#,11#,12#..(COM,V1)..(DX,GL,SGL)199608-199808

main88590-26120iLH11#..SG;LH10#,123,129;LH113..SP..5F199608-199808

main88590-26130iKZH10#,11#,120,13#..4FC199608-199907

main88590-26140iKZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S)199808-200501

main88590-26150iLH172,182..HRF..06S199907-200408

main88590-26150iLH162,182,188..SGLE;LH172..(05S,09S)..(DX,SGLE);LH168,178,RZH102,112,18#,TRH102,112,122..CD,DX,SGLE199808-200501

main88590-26160iKZH10#,11#,120,13#199907-200408

main88590-95J00iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S198908-199308

main88590-95J01iLH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5198908-199010

main88590-95J01iLH113..V1..SRF..4D..06S..DX199005-199308

main88590-95J02iLH100..4FC198908-199008

main88590-95J05iLH100..4FC198908-199008

88605LHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-26030iLH113..5D..GL;RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,110,115,117,1198908-199308

main88605-26190iLH182,RZH18#..06S;LH16#,17#,184,RZH102,112,TRH102,112,122..CD,DX,GL199808-200501

main88605-26190iLH11#..SG;LH113..SP..5F;LH10#,123,129,RZH102,112199308-199808

main88605-26200iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199408

main88605-26200iLH10#,11#,RZH102,112..GL199408-199508

main88605-26200iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199408

main88605-26250iLH113..V1..5D..DX;LH10#,119,RZH102,112..V1..06S;LH123,RZH112,124..(09S,15S)..4FC199308-199808

main88605-26250iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199808

main88605-26530iKZH10#,RZH100,101..07S,08S199404-199408

main88605-26570iLH11#..SG;LH113..SP..5F;LH10#,123,129,RZH102,112199308-199808

main88605-26780iKZH10#,RZH100,101..07S,08S199408-199808

sub88648-26030

main88605-26790iLH119,123..09S..4FC;LH113..V1..5D..5F..DX;LH113..V1..4FC..(DX,SGL);LH113,123..HRF..4D..06S..5F;KZH10#,11#,12#,RZH112..(V1,WG)..(06S,07S,08S,09S,10S);KZH13#,LH10#,11199408-199808

sub88648-26040

main88605-26790iLH123..06S..4FC;LH119,123..09S..5F;LH113..V1..SRF..4D..5F..DX199408-199808

sub88648-26040

main88605-2F470iKZH11#199907-200108

main88605-2F520iLH162,17#,182,188,RZH102,112,183,TRH102,112,122..SGLE200012-200501

main88605-95N22iRZH102,112,122198908-199308

main88605-95N31iLH100,107,RZH100,101..SCL198908-199308

main88605-95N32iLH120..GCGE,GCGN199010-199308

main88605-95N32iLH120,129..5F;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,R198908-199308

main88605-95N33iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S198908-199308

main88648-26030iKZH106..4FC;KZH100,RZH101199808-199907

main88648-26040iLH186,RZH12#199808-200501

main88648-26040iLH168,178..5D..DX;LH172,TRH112..SRF..DX;LH172,RZH112,TRH112..HRF..4D;LH162,182,188,RZH18#,TRH102,122..DX199907-200501

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-26060iLH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCM198908-199308

main88716-26240iKZH10#,120..4FC199308-199508

main88716-26260iLH103,11#,123,129,RZH10#,112;KZH10#,11#,12#,LH109,125,RZH124..5F199308-199508

main88716-26260iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199508

main88716-26340iLH119..05S;LH113..V1..SRF..4D..06S..DX199308-199404

main88716-26340iKZH10#,11#,12#,RZH100,101199308-199404

main88716-26380iLH11#..SG;LH113..SP..5F;LH10#,12#,RZH102,112,124199308-199608

main88716-26570iLH119..05S;LH113..V1..SRF..4D..06S..DX199404-199508

main88716-26570iKZH10#,11#,12#,13#,RZH100,101,111199404-199608

main88716-26730iKZH10#,11#,120,13#..4FC199508-199608

main88716-26740iRZH102,112,124,133199508-199808

main88716-26840iKZH106..5F199808-199907

main88716-2F130iKZH10#,11#,120,13#..4FC199608-199907

main88716-2F140iRZH101,111;KZH10#,11#,126..5F199608-199808

main88716-2F210iLH11#..SG;LH113..SP..5F;LH10#,12#,RZH102,112,124,133199608-199808

main88716-2F220iLH10#,12#;LH11#..SG;LH113..SP..5F199608-199808

main88716-2F230iKZH10#,11#,12#,13#,RZH101,111199608-199808

main88716-2F480iKZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133199808-200501

main88716-2F500iKZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133199808-200501

main88716-2F500iRZH101;KZH100..5F199808-199809

main88716-2F620iKZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S199808-199809

sub88716-2F500

main88716-2F630iKZH10#,11#,120,13#199907-200408

main88716-2F670iRZH101,111199907-200208

main88716-2F740iKZH10#,11#,120,13#,RZH101,111199907-200408

main88716-95J27iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S198908-199308

main88716-95J75iLH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S198908-199308

main88716-95N10iLH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH100,110,115,117,120,125,140,RZH110,124..5F;LH102,107,109,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH113,RZH100..198908-199308

main88716-95N16iLH100,120..4FC198908-199308

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8871895D14PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D14

8889728010VALVE, COOLER MAGNET

main88897-28010

9009914044

main90099-14044

9017906032

main90179-06032

9017908132

main90179-08132

9338516012

main93385-16012

9338518012

main93385-18012

14 parts on this diagram · 55 diagrams in section
