HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1���� 0006 1���� 0007 1��-���(1) 0008 1��-���(1) 0009 1��-���(1) 0010 1�������� �-,��-���(1) 0012 1��-���(2) 0014 1��-���(2) 0015 1��-��� 0016 1��-��� 0017 1��-���(1) 0019 1 0020 1 0021 1������� 0022 1 0023 1 0024 1���������� 0025 1��-���(1) 0026 1��-���(1) 0028 1��-���(2) 0029 1��-���(2) 0032 1��-��� 0033 1��-��� 0034 1��-��� ����� ���� 0035 1 0036 1 0037 1 0038 1��-��� 0039 1��-��� 0040 1

1603

8712

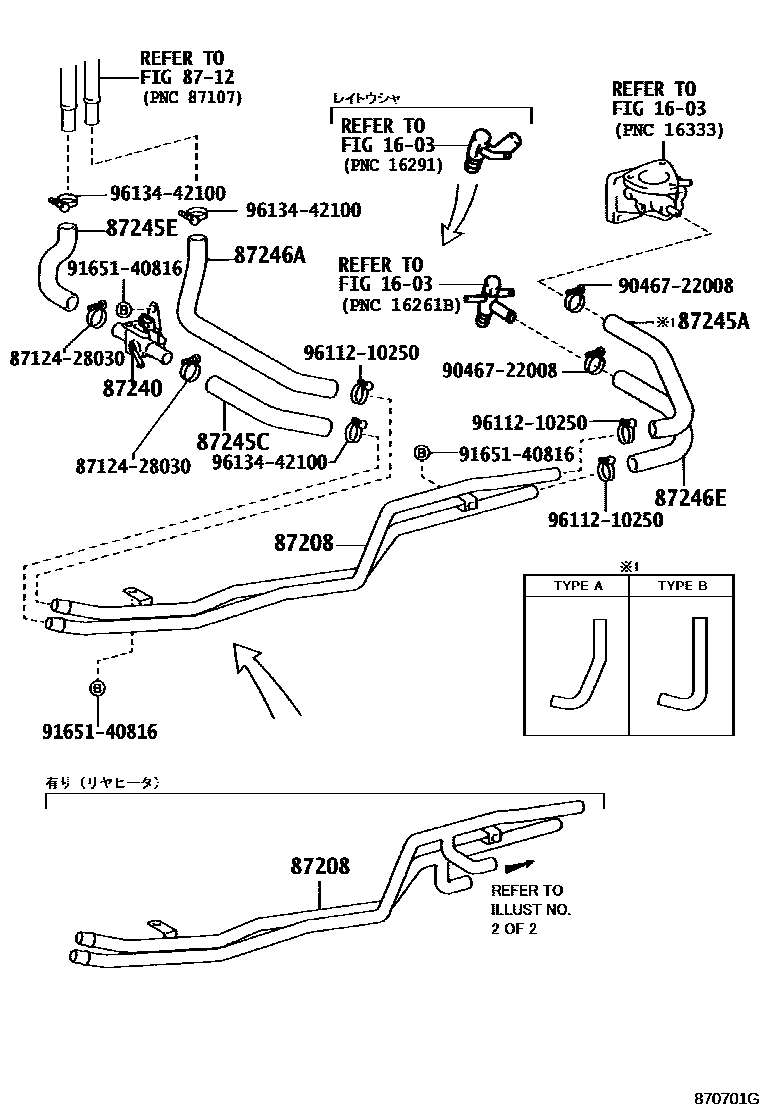

87208PIPE SUB-ASSY, HEATER WATER

main87208-26760iLH16#,17#,18#..CD,DX199808-199907

main87208-26770iLH16#,17#,18#..SG199808-199907

main87208-26810iLH16#,17#,18#..CD,DX200001-200005

main87208-26810iLH162,172..V1..5D..5F200008-200408

main87208-26850iLH16#,17#,18#..SG200001-200408

main87208-26A10iTRH102,112..CD,DX,SGLE200308-200501

main87208-26A30iTRH12#200308-200501

main87208-2F300iLH16#,17#,18#..CD,DX199907-200001

main87208-2F310iLH16#,17#,18#..SG199907-200001

main87208-2F340iLH16#,17#,18#..CD,DX,SGLE200006-200408

main87208-95J49iLH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S198908-199808

main87208-95J50iLH125..DX;LH100,102,109,11#,123,129,140..HRF,SRF198908-199808

87240VALVE ASSY, HEATER WATER

main87240-26060iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

main87240-26090iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main87240-95J08iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

87245AHOSE, HEATER WATER, INLET A

main87245-26180iKZH10#,11#,12#,13#199308-199907

main87245-26A10iTRH102,112,12#200308-200501

main87245-2F450iKZH10#,11#,120,13#199907-200408

main87245-2F470iLH16#,17#,18#200001-200408

main87245-2F640iLH162,172..5F..CD200008-200408

main87245-95J46iLH16#,17#,18#199907-200001

main87245-95J46iLH10#,11#,12#,140,16#,17#,18#198908-199907

main87245-95J48iRZH10#,11#,12#,18#198908-200308

87245CHOSE, HEATER WATER ,INLET C

main87245-26110iLH120..DX,GCGN199205-199308

main87245-26200iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

sub87245-26270

main87245-2F440iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main87245-95J50iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

87245EHOSE, HEATER WATER, INLET E

main87245-26290iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-199907

main87245-2F180iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main87245-95J49iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

sub87245-30810

87246AHOSE, HEATER WATER, OUTLET A

main87245-26220iKZH10#,11#,12#,13#199308-199907

main87245-2F460iKZH10#,11#,120,13#199907-200408

main87245-2F490iLH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main87245-95J05iLH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-199907

87246EHOSE, HEATER WATER, OUTLET E

main87245-26190iKZH10#,11#,12#,13#199308-199907

main87245-2F490iKZH10#,11#,120,13#199907-200408

main87245-2F630iLH16#,17#,18#200001-200006

sub87245-95J47

main87245-2F650iLH162,172..V1..5D..5F200008-200408

main87245-95J47iLH10#,11#,12#,140,16#,17#,18#198908-200408

main99556-30300iRZH10#,11#,12#198908-199508

main99556-30300iRZH10#,11#,124,133199508-199808

main99556-30300iRZH10#,11#,12#,133199808-200104

main99556-30300iRZH10#,11#,12#,18#200104-200308

8712428030CLAMP, HEATER

main87124-28030

9046722008

main90467-22008

9165140816

main91651-40816

9611210250

main96112-10250

9613442100

main96134-42100
