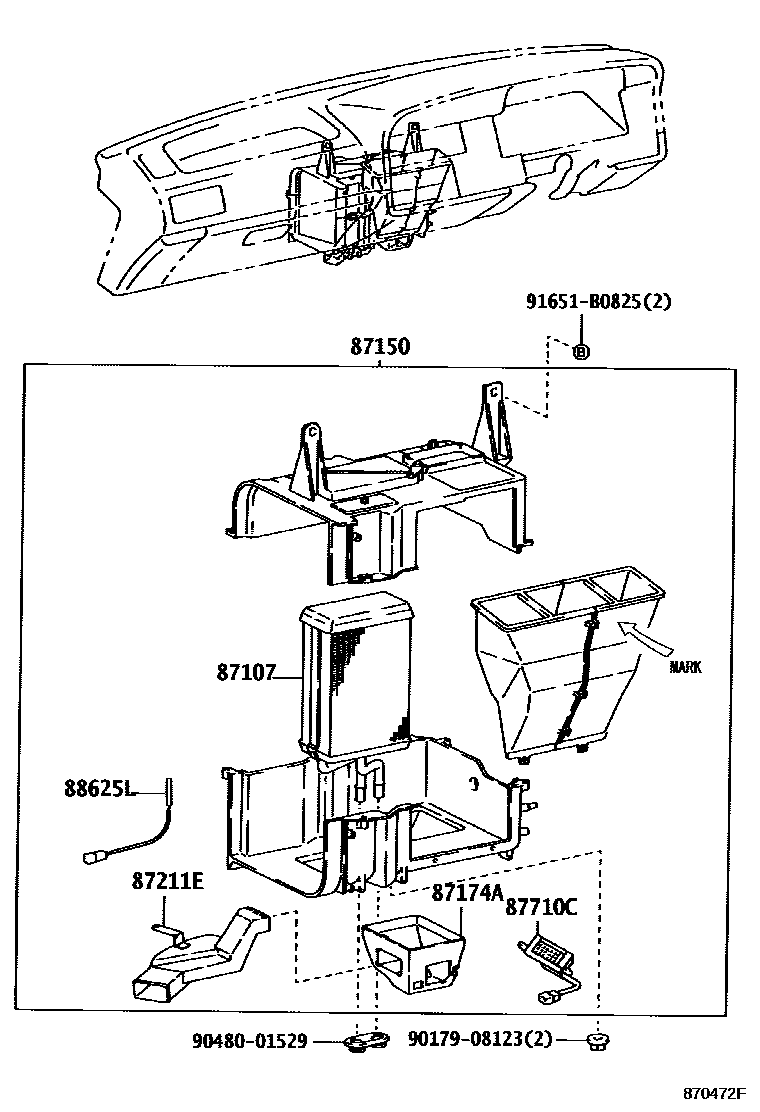

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1�����-� ���� 0002 1�����-� ����(�-�����) 0004 1�����-� ���� 0006 1�����-� ���� 0007 1�����-� ���� 0008 1�����-� ����(�-�����) 0010 1�-����� ��-� 0011 1���-�---���������� 0013 1���-�---���������� 0016 1���-�---��� ���� 0017 1���-�---��� ���� 0019 1���-�---��� ����

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-26080iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..HRF,SMRF,SRF199808-199907

main87107-26100iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main87107-95J11iRZH101..SMRF;KZH10#..(08S,09S)..4FC;KZH10#..(SMRF,SRF)..5F;KZH11#,12#,13#,LH10#,11#,12#,140,RZH100,102,11#,12#,133..03S,05S,06S,08S,09S,10S,15S198908-199608

main87107-95J12iKZH10#,RZH101..SCL198908-199808

87150RADIATOR ASSY, HEATER

main87150-26010iLH123..09S..4FC;LH113..V2..4D..4FC..DX;LH113,RZH112..HRF..4FC;LH11#..V1..5D..4FC..DX;RZH102,112,124..(COM,V1)..4FC199608-199808

main87150-26090iKZH10#,RZH101..4FC..SCMM199504-199507

main87150-26180iKZH10#,RZH101..MRF199608-199808

main87150-26260iRZH10#,11#,12#,18#..DX,GL,SCM,SGLE199907-200308

main87150-26290iLH162,17#,RZH102,112..SGL199907-200108

main87150-26300iRZH112,125,18#..(03S,05S,06S,15S)..(CD,DX,SGLE);LH16#,17#,18#,RZH102,111,124,TRH102,112,12#..CD,DX,GL,SGLE199907-200501

main87150-26310iKZH10#,RZH101..MRF199808-199907

main87150-26340iKZH10#,RZH101..MRF199907-200408

main87150-26350iKZH10#,11#,120,13#..HRF,SMRF,SRF199907-200408

main87150-26360iKZH10#..MRF199907-200408

main87150-26390iLH162,17#,RZH102,112,TRH102,112..SGL200108-200408

main87150-26400iLH162,17#,RZH102,112,TRH102,112..SGL200108-200408

main87150-95J07iLH100,102,107,113,119,RZH100,101..CTM,SCM,SCMM,SGL198908-199005

main87150-95J08iLH113..V1..SRF..4D..06S..DX199005-199205

main87150-95J09iLH113..V1..SRF..4D..06S..DX199008-199205

main87150-95J12iLH120199008-199010

main87150-95J13iKZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S199308-199608

main87150-95J14iLH100,107,RZH100,101..SCL198908-199308

87174AGUIDE, AIR HEATER

main87174-95J06iLH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL198908-199008

main87174-95J07iRZH112..CD,DX,GL;RZH102..V1..(03S,06S);KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,122,124,133198908-199907

87211EDUCT, AIR

main87211-95J13iRZH102,112,12#,18#199907-200308

87710CHEATER ASSY, QUICK

main87710-26040iKZH10#,11#,120,13#199907-200408

88625LTHERMISTOR, COOLER

main88790-26010iRZH102,112,12#,18#..DX,GL,SGL199907-200308

9017908123

main90179-08123

9048001529

main90480-01529

91651B0825

main91651-B0825

9 parts on this diagram · 12 diagrams in section
