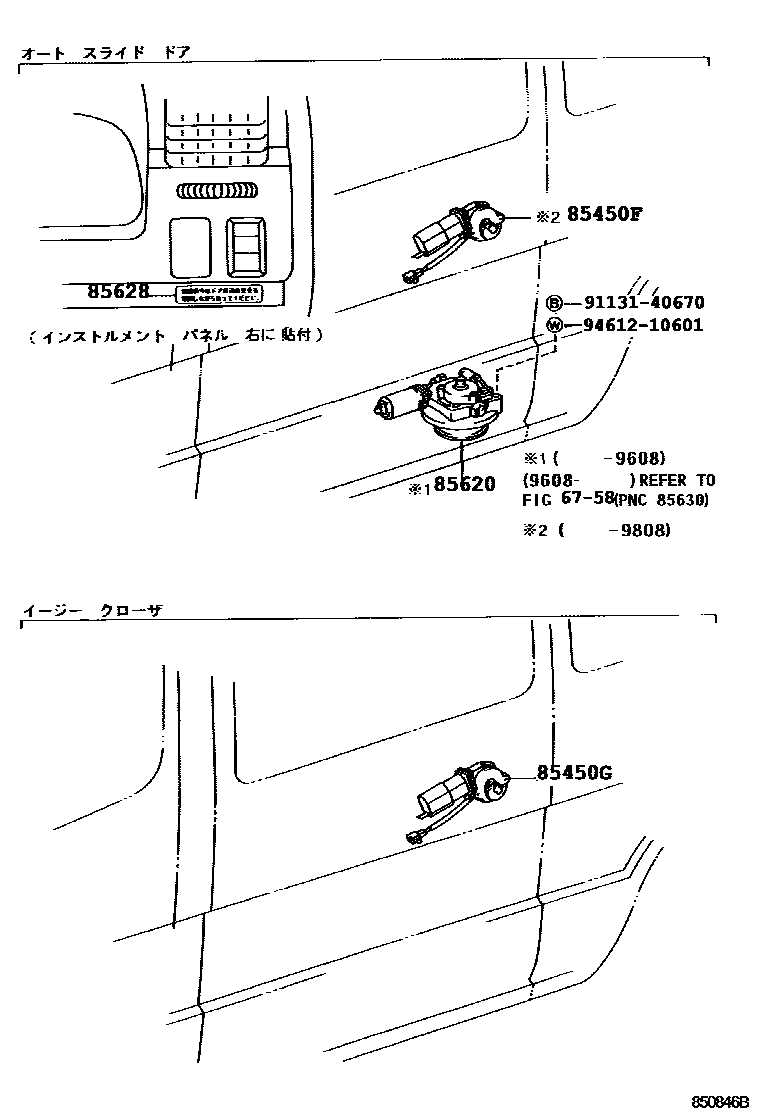

AUTOMATIC DOOR

6758

85450FMOTOR ASSY, DOOR CONTROL

main85450-26030iLH100,107,110,115,117,120,125,140,RZH100,101,110,124199105-199205

main85450-26050iLH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM199205-199808

main85450-95J01iLH100,107,110,115,117,120,125,140,RZH100,101,110,124198908-199105

sub85450-26030

85450GMOTOR ASSY, DOOR CONTROL

main85450-26030iLH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..05S,07S,08S199105-199205

main85450-26050iKZH11#..4FC;KZH10#,12#,13#,LH103,11#,RZH101..(03S,05S,07S,08S,10S)..(DX,GCGE,GCGN,SCL,SCM,SCMM,SGL)199205-199808

main85450-95J01iLH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,119,RZH100,101..05S,07S,08S198908-199105

sub85450-26030

85620MOTOR ASSY, AUTOMATIC DOOR REGULATOR

main85620-95J00iLH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM198908-199608

85628LABEL, AUTOMATIC DOOR, NO.1

main85628-26010iKZH10#,12#,LH125,RZH101,124..07S,08S,10S,15S199508-199608

sub85628-26011

main85628-26011iTRH124199608-200501

sub85628-58010

main85628-95J00iKZH10#,12#,LH125,RZH100,101,124..07S,08S,10S,15S198908-199508

9113140670

main91131-40670

9461210601

main94612-10601

7 parts on this diagram · 1 diagram in section
