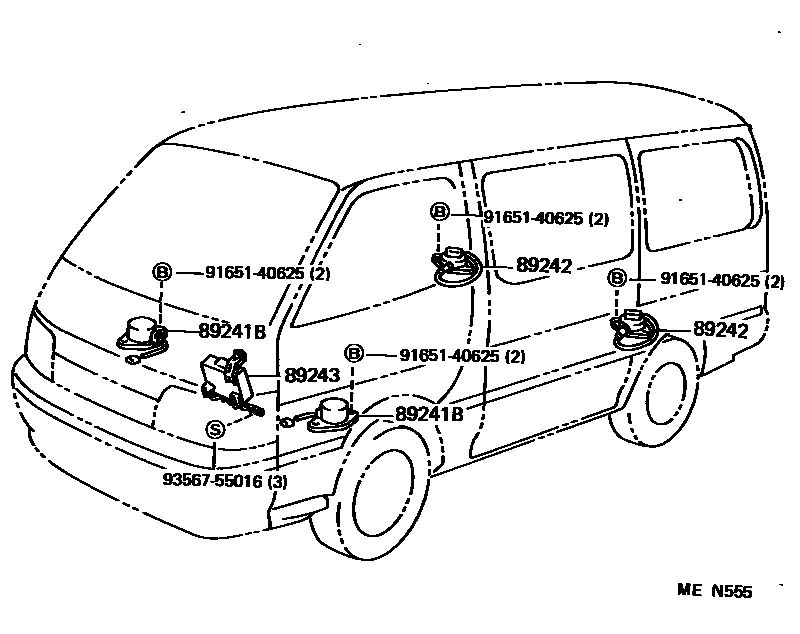

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

89241BACTUATOR, ABSORBER CONTROL

main89241-26010×2iLH100,107,RZH100,101..07S,08S198908-199308

main89241-26022×2iKZH10#,RZH100,101..07S,08S199308-199808

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-26010×2iLH100,107,RZH100,101..07S,08S198908-199308

main89242-26020×2iKZH10#,RZH100,101..07S,08S199308-199808

89243COMPUTER, ABSORBER CONTROL

main89243-26010iLH100,107,RZH100,101..07S,08S198908-199002

main89243-26011iLH100,107,RZH100,101..07S,08S199002-199308

main89243-26020iKZH10#,RZH100,101..07S,08S199308-199508

main89243-26021iKZH10#,RZH101..07S,08S199508-199808

9165140625

main91651-40625

9356755016

main93567-55016

5 parts on this diagram · 2 diagrams in section
