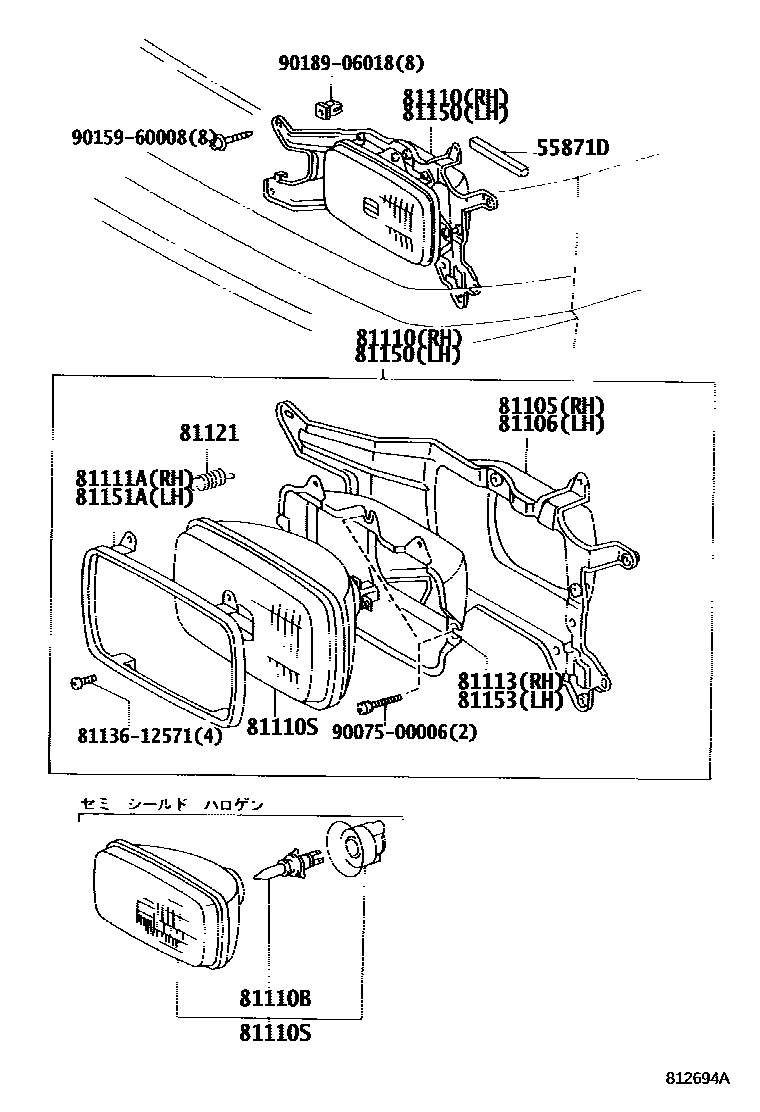

HEADLAMP

0001 1��������� 0002 1 0003 1��(��������) 0004 1��(��������) 0005 1 0006 1��(��������) 0007 1

55871DSEAL, AIR DUCT

main55871-26010iLH10#,11#,12#,16#,17#,18#,RZH102,112,12#199608-199907

main55871-95J04iLH100,107,120,RZH100,101..HRF,MRF,SMRF198908-199308

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-95J35iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-95J35iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

81110HEADLAMP ASSY, RH

main81110-26060iLH10#,11#,12#,RZH102,112,124199308-199808

main81110-26061iLH16#,17#,18#,RZH102,112,12#199808-199907

main81110-26070iLH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133199508-199608

main81110-26170iKZH10#,11#,12#,13#,RZH101,111,133199608-199907

main81110-95J35iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW198908-199308

sub81130-95J35

sub90981-04H21

sub90981-04H22

main81110-95J36iLH102,109,113,119,125,RZH102,112..GL,SGL198908-199308

main81110-95J45iLH100,120,RZH100..(HRF,SMRF)..(CTM,DX)198908-199308

main81110-95J46iRZH101;LH100,107,120,RZH100..07S,08S,10S198908-199005

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iKZH10#,11#,12#,13#,RZH101,111,133199608-199808

main90981-13055×2iLH16#,17#,18#,RZH102,112,12#199808-199907

main90981-13058×2iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

main90981-22004×2iLH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..HRF,MRF,SMRF199005-199103

81110SSEALED BEAM UNIT, NO.1

main90981-04027×2iLH102,109,113,119,125,RZH102,112..GL,SGL198908-199308

main90981-04029×2iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW198908-199308

sub90981-04H21

sub90981-04H22

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-16020iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-16220iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

81121SPRING, HEADLAMP TENSION

main81121-16020×2iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

81150HEADLAMP ASSY, LH

main81150-26060iLH10#,11#,12#,RZH102,112,124199308-199808

main81150-26061iLH16#,17#,18#,RZH102,112,12#199808-199907

main81150-26070iLH123..06S;KZH10#,11#,12#,13#,LH129,RZH101,111,133199508-199608

main81150-26180iKZH10#,11#,12#,13#,RZH101,111,133199608-199907

main81150-95J35iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW198908-199308

sub81170-95J35

sub90981-04H21

sub90981-04H22

main81150-95J36iLH102,109,113,119,125,RZH102,112..GL,SGL198908-199308

main81150-95J45iLH100,120,RZH100..(HRF,SMRF)..(CTM,DX)198908-199308

main81150-95J46iRZH101;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100..07S,08S,10S199005-199103

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-16020iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-16220iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF198908-199308

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9007500006

main90075-00006

9015960008

main90159-60008

9018906018

main90189-06018

16 parts on this diagram · 7 diagrams in section
