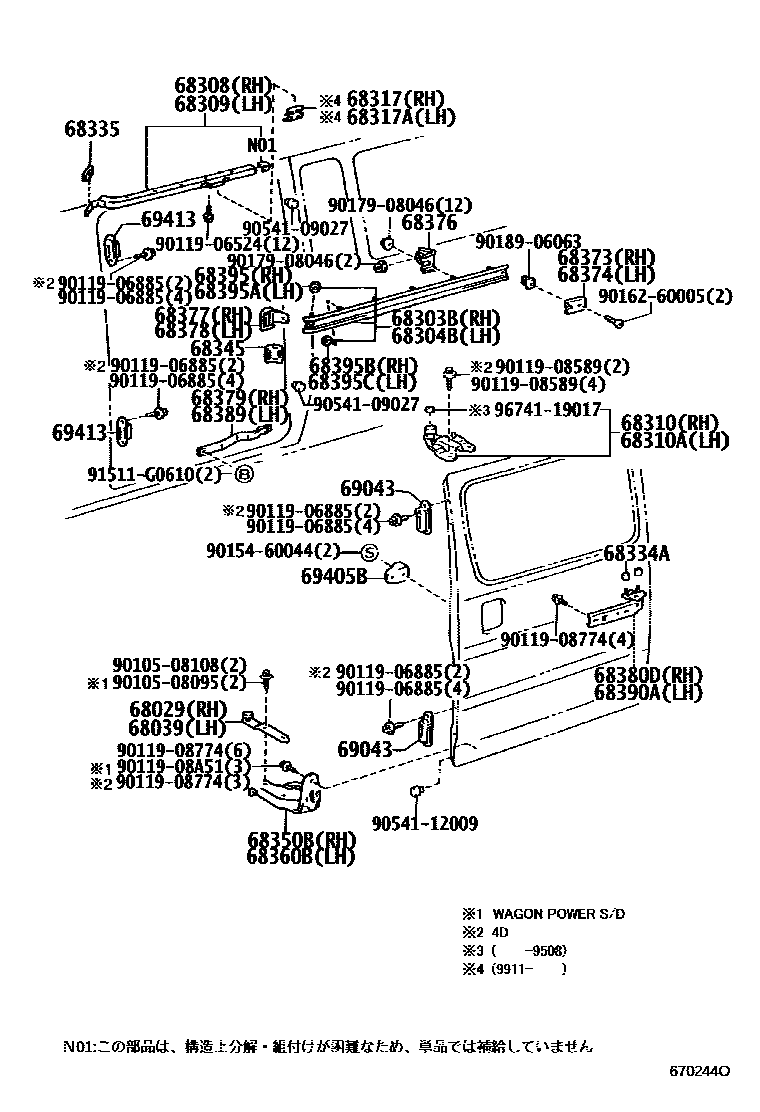

SLIDE ROLLER & RAIL

0001 1 0002 1 0003 1

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-26010iLH102,103,109,113,119,RZH102,112..5D199205-199608

sub68029-26040

main68029-26040iLH16#,17#,RZH102,112..5D199608-200202

sub68029-26050

main68029-26050iLH16#,17#,RZH102,112,TRH102,112..5D200202-200408

main68029-95J00iLH102,109,113,115,119,123,125,129,RZH102,112,12#198908-199205

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68029-26010iKZH13#,LH102,103,109,113,115,119,123,125,129,RZH102,112,12#,133199205-199608

sub68029-26040

main68029-26020iKZH10#,11#,12#,RZH101,111199205-199608

sub68029-26050

main68029-26020iKZH10#,11#,12#,LH100,107,110,115,117,120,125,140,RZH100,101,110,111,124199205-199608

sub68029-26050

main68029-26040iKZH13#,LH16#,17#,18#,RZH102,112,12#,18#199608-200202

sub68029-26050

main68029-26050iRZH102..CD,DX,SGLE;KZH13#,LH16#,17#,18#,RZH112,12#,18#199808-200501

main68029-26050iKZH10#,11#,12#,RZH101,111199608-199808

main68029-95J00iLH102,109,113,115,119,123,125,129,RZH102,112,12#198908-199205

main68029-95J01iLH115,125,RZH124198908-199205

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26070iLH16#,17#,RZH102,112,TRH102,112..5D199806-200408

main68303-95J02iLH102,103,109,113,119,RZH102,112..5D198908-199806

sub68303-26070

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26030-B0iKZH10#,RZH101..SCL199608-199806

WARM GRAY PEARL ME.,2BY

sub68304-26031

main68304-26030-E0iKZH10#,RZH101..SCL199608-199806

FLAXEN MM,2AX

sub68304-26031

main68304-26031-A1iKZH10#,RZH101..SCMM199907

main68304-26031-A1iKZH10#,RZH101..4FC..SCMM199808-199907

main68304-26031-A2iKZH10#,RZH101..SCL199907-200408

WHITE PM.,2GC

main68304-26031-B0iKZH10#,RZH101..SCL199806-200408

WARM GRAY PEARL ME.,2BY

main68304-26031-E0iKZH10#,RZH101..SCL199806-199907

FLAXEN MM,2AX

main68304-26080iKZH10#,11#,LH16#,17#,RZH10#,11#,TRH102,112..CD,DX,SCM,SCMM,SGL,SGLE199806-200408

main68304-26090iKZH120,13#,LH18#,RZH12#,18#,TRH12#199806-200501

main68304-95J03iKZH10#,11#,LH10#,11#,140,RZH10#,11#198908-199806

sub68304-26080

main68304-95J04iKZH12#,13#,LH12#,RZH12#,133198908-199806

sub68304-26090

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26010iLH16#,17#,RZH102,112,TRH102,112..5D199911-200408

main68308-95J00iLH102,103,109,113,119,16#,17#,RZH102,112..5D198908-199911

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26010iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199911-200501

main68309-95J00iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#198908-199911

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-26030iLH10#,11#,16#,17#,RZH102,112..5D199508-200408

main68310-95J03iLH102,109,113,119,RZH102,112..5D198908-199201

sub68310-95J04

main68310-95J04iLH102,109,113,119,RZH102,112..5D199201-199508

sub68310-26030

68310AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68310-26030iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199508-200501

main68310-95J03iLH102,109,113,115,123,125,129,RZH102,112,12#198908-199201

sub68310-95J04

main68310-95J04iKZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#198908-199508

sub68310-26030

68317STOPPER, SLIDE DOOR UPPER RAIL, RH

main68317-26010iLH16#,17#,RZH102,112,TRH102,112..5D199911-200408

68317ASTOPPER, SLIDE DOOR UPPER RAIL

main68317-26010iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199911-200501

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700iLH10#,11#,123,125,129,140,RZH10#,11#,12#198908-200408

main68334-95700iLH102,109,113,119,RZH102,112..5D198908-200501

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

68345COVER, SLIDE DOOR CENTER RAIL

main68345-95J01-02iLH110,115,117,120,125,RZH110,124..DX198908-199308

NEW MAROON,TRIM3#

sub68345-95J01

main68345-95J01-03iLH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..4D..(03S,06S,09S)198908-199308

GRAY,TRIM1#

sub68345-95J01

main68345-95J01-B0iLH10#,11#,RZH102,112..5D199308-199508

BLUISH GRAY,TRIM1#

sub68345-95J01

main68345-95J01-C0iLH103,11#..4D..(CD,DX,GL);KZH11#,LH109,12#,RZH102,11#,124,133..4D..(CD,DX)199508-200501

BLACK,TRIM1#

sub68345-95J01

main68345-95J01-E0iLH113..HRF..4D;KZH11#,LH12#,RZH124..DX199308-199508

ANTELOPE,TRIM4#

sub68345-95J01

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-26020iLH16#,17#,RZH102,112..5D199205-200202

sub68350-26060

main68350-26060iLH16#,17#,RZH102,112,TRH102,112..5D200202-200408

main68350-95J04iLH102,109,113,119,RZH102,112..5D198908-199205

sub68350-26020

sub68029-26010

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-26030iKZH13#,LH102,103,109,113,115,119,123,125,129,16#,17#,18#,RZH102,112,12#,133199205-200202

sub68360-26050

main68360-26050iRZH102..CD,DX,SGLE;KZH13#,LH16#,17#,18#,RZH112,12#,18#199205-200501

main68360-26050iLH115,125,RZH124199205-199808

main68360-95J05iLH115,125,RZH124198908-199205

sub68360-26050

sub68029-26020

main68360-95J06iLH102,109,113,115,119,123,125,129,RZH102,112,12#198908-199205

sub68360-26030

sub68029-26010

main68360-95J07iLH100,107,110,RZH100,101,110198908-199006

sub68360-95J05

68373MOULDING, SLIDE RAIL END, RH

main68373-26060iLH16#,17#,RZH102,112,TRH102,112..5D199806-200408

main68373-95J02iLH102,103,109,113,119,RZH102,112..5D198908-199806

68374MOULDING, SLIDE RAIL END, LH

main68374-26030-B0iKZH10#,RZH101..SCL199608-199806

WARM GRAY PEARL ME.,2BY

sub68374-95J01

main68374-26030-E0iKZH10#,RZH101..SCL199608-199806

FLAXEN MM,2AX

sub68374-95J01

main68374-26031-A1iKZH10#,RZH101..SCMM199907

sub68374-26060

main68374-26031-A1iKZH10#,RZH101..4FC..SCMM199808-199907

sub68374-26060

main68374-26031-A2iKZH10#,RZH101..SCL199907-200408

WHITE PM.,2GC

sub68374-26060

main68374-26031-B0iKZH10#,RZH101..SCL199806-200408

WARM GRAY PEARL ME.,2BY

sub68374-26060

main68374-26031-E0iKZH10#,RZH101..SCL199806-199907

FLAXEN MM,2AX

sub68374-26060

main68374-26060iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..03S,05S,06S,08S,09S,10S,15S199806-200501

main68374-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S198908-199806

68376BRACKET, SLIDE DOOR CENTER RAIL

main68376-95J00iLH102,103,109,113,119,16#,17#,RZH102,112..5D198908-200501

main68376-95J00iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-95J02iLH102,103,109,113,119,16#,17#,RZH102,112..5D198908-200408

68378PAD, SLIDE DOOR RAIL

main68378-95J02iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

68379SPRING, SLIDE DOOR CATCH, RH

main68379-95J01iLH16#,17#,RZH102,112,TRH102,112..5D198908-200408

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26020iLH10#,11#,16#,17#,RZH102,112..5D199608-200408

main68380-95J04iLH102,103,109,113,119,RZH102,112..5D198908-199608

sub68380-26020

68389SPRING, SLIDE DOOR CATCH, LH

main68389-95J01iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main68389-95J02iLH100,107,110,115,117,125,RZH100,101,110,124..CTM,DX,GL,SCL,SCM,SCMM198908-200408

main68389-95J02iLH184,186,RZH125199808-200501

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26030iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199608-200501

main68390-95J02iLH10#,11#,123,125,129,140,RZH10#,11#,12#198908-199608

sub68390-26030

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-26010iLH102,103,109,113,119,16#,17#,RZH102,112..5D198908-200408

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

68395BPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iLH102,103,109,113,119,16#,17#,RZH102,112..5D198908-200408

68395CPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iKZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#198908-200501

69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE

main69043-95J00iKZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..4D198908-200501

main69043-95J00iLH100,107,120,RZH100,101..HRF,MRF,SMRF;LH102,109,113,119,125,RZH102,112..4D..(GL,SGL)198908-199907

main69043-95J00iKZH11#199308-199608

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95J04iLH100,107,110,115,117,125,RZH100,101,110,124..CTM,DX,GL,SCL,SCM,SCMM198908-200501

main69405-95J05iLH16#,17#,RZH102,112,TRH102,112..5D198908-200501

69413STOP, SLIDE DOOR DOWN MALE

main69416-26010iLH16#,17#,RZH102,112..5D199808-200501

main69416-26010iLH113..SRF..4D;KZH10#,11#,12#,13#,LH10#,119,12#,RZH10#,11#,124,133..4D199608-199907

main69416-95J01iLH10#,11#,RZH102,112..5D198908-199608

main69416-95J01iLH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..4D..(CD,DX,SW)198908-199205

9010508095

main90105-08095

9010508108

main90105-08108

9011906524

main90119-06524

9011906885

main90119-06885

9011908589

main90119-08589

9011908774

main90119-08774

9011908A51

main90119-08A51

9015460044

main90154-60044

9016260005

main90162-60005

9017908046

main90179-08046

9018906063

main90189-06063

9054109027

main90541-09027

9054112009

main90541-12009

91511G0610

main91511-G0610

9674119017

main96741-19017

46 parts on this diagram · 3 diagrams in section
