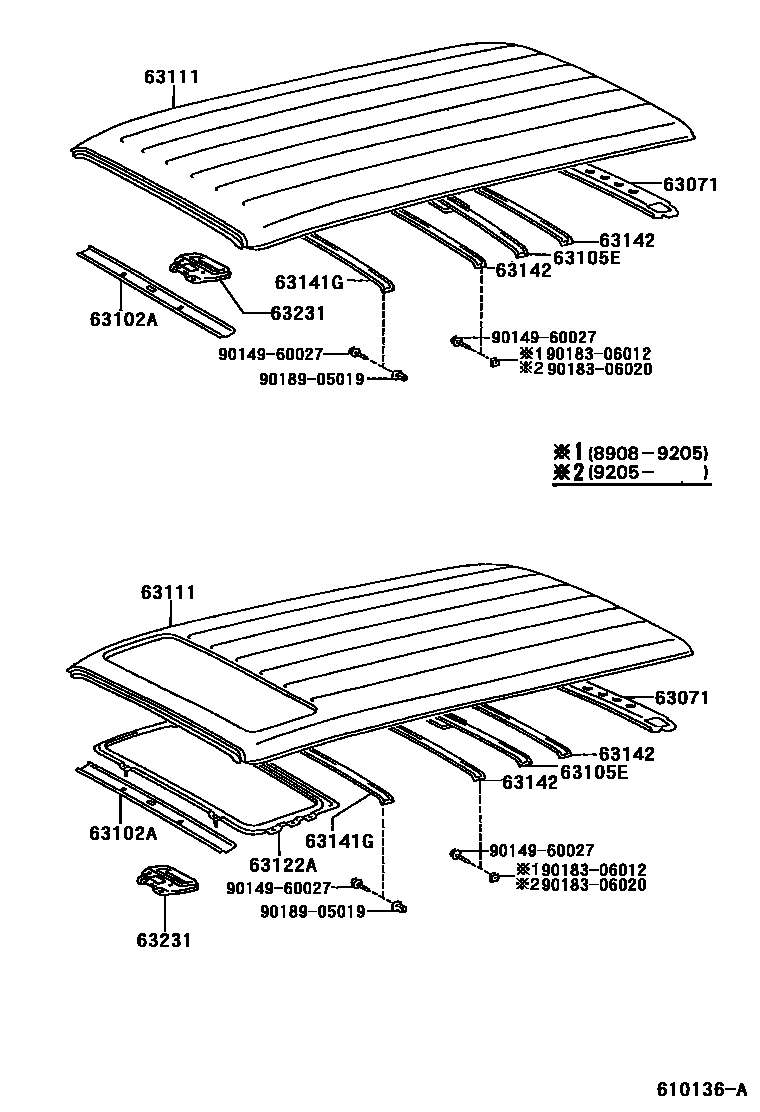

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1���������- OR ��-����� ����� 0009 1��(���� ����-�) 0010 1 0011 1 0012 1 0013 1

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-26010iLH100,107,RZH100,101..MRF199010-199108

main63071-26020iLH113..V1..SRF..4D..06S..DX199005-199103

main63071-26030iKZH11#,LH16#,17#,RZH102,11#,TRH102,112..SRF..(CD,DX,SGLE)199907-200408

main63071-26040iKZH11#199907-200408

main63071-26050iLH107..SCMM199108-199308

main63071-26060iLH113..V1..SRF..4D..06S..5F..DX199108-199508

main63071-26070iLH119..05S;LH113..V1..SRF..4D..06S..DX199108-199508

main63071-26071iKZH11#199907-200108

main63071-26080iLH100,107,RZH100,101..MRF199108-199308

main63071-26081iKZH10#,RZH100,101..MRF199308-199808

main63071-26110iKZH10#,RZH100,101..SMRF199308-199808

main63071-26200iKZH10#,RZH101..MRF199907-200408

main63071-26210iLH178..05S..SGL;KZH10#,LH162,172,RZH10#,112,TRH102,112..SCM,SGL199907-200408

main63071-95J05iKZH13#,LH172,18#,RZH112,12#,18#,TRH112,12#..HRF199907-200501

main63071-95J07iLH100,102,109,11#,140,RZH100,102,11#..SRF..(CD,DX,GL,SW)198908-199108

main63071-95J08iLH113..V1..SRF..4D..06S..5F..DX199001-199108

main63071-95J09iLH100,102,107,113,119,RZH100,101..CTM,SCM,SGL198908-199108

main63071-95J10iLH107..SCMM198908-199108

main63071-95J11iLH100,RZH100,101..MRF198908-199010

mainC370195B02iKZH13#199508-199907

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-26080iKZH10#..MRF199907-200408

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95J06iLH10#,11#,123,129,16#,17#,182,188,RZH102,112..CD,DX199608-199907

main63102-95J07iLH113..V1..SRF..4D..06S..DX199005-199508

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-26010iKZH11#199907-200108

main63105-26050iLH120..DX199205-199308

main63105-26060iKZH10#,RZH100,101..CTM199308-199608

main63105-26900iLH16#,17#,RZH102,112,TRH102,112..SRF..(CD,DX,SGLE)199907-200408

main63105-26901iKZH100,11#,RZH100,111..DX199308-199907

main63105-26902iKZH11#199907-200408

main63105-26903iKZH10#,RZH101..SCM199907-200408

main63105-26905iLH162,17#,RZH102,112..05S199808-199907

main63105-95J09iKZH13#199708-199907

sub63105-95901

main63105-95J10iLH184,186..DX199907-200108

main63105-95J12iLH125,RZH124,133198908-199608

main63105-95J13-08iLH102,109,110,113,119,140,RZH102,112..SRF..(03S,06S,09S)198908-199308

IVORY,TRIM1#

main63105-95J16-08iLH110,115,117,RZH110..DX198908-199308

IVORY,TRIM3#

main63105-95J17-08iLH102,113,119..SGL198908-199308

IVORY,TRIM1#

main63105-95J18-08iLH100,RZH100,101..CTM198908-199308

IVORY,TRIM1#

main63105-95J19-08iLH100,107,RZH100,101..SCM198908-199308

IVORY,TRIM1#,3#

mainC507395B04iKZH12#199508-199608

63111PANEL, ROOF

main63111-26010iLH113..V1..SRF..4D..06S..DX199005-199103

main63111-26011iLH119..05S;LH113..V1..SRF..4D..06S..DX199205-199508

main63111-26012iKZH11#199907-200108

main63111-26080iLH120..GCGE,GCGN199205-199308

main63111-26090iKZH12#199308-199907

main63111-26370iKZH11#,LH17#,RZH11#,TRH112..SRF199907-200408

main63111-95J13iKZH10#,RZH101..MRF199907-200408

main63111-95J14iLH102,103,109,RZH102..GL,SGL198908-199508

main63111-95J15iLH113,119,RZH112..GL,SGL198908-199508

main63111-95J16iLH16#,RZH102,TRH102199907-200408

sub63111-26360

main63111-95J17iKZH11#,LH11#,17#,RZH11#..SRF198908-199907

main63111-95J18iKZH10#,RZH101..SCM199907-200408

main63111-95J19iLH172,RZH112,TRH112..HRF199907-200408

main63111-95J20iKZH12#,13#,LH12#,18#,RZH12#,133198908-199907

main63111-95J21iLH107..SCMM198908-199308

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-26030iRZH101..MRF199907-200208

main63122-95J01iLH102,103,107,109,113,119,RZH102,112..GL,SCMM,SGL198908-199508

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63043-95J00iKZH10#,RZH100,101..MRF199308-199608

main63141-26030×2iTRH112..SGL,SGLE;KZH11#,LH162,17#,RZH102,11#,TRH102..05S,08S,10S199907-200408

main63141-26900iLH16#,17#,RZH102,112,TRH102,112..SRF..(CD,DX,SGLE)199907-200408

main63141-95J20-08×2iLH102,110,113,119..05S,08S,10S198910-199010

IVORY,TRIM1#

main63141-95J22-08iLH100,102,109,110,113,119,140,RZH100,102,112..SRF..(03S,06S,09S)198908-199308

IVORY,TRIM3#

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-26900×2iKZH11#,LH109,168..5F;LH103,11#,162,17#,RZH102,11#..SRF199508-199907

main63142-95J03-08×2iLH100,102,109,110,113,119,140,RZH100,102,112..SRF..(03S,05S,06S,08S,09S)198908-199308

IVORY,TRIM3#

63231BRACKET, ROOM LAMP

main63231-26010iLH107..SCMM199010-199308

main63231-26020iRZH101..MRF199907-200208

main63231-26080iRZH102,112..SGL200108-200308

main63231-95J02iLH100,RZH100,101..MRF198908-199010

main63231-95J03iLH100,107,RZH100,101..SCM199010-199308

9014960027

main90149-60027

9018306012

main90183-06012

9018306020

main90183-06020

9018905019

main90189-05019

13 parts on this diagram · 11 diagrams in section
