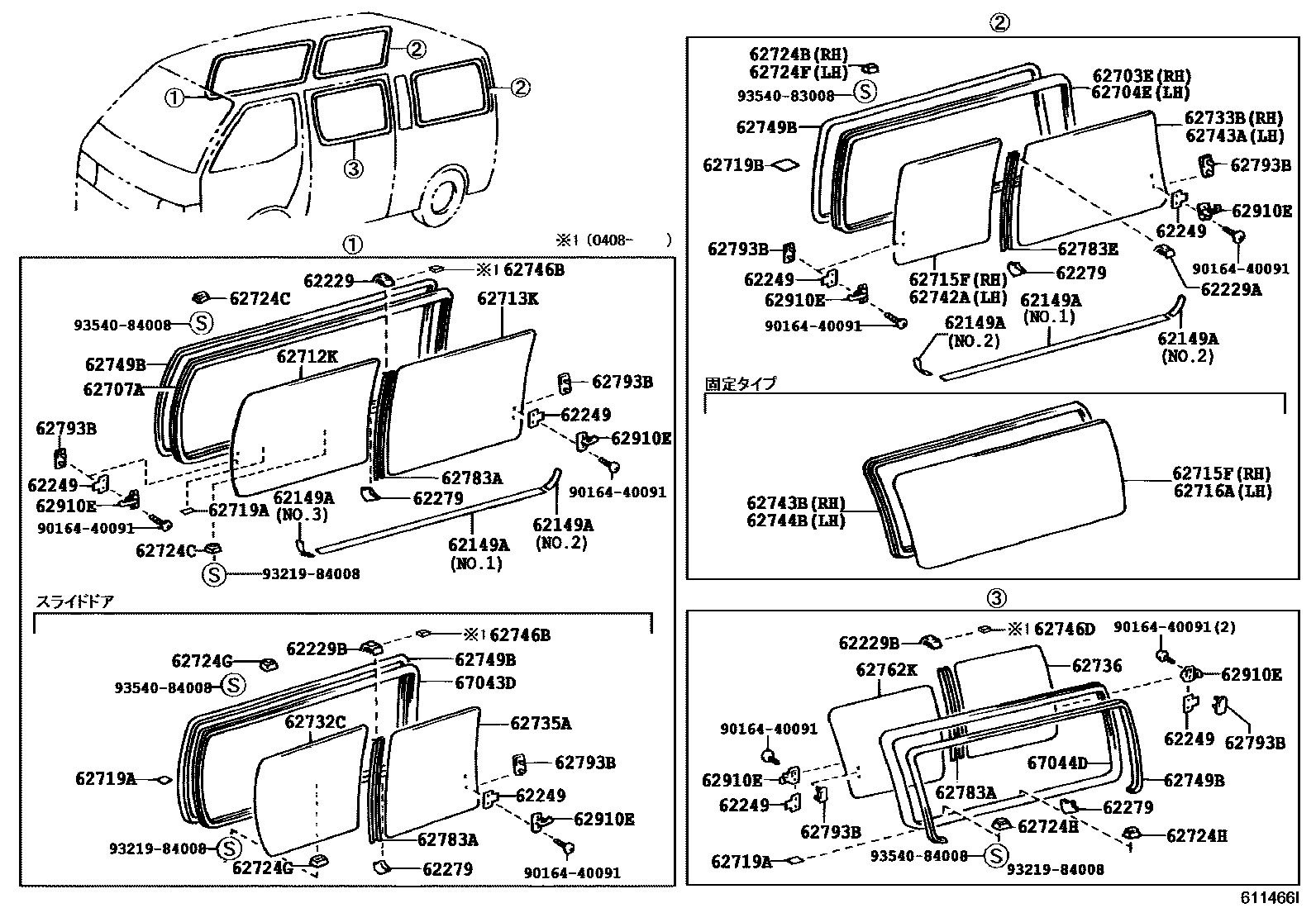

SIDE WINDOW

0001 1 0004 1 0007 1 0008 1 0009 1

62149ATAPE, SIDE WINDOW FRAME

main62149-26040iLH16#,17#,TRH102,112..4D..06S200401-200408

main62149-26050iLH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..SG200106-200501

main62149-26060iLH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..SG200106-200501

main62149-26060iLH16#,17#,TRH102,112..4D..06S200312-200408

main62149-26060iLH182,188,TRH122..06S200312-200501

main62149-26070iLH16#,17#,TRH102,112..4D..06S200312-200401

main62149-26080iLH182,188,TRH122..06S200312-200501

main62149-26090iLH16#,17#,TRH102,112..4D..06S200312-200408

main62149-26090iLH182,188,TRH122..06S200312-200501

62229PACKING, SIDE WINDOW

main62229-26010iTRH12#200408-200501

main62229-95J01iRZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..4D..(CTM,DX,GCGE,GCGN,GL,SGL,SW)199010-200408

62229APACKING, SIDE WINDOW, NO.2

main62229-95J01iLH100,110,115,117,120,125,RZH100,110,124..CTM,DX,GCGE,GCGN,GL199010-200501

main62229-95J01iKZH11#,RZH111199608-200408

62229BPACKING, SIDE WINDOW, NO.3

main62229-26010iTRH12#200408-200501

main62229-95J01iRZH102,112..850K;KZH10#,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..CTM,DX,GL,SGL,SW199010-200408

62249PLATE, SIDE WINDOW, RH

main62249-95700iLH123..4FC;KZH12#,LH125,129,RZH124199308-200501

main62249-95700iLH123,129..06S;LH113..V1..SRF..4D..06S..DX;KZH12#,LH119,125,RZH124..05S,10S,15S199408-199907

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-95J03iRZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW198908-200501

62703EFRAME SUB-ASSY, SIDE REAR WINDOW, RH

main62705-95J04iKZH10#,LH100,RZH100,101..09S198908-199608

main62705-95J07iLH123..4FC;KZH11#,12#,LH125,129,RZH124198908-200501

62704EFRAME SUB-ASSY, SIDE REAR WINDOW, LH

main62706-95J06iKZH11#,RZH111198908-200408

main62706-95J08iLH123..4FC;KZH12#,LH125,129,RZH124198908-200501

62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH

main62707-95J00iRZH102,112..850K;LH102,109,113,119,RZH102,112..4D..(05S,06S)198908-199308

main62707-95J01iKZH11#,LH16#,17#,TRH102,112..4D..(DX,SGL,SGLE)198908-200408

main62707-95J02iLH123,129,RZH122..06S198908-199308

main62707-95J03iLH123..4FC;LH120,123,125,RZH124..09S,10S,15S199207-199308

main62707-95J03iLH123,125,RZH12#..09S,15S198908-200501

62712GLASS, QUARTER WINDOW, LH

main62712-26030iKZH12#199308-200408

main62712-26090iTRH12#..DX,GL199608-200501

main62712-26150iTRH122199608-200501

main62712-95J11iLH123,125,129,RZH12#,133..DX198908-199608

sub62712-26090

main62712-95J12iLH125..GL;KZH13#,LH123,129..03S,06S198908-199608

sub62712-26090

mainC545295B00iLH120..DX199205-199308

mainC545295B01iLH120..GCGE,GCGN199205-199308

62712KGLASS, SIDE WINDOW, FRONT RH

main62711-26050iKZH10#,RZH100,101..08S199408-199608

main62711-26060iKZH10#,RZH100,101..08S199408-199608

main62711-26070iKZH10#,RZH101..4FC..SCMM199504-199507

main62711-26070iKZH10#,RZH101..SCL199408-199608

main62711-26100iLH16#,17#,RZH102,112..4D..06S199608-200408

main62711-26110iRZH111199608-200408

main62711-26120iKZH13#,LH18#..DX,GL199608-200501

main62711-26130iKZH10#,RZH101..08S199608-200408

main62711-26140iKZH10#,RZH101..SCL199608-200408

main62711-26140iKZH10#,RZH101..4FC..SCMM199808-199907

main62711-26150iKZH10#,RZH101..SCMM199608-199708

main62711-26150iKZH10#,RZH101..4FC..SCMM199701-199808

main62711-26180iRZH102,112..4D..06S199608-200408

main62711-26190iLH103,113..4D..(DX,SGL);LH109,119,16#,17#,RZH102,112..4D..SG199608-200408

main62711-26200iLH182,188199608-200501

main62711-26230iKZH10#,RZH101..4FC..SCMM199608-199907

main62711-26290iKZH11#..4FC199808-200408

main62711-26300iLH182,188..06S199808-200501

main62711-26310iLH182,188..06S199808-200501

main62711-95J06iLH102,103,113,RZH102,112..4D..SG..1000K..CD198908-199608

sub62711-26100

main62711-95J08iLH103,113..4D..DX;KZH100,11#,LH109,119,RZH100,102,11#..4D..SG..(CD,DX)198908-199608

sub62711-26110

main62711-95J09iKZH11#..4FC;LH110,117..DX;KZH10#,LH100,102,103,109,113,119,RZH10#,112..4D..(CTM,GL,SGL)198908-199608

sub62711-26110

main62711-95J10iLH110,117..DX198908-199308

main62711-95J11iLH123,125,129,RZH12#,133..DX198908-199608

sub62711-26120

main62711-95J12iLH125..GL198908-199608

sub62711-26120

main62711-95J13iLH107,RZH100..08S198908-199408

main62711-95J14iRZH100..SCL;LH100,RZH101..08S198908-199408

main62711-95J15iLH107,RZH100..08S198908-199408

main62711-95J16iLH100,RZH101..08S198908-199308

sub62711-95J13

main62711-95J17iLH100,107,RZH101..SCL198908-199308

mainC545195B01iKZH12#,LH123,129..06S,10S199205-200408

62713KGLASS, SIDE WINDOW, REAR RH

main62713-26040iLH162,17#,RZH102,112..4D..SG..(CD,DX);KZH11#,LH10#,11#,168,RZH111..4D..(DX,SGL)199608-200408

main62713-26050iRZH12#,18#..DX,GL199608-200501

main62713-26070iLH103,113..4D..(DX,SGL);LH109,119,16#,17#,RZH102,112..4D..SG199608-200408

main62713-26080iRZH18#199608-200501

main62713-26110iKZH11#199808-200408

main62713-95J17iRZH102,112..850K;LH102,109,113,119,RZH102,112..4D..06S..DX198908-199308

sub62713-95J18

main62713-95J18iLH102,109,113,119,RZH102,112..4D..(05S,06S)..(GL,SGL)198908-199308

main62713-95J19iLH103,113..4D..DX;KZH100,11#,LH109,119,RZH100,102,11#..4D..SG..(CD,DX)198908-199608

sub62713-26040

main62713-95J20iKZH11#..4FC;KZH10#,LH103,11#,RZH100,101..4D..(CTM,GL,SGL)198908-199608

sub62713-26040

main62713-95J21iLH110,117..DX198908-199308

main62713-95J22iLH123,129,RZH122..06S198908-199308

main62713-95J23iLH123,125,RZH12#..(09S,15S)..DX198908-199608

sub62713-26050

main62713-95J23iLH123..4FC;LH123,125,RZH124..(09S,15S)..DX199207-199308

sub62713-26050

main62713-95J24iLH120..DX;LH125..GL198908-199608

sub62713-26050

mainC545395B00iKZH12#,LH120..GCGE,GCGN199205-200408

62715FGLASS, SIDE REAR WINDOW, RH

main62715-26010iLH140199010-199308

main62715-26020iLH110..SW199010-199308

main62715-26050iKZH10#,RZH100,101..08S199308-199408

main62715-26060iKZH10#,RZH100,101..08S199308-199408

main62715-26070iKZH10#,RZH101..SCL199308-199408

main62715-26090iKZH10#,RZH100,101..08S199408-199608

main62715-26100iKZH10#,RZH100,101..08S199408-199608

main62715-26110iKZH10#,RZH100,101..08S199408-199608

main62715-26120iKZH10#,RZH101..SCL199408-199608

main62715-26130iKZH10#,RZH100,101..08S199408-199608

main62715-26140iKZH10#,RZH101..SCL199408-199608

main62715-26140iKZH10#,RZH101..4FC..SCMM199504-199507

main62715-26210iLH16#,RZH102,TRH102..DX199608-200408

main62715-26220iLH11#,123,129,182,188..SG;LH17#,RZH112..SG..(CD,DX)199608-200501

main62715-26250iKZH11#,13#,LH12#,184,186,RZH111,12#,133..03S,06S,10S,15S199608-200501

main62715-26260iKZH10#,RZH101..08S199608-200408

main62715-26270iKZH10#,RZH101..08S199608-200408

main62715-26280iKZH10#,RZH101..SCL199608-200408

main62715-26280iKZH10#,RZH101..4FC..SCMM199808-199907

main62715-26290iKZH10#,RZH101..SCMM199808-199907

main62715-26290iKZH10#,RZH101..SCL199608-200408

main62715-26300iKZH10#,RZH101..SCMM199608-199708

main62715-26300iKZH10#,RZH101..4FC..SCMM199701-199808

main62715-26310iKZH10#,RZH101..SCMM199608-199708

main62715-26310iKZH10#,RZH101..4FC..SCMM199701-199808

main62715-26350iLH16#,RZH102,TRH102..SG199608-200408

main62715-26360iLH17#,182,188,RZH112,18#,TRH112,122..SG199608-200501

main62715-26420iKZH10#,RZH101..4FC..SCMM199608-199907

main62715-26430iKZH10#,RZH101..4FC..SCMM199608-199907

main62715-95J05iLH102,103,109,RZH102..SG..(03S,06S)198908-199608

sub62715-26210

main62715-95J06iLH102,103..SGL198908-199608

sub62715-26210

main62715-95J07iLH113,RZH112..09S..DX;LH113,RZH112..SG..(03S,06S);LH119,123,129,RZH122,133..DX,GL198908-199608

sub62715-26220

main62715-95J08iLH113,119,RZH112..(05S,08S,09S)..(GL,SGL)198908-199608

sub62715-26220

main62715-95J12iKZH100,LH100,RZH100..DX198908-199508

sub62715-26240

main62715-95J13iKZH10#,LH100,RZH100,101..CTM198908-199608

sub62715-26240

main62715-95J17iLH123..4FC;LH110,115,117,125,RZH110,124..DX198908-199608

sub62715-26250

main62715-95J18iLH125..GL;LH123,129..06S;KZH11#,13#..4FC198908-199608

sub62715-26250

main62715-95J19iKZH12#198908-200408

main62715-95J20iKZH10#,RZH100,101..08S199308-199408

main62715-95J20iLH107,RZH100..08S198908-199308

main62715-95J21iRZH100..SCL;LH100,RZH101..08S198908-199408

main62715-95J22iKZH10#,RZH100,101..08S198908-199408

main62715-95J23iLH100,RZH101..08S198908-199308

sub62715-95J20

main62715-95J24iLH100,107,RZH101..SCL198908-199308

62716AGLASS, SIDE REAR WINDOW, LH

main62716-26050iKZH10#,RZH100,101..08S199308-199408

main62716-26060iKZH10#,RZH101..SCL199308-199408

main62716-26070iKZH10#,RZH100,101..08S199308-199408

main62716-26090iKZH10#,RZH100,101..08S199408-199608

main62716-26100iKZH10#,RZH100,101..08S199408-199608

main62716-26110iKZH10#,RZH101..SCL199408-199608

main62716-26120iKZH10#,RZH100,101..08S199408-199608

main62716-26130iKZH10#,RZH100,101..08S199408-199608

main62716-26140iKZH10#,RZH101..SCL199408-199608

main62716-26230iLH10#,168..SG;LH162,RZH102..SG..(CD,DX)199608-200408

main62716-26240iLH11#,123,129,182,188..SG;LH17#,RZH112..SG..(CD,DX)199608-200501

main62716-26290iKZH10#,RZH101..08S199608-200408

main62716-26300iKZH10#,RZH101..08S199608-200408

main62716-26310iKZH10#,RZH101..4FC..SCMM199808-199907

main62716-26310iKZH10#,RZH101..SCL199608-200408

main62716-26320iKZH10#,RZH101..4FC..SCMM199808-199907

main62716-26320iKZH10#,RZH101..SCL199608-200408

main62716-26330iKZH10#,RZH101..4FC..SCMM199701-199808

main62716-26330iKZH10#,RZH101..SCMM199608-199708

main62716-26340iKZH10#,RZH101..SCMM199608-199708

main62716-26340iKZH10#,RZH101..4FC..SCMM199701-199808

main62716-26370iLH16#,RZH102,TRH102..SG199608-200408

main62716-26380iLH11#,123,129,17#,182,188,RZH112..SG199608-200501

main62716-26450iKZH10#,RZH101..SCMM199608-199907

main62716-26460iKZH10#,RZH101..4FC..SCMM199608-199907

main62716-95J08iLH102,109,RZH102..SG..(03S,06S)198908-199608

sub62716-26230

main62716-95J09iKZH10#,LH103,RZH100,101..CTM,SGL198908-199608

sub62716-26230

main62716-95J10iLH113,RZH112..09S..DX;LH113,RZH112..SG..(03S,06S);KZH11#,LH119,123,129,RZH111,122,133..DX,GL198908-199608

sub62716-26240

main62716-95J11iLH113,119,RZH112..(05S,08S,09S)..(GL,SGL)198908-199608

sub62716-26240

main62716-95J24iLH100,107,RZH100..08S..(DSL,EFI,TD)198908-199308

main62716-95J24iKZH10#,RZH100,101..08S199308-199408

main62716-95J25iRZH100..SCL;LH100,RZH101..08S198908-199408

main62716-95J26iLH107,RZH100..08S198908-199408

main62716-95J27iLH100,140,RZH100..SRF198908-199308

sub62716-95J28

main62716-95J28iLH100,RZH100,101..CTM198908-199308

main62716-95J29iLH110,117,RZH110198908-199308

main62716-95J30iLH100,RZH101..08S198908-199308

sub62716-95J24

main62716-95J31iLH100,107,RZH101..SCL198908-199308

62719APACKING, SIDE FRONT WINDOW, UPPER

main62719-95J02iKZH120,13#,LH18#,RZH12#,18#,TRH12#199907-200501

main62719-95J02iLH123,125,129,RZH12#198908-199907

main62719-95J02iRZH102,112..850K;KZH10#,11#,LH100,102,103,109,11#,140,RZH10#,11#..CTM,DX,GL,SGL,SW198908-199907

50 X 16.5

main62719-95J02iLH123,125,129,RZH12#198908-199907

main62719-95J03iRZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW198908-199907

30 X 16.5

main62719-95J03iKZH11#,120,13#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..DX,GCGE,GCGN,GL,SGL,SGLE199907-200501

62719BPACKING, SIDE REAR WINDOW, UPPER

main62719-95J02iKZH11#,120,13#,LH184,186,RZH111,12#,TRH124199907-200501

main62719-95J02iLH123..4FC;KZH10#,11#,12#,LH125,129,RZH100,124..06S,09S,10S,15S198908-199907

50 X 16.5

main62719-95J03iLH119..05S;LH123..06S;LH113..V1..SRF..4D..06S..DX;KZH10#,11#,12#,LH125,129,RZH100,124..06S,09S,10S,15S198908-199907

30 X 16.5

main62719-95J03iKZH11#,120,13#,LH184,186,RZH111,12#,TRH124199907-200501

62724BSTOP, SIDE WINDOW GLASS

main62724-95J05iLH125,RZH124..DX198908-199308

62724CSTOP, SIDE FRONT WINDOW GLASS, RH

main62724-95J04iLH103,113..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH109,119,12#,16#,17#,18#,RZH10#,11#,12#,133..4D..SG..(CD,CTM,DX,GCGE,GCGN,GL,SGL)198908-200501

main62724-95J04iLH140;LH123..4FC;LH100,11#,120,123,125,RZH100,11#,124..(08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SGL,SW)199207-199308

main62751-95661iRZH102,112..850K;LH102,109,113,119,123,129,RZH102,112,122..4D..(05S,06S)198908-199308

62724FSTOP, SIDE REAR WINDOW GLASS, LH

main62724-95J04iLH110,115,117..DX198908-200408

main62724-95J05iLH119..05S;LH113..V1..SRF..4D..06S..DX198908-200408

main62724-95J05iKZH12#,13#,LH12#,184,186,RZH12#,133..03S,06S,10S,15S198908-200501

62724GSTOP, SLIDE DOOR WINDOW GLASS, RH

main62724-95J04iLH10#,11#,16#,17#,RZH102,112..5D..06S199308-200408

main62751-95661iLH102,109,113,119,RZH102,112..5D..06S198908-199308

62724HSTOP, SLIDE DOOR WINDOW GLASS, LH

main62724-95J04iLH123..4FC;LH113..09S..GL;LH113,140..(V1,WG)..SRF..4D..(DX,SW);LH100,110,115,117,119,123,125,RZH100,11#,124..(05S,08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW)199010-199308

main62724-95J04iLH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL)198908-200501

main62751-95661iRZH102,112..850K;LH102,109,113,119,123,129,RZH102,112,122..05S,06S198908-199308

62732CGLASS, SLIDE DOOR WINDOW, FRONT RH

main62732-26070iLH10#,11#,16#,17#,RZH102,112..5D..DX199608-200408

main62732-26090iLH16#,17#,RZH102,112,TRH102,112..5D..DX199608-200408

main62732-26100iLH16#,17#,RZH102,112..5D199608-200408

main62732-26110iLH16#,17#,RZH102,112..5D199608-200302

sub62732-26111

main62732-26111iLH16#,17#,RZH102,112,TRH102,112..5D200302-200408

main62732-95J10iLH102,103,109,113,119,RZH102,112..5D..DX198908-199608

sub62732-26070

main62732-95J11iLH102,103,109,113,119,RZH102,112..5D..GL198908-199608

sub62732-26070

main62732-95J12iLH102,103,113,RZH102,112..5D..CD198908-199608

sub62732-26090

62733BGLASS, SIDE REAR WINDOW, REAR RH

main62717-26030iKZH11#,13#,LH184,186,RZH111,12#,TRH124199608-200501

main62717-95J04iKZH100,LH100,RZH100..DX198908-199508

sub62717-26040

main62717-95J05iKZH10#,LH100,RZH100,101..CTM198908-199608

sub62717-26040

main62717-95J07iLH123..4FC;LH110,115,117,125,RZH110,124..DX198908-199608

sub62717-26030

main62717-95J08iLH125..GL;LH110,117,120..DX198908-199608

sub62717-26030

main62717-95J09iKZH12#198908-200408

62735RETAINER, QUARTER WINDOW HINGE

main62735-95D00iLH100,107,RZH100,101..07S,08S198908-199308

main63273-95701iRZH101199308-200408

62735AGRASS, SLIDE DOOR WINDOW, REAR RH

main62735-26040iLH16#,17#,RZH102,112,TRH102,112..5D..DX199608-200408

main62735-26100iLH10#,11#,16#,17#,RZH102,112..5D..DX199608-200302

sub62735-26101

main62735-26101iLH16#,17#,RZH102,112,TRH102,112..5D200302-200408

main62735-95J05iLH102,109,113,119,RZH102,112..5D..DX198908-199308

sub62735-95J06

main62735-95J06iLH102,109,113,119,RZH102,112..5D..GL198908-199308

main62735-95J07iLH10#,11#,RZH102,112..5D..DX199308-199608

sub62735-26040

main62735-95J08iLH10#,11#,RZH102,112..5D..GL199308-199608

sub62735-26040

62736GLASS, SLIDE DOOR WINDOW, REAR LH

main62736-26060iRZH102..DX;RZH102..4D..CD;LH162,17#,RZH112..SG..(CD,DX);KZH11#,13#,LH10#,11#,12#,168,18#,RZH111,12#,133..DX,GL,SGL199608-200501

main62736-26090iRZH112;RZH102..4D..CD;LH10#,11#,123,129,16#,17#,182,188,RZH102..DX,SGL199608-200501

main62736-95J09iRZH102,112..850K;LH102,109,113,119,123,129,RZH102,112,122..06S..DX198908-199308

sub62736-95J10

main62736-95J10iLH102,109,113,119,RZH102,112..(05S,06S)..(GL,SGL)198908-199308

main62736-95J11iLH140;LH123..4FC;LH100,11#,123,125,RZH100,11#,124..(09S,10S,15S)..(DX,SW)198908-199608

sub62736-26060

main62736-95J12iLH113..V1..SRF..4D..06S..DX;LH100,113,119,125,RZH100,112..(08S,09S,15S)..(CTM,GL,SGL)198908-199608

sub62736-26060

main62736-95J12iLH113..09S..GL;LH113..V1..SRF..4D..06S..DX;LH100,119,125,RZH100,112..(05S,08S,09S,15S)..(CTM,GL,SGL)199103-199308

sub62736-26060

main62736-95J13iKZH126;KZH11#,120,13#..4FC199608-200408

62742AGLASS, SIDE REAR WINDOW, FRONT LH

main62716-26250iKZH11#,13#,LH12#,184,186,RZH111,12#,133..03S,06S,10S,15S199608-200501

main62716-95J20iLH123,RZH133..4FC;LH125,129,RZH124..DX198908-199608

sub62716-26250

main62716-95J21iLH125..GL;LH123,129..06S;KZH11#,13#..4FC198908-199608

sub62716-26250

mainC546295B01iKZH12#,LH123,129..06S,10S199205-200408

62743AGLASS, SIDE REAR WINDOW, REAR LH

main62718-26050iKZH11#,13#,LH12#,184,186,RZH111,12#,133..03S,06S,10S,15S199608-200501

main62718-95J07iLH123,RZH133..4FC;LH125,129,RZH124..DX198908-199608

sub62718-26050

main62718-95J08iLH125..GL;LH123,129..06S;KZH11#,13#..4FC198908-199608

sub62718-26050

mainC546495B00iKZH12#199205-200408

62743BWEATHERSTRIP, SIDE REAR WINDOW

main62743-26010-06iLH100,107,RZH100,101..SCL198911-199110

LIGHT SABLE,TRIM3#

sub62743-95J13

main62743-26030iKZH10#,RZH101199308-200408

main62743-95J11iLH16#,RZH102,TRH102..SG198908-200408

main62743-95J12iLH17#,182,188,RZH112,18#,TRH112,122..SG198908-200501

main62743-95J13-01iLH100,107,RZH100,101..08S198908-199308

BLACK,TRIM1#,3#

sub62743-26030

main62743-95J13-01iLH100,107,RZH100,101..SCL199110-199308

BLACK,TRIM3#

sub62743-26030

main62743-95J13-06iLH100,107,RZH100,101..07S,08S198908-199110

LIGHT SABLE,TRIM3#

sub62743-26030

main62744-95J12iLH140199010-199308

main62744-95J13iLH110..SW199010-199308

62744BWEATHERSTRIP, SIDE REAR WINDOW, LH

main62743-95J11iLH102,109,RZH102..SG198908-200408

main62743-95J12iLH11#,123,129,17#,182,188,RZH112..SG198908-200501

main62744-26010-06iLH100,107,RZH100,101..SCL198911-199110

LIGHT SABLE,TRIM3#

sub62744-95J11

main62744-26020iKZH10#,RZH101199308-200408

main62744-95J11-01iLH100,107,RZH100,101..SCL199110-199308

BLACK,TRIM3#

main62744-95J11-01iLH100,107,RZH100,101..08S198908-199308

BLACK,TRIM1#,3#

main62744-95J11-06iLH100,107,RZH100,101..07S,08S198908-199110

LIGHT SABLE,TRIM3#

main62744-95J12iLH100,140,RZH100,101..06S,09S198908-199308

main62744-95J13iLH110,117,RZH110198908-199308

62746BPACKING, QUARTER WINDOW, RH

main62746-26030iTRH12#200408-200501

62746DPACKING, QUARTER WINDOW, LH

main62746-26030iTRH12#200408-200501

62749BSEAL, SIDE WINDOW FRAME

main62749-95J01iRZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW198908-200501

62762KGLASS, SIDE DOOR WINDOW, FRONT LH

main62733-26010iKZH11#199907-200408

main62733-26010iKZH12#199308-199907

main62733-26030iKZH10#,RZH100,101..08S199408-199608

main62733-26050iKZH10#,RZH100,101..08S199408-199608

main62733-26060iKZH10#,RZH100,101..08S199408-199608

main62733-26070iKZH10#,RZH100,101..08S199408-199608

main62733-26080iKZH10#,RZH101..SCL199408-199608

main62733-26080iKZH10#,RZH101..4FC..SCMM199504-199507

main62733-26090iKZH10#,RZH101..SCL199408-199608

main62733-26130iLH16#,17#,18#,RZH102,112,12#..06S,15S199608-199907

main62733-26130iKZH11#199907-200501

main62733-26140iKZH11#,13#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..DX,GL199608-200501

main62733-26160iKZH10#,RZH101..08S199608-200408

main62733-26170iKZH10#,RZH101..08S199608-200408

main62733-26180iKZH10#,RZH101..4FC..SCMM199808-199907

main62733-26180iKZH10#,RZH101..SCL199608-200408

main62733-26190iKZH10#,RZH101..SCL199608-200408

main62733-26200iKZH10#,RZH101..SCMM199608-199708

main62733-26200iKZH10#,RZH101..4FC..SCMM199701-199808

main62733-26210iKZH10#,RZH101..SCMM199608-199708

main62733-26230iLH16#,17#,182,188,RZH102,112..06S199608-199907

main62733-26230iLH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..06S..DX199907-200501

main62733-26240iLH16#,17#,182,188,RZH102,112,18#,TRH102,112,122..SG199608-200501

main62733-26270iKZH10#,RZH101..SCMM199608-199907

main62733-95J14iRZH102,112..1000K..CD;LH102,103,113,115,125,RZH124..SG..(03S,15S)..(CD,DX)198908-199608

sub62733-26130

main62733-95J15iLH125..GL198908-199608

sub62733-26130

main62733-95J16iLH100,110,117,RZH100,110..DX198908-199308

sub62733-95J17

main62733-95J17iLH110;LH100,RZH100,101..CTM198908-199308

main62733-95J19iRZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW198908-199608

sub62733-26140

main62733-95J20iLH123..06S;LH10#,11#,125..GL,SGL;KZH10#,13#,LH129,RZH101..CTM,DX;KZH11#,RZH102,112..(V1,WG)..4FC198908-199608

sub62733-26140

main62733-95J21iKZH11#,120,13#199608-200408

main62733-95J22iKZH10#,RZH100,101..08S198908-199408

main62733-95J23iKZH10#,RZH101..SCL198908-199408

main62733-95J24iLH107,RZH100..08S198908-199408

main62733-95J25iLH107,RZH100..08S198908-199408

main62733-95J26iRZH100..SCL;LH100,RZH101..08S198908-199408

main62733-95J27iLH107,RZH100..08S198908-199408

main62733-95J28iLH120..GCGE,GCGN199205-199308

main62733-95J29iLH100,RZH101..08S198908-199308

sub62733-95J22

main62733-95J30iLH100,RZH101..08S198908-199308

main62733-95J31iLH100,107,RZH101..SCL198908-199308

main62733-95J32iLH100,107,RZH101..SCL198908-199308

62783ASASH, SIDE WINDOW, CENTER

main62783-95J00iKZH11#,120,13#,LH16#,17#,18#,RZH102,11#,12#,18#,TRH102,112,12#..DX,GCGE,GCGN,GL,SGL,SGLE198908-200501

main62784-26010iTRH12#200408-200501

62783ESASH, SIDE REAR WINDOW, CENTER

main62783-95J00iLH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL198908-200501

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95J01iRZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S198908-199907

main62793-95J01iLH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL)198908-200501

62910ELOCK ASSY, SIDE WINDOW

main62910-26010-B0iKZH10#,LH100,107,RZH100,101..08S199205-199608

LIGHT GRAY,TRIM1#

sub62910-26010

main62910-26010-B1iKZH10#,RZH101..08S199608-200408

LT.BLUISH GRAY,TRIM1#

sub62910-26010

main62910-26010-E0iLH100,107,RZH100,101..07S,08S199205-199308

LIGHT SABLE,TRIM3#

sub62910-26010

main62910-26010-E1iKZH10#,RZH100,101..07S,08S199308-200408

LIGHT ANTELOPE,TRIM4#

sub62910-26010

main62910-95702iRZH102,112..850K;LH102,109,11#,12#,RZH102,112,12#..05S,06S,10S,15S198908-199308

main62910-95702iLH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL)198908-199308

main62910-95703iKZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..CTM,DX,GCGE,GCGN,GL,SGL199308-200501

main62910-95703iLH123,129..06S;LH113..V1..SRF..4D..06S..DX;KZH12#,LH119,125,RZH124..05S,10S,15S199408-199907

main62910-95J00-03iLH100,107,RZH100,101..08S198908-199205

LIGHT GRAY,TRIM1#

main62910-95J00-06iLH100,107,RZH100,101..07S,08S198908-199205

LIGHT SABLE,TRIM3#

67043DFRAME SUB-ASSY, SLIDE DOOR WINDOW, RH

main67043-95J01iLH10#,11#,16#,17#,RZH102,112..5D..06S199308-200408

main67043-95J02iLH102,109,113,119,RZH102,112..5D..06S198908-199308

67044DFRAME SUB-ASSY, SLIDE DOOR WINDOW, LH

main67044-95J01iRZH102,112..850K;LH102,109,113,119,123,129,RZH102,112,122..05S,06S198908-199308

main67044-95J02iLH123..4FC;LH113..09S..GL;LH113,140..(V1,WG)..SRF..4D..(DX,SW);LH100,110,115,117,119,123,125,RZH100,11#,124..(05S,08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW)199010-199308

main67044-95J02iKZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CTM,DX,GL,SGL198908-200501

9016440091

main90164-40091

9321984008

main93219-84008

9354083008

main93540-83008

9354084008

main93540-84008

44 parts on this diagram · 5 diagrams in section
