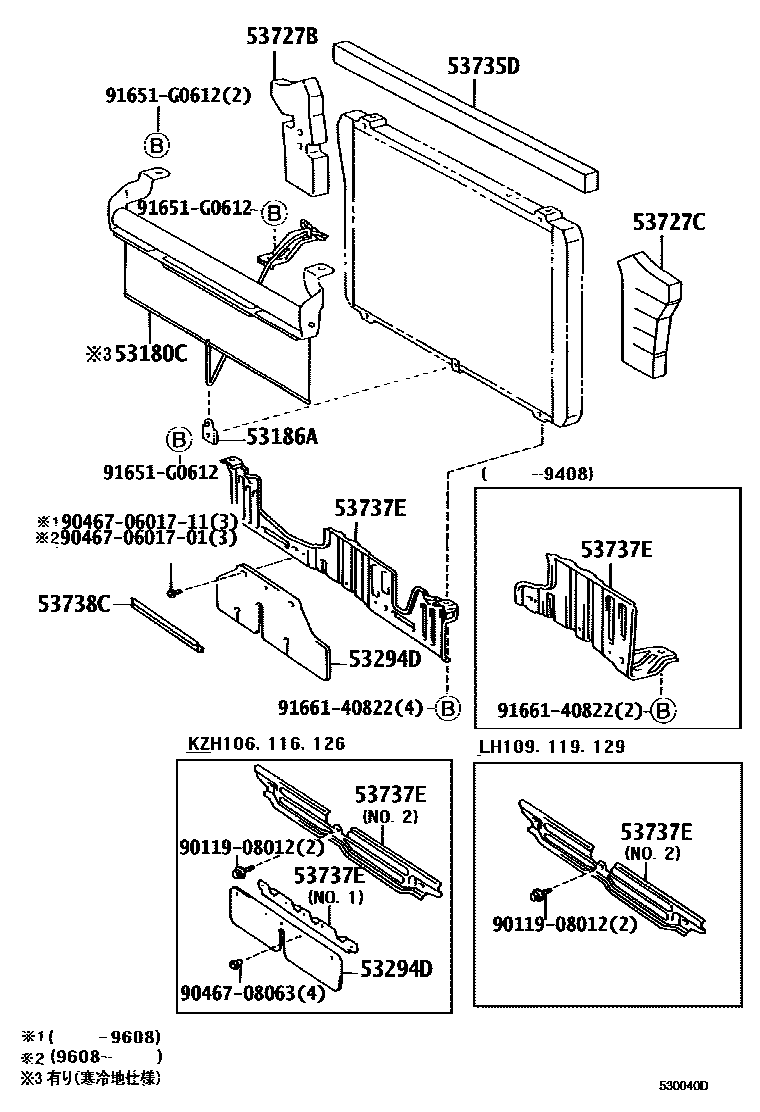

RADIATOR SUPPORT & WIND GUIDE

0001 1 0002 1

53180CSHUTTER ASSY, RADIATOR

main53180-26040iLH16#,17#,18#,RZH10#,11#,12#,133199808-200501

main53180-95J00iKZH10#,11#,12#,13#198908-200408

53186AHOOK, RADIATOR SHUTTER

main53186-95J00iTRH12#198908-200501

53294DDEFLECTOR, RADIATOR LOWER AIR, NO.1

main53294-26010iKZH100,110,120,132,RZH101,111,133199308-200501

main53294-26020iKZH106,116,126,138199308-200408

53727BSHUTTER, HOT AIR SIDE, RH

main53727-95J04iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

53727CSHUTTER, HOT AIR SIDE, LH

main53728-95J02iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

53735DSHUTTER, HOT AIR, UPPER

main53735-95J02iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

main53735-95J03iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

main53735-95J03iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-200501

53737ESHUTTER, HOT AIR, LOWER

main53737-26050iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-200408

main53737-26070iKZH100,110,120,132,LH103,113,123,125,162,172,182,184,RZH10#,11#,12#,133199408-200501

main53737-95J02iKZH100,110,120,LH100,102,103,110,113,120,123,140,RZH10#,11#,122198908-199408

main53737-95J04iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-200408

main53737-95J04iLH107,109,117,119,129198908-199608

53738CSHUTTER, HOT AIR, LOWER LH

main53738-95J00iLH100,120..4FC..TDE;KZH100,110,120,132,RZH101,111,133198908-200501

9011908012

main90119-08012

904670601701

main90467-0601701

904670601711

main90467-0601711

9046708063

main90467-08063

91651G0612

main91651-G0612

9166140822

main91661-40822

14 parts on this diagram · 2 diagrams in section
