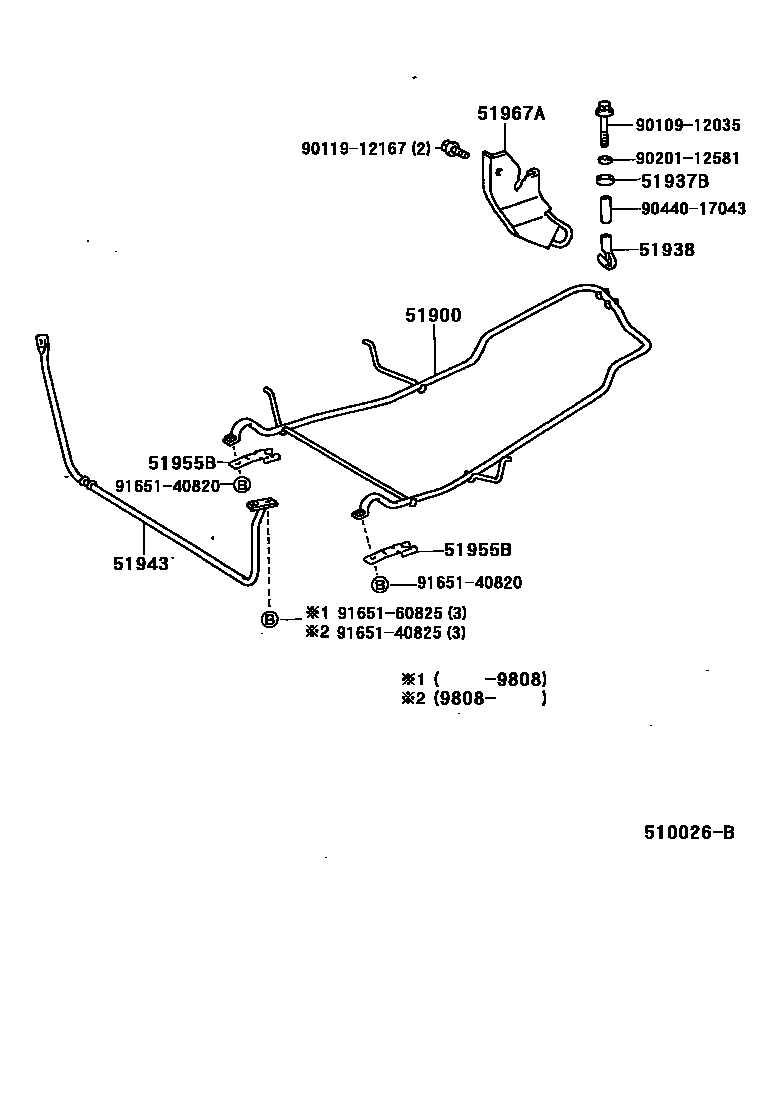

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51900-26090iLH102,103,113,RZH112..V2198908-199608

main51900-26091iLH162,172,RZH102,112,TRH102,112..V2199608-200408

main51903-26350iLH102,113,RZH102,112..V1..CD198908-199205

main51903-26360iLH102,103,113,115,123,125,RZH102,112,12#..COM,V1198908-199608

main51903-26380iLH184198908-200408

main51903-26380iKZH110..4FC199508-200108

main51903-26400iRZH101;LH100,RZH100..07S,08S198908-199308

main51903-26410iKZH116199508-200108

main51903-26410iKZH126,138,LH103,113,123,162,172,182,186,RZH102,112..COM,V1,WG199608-200501

main51903-26410iKZH126,138,LH109,110,117,119,120,129198908-199608

main51903-26420iKZH100,110,RZH101,111198908-200408

main51903-26500iKZH106,116,LH168,178,188199308-200408

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG198908-200501

51938LOCK, SPARE WHEEL CARRIER

main51938-26040iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..COM,V1,WG199302-200501

main51938-28030iLH102,113,RZH112..V2198908-199302

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51904-26020iKZH10#,11#,12#,13#,RZH100,101,111,133199308-200408

main51943-26120iLH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#..COM,V1198908-200501

main51943-26130iLH100,107,RZH100,101198908-199308

main51943-26140iLH162,172,RZH102,112,TRH102,112..V2198908-200408

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26030iLH102,103,113,162,172,RZH102,112..V2198908-200408

main51955-26040iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#..COM,V1,WG198908-200501

51967AHOOK SUB-ASSY, REAR

main51095-95J00iRZH101,111198908-200408

9010912035

main90109-12035

9011912167

main90119-12167

9020112581

main90201-12581

9044017043

main90440-17043

9165140820

main91651-40820

9165140825

main91651-40825

9165160825

main91651-60825

13 parts on this diagram · 2 diagrams in section
