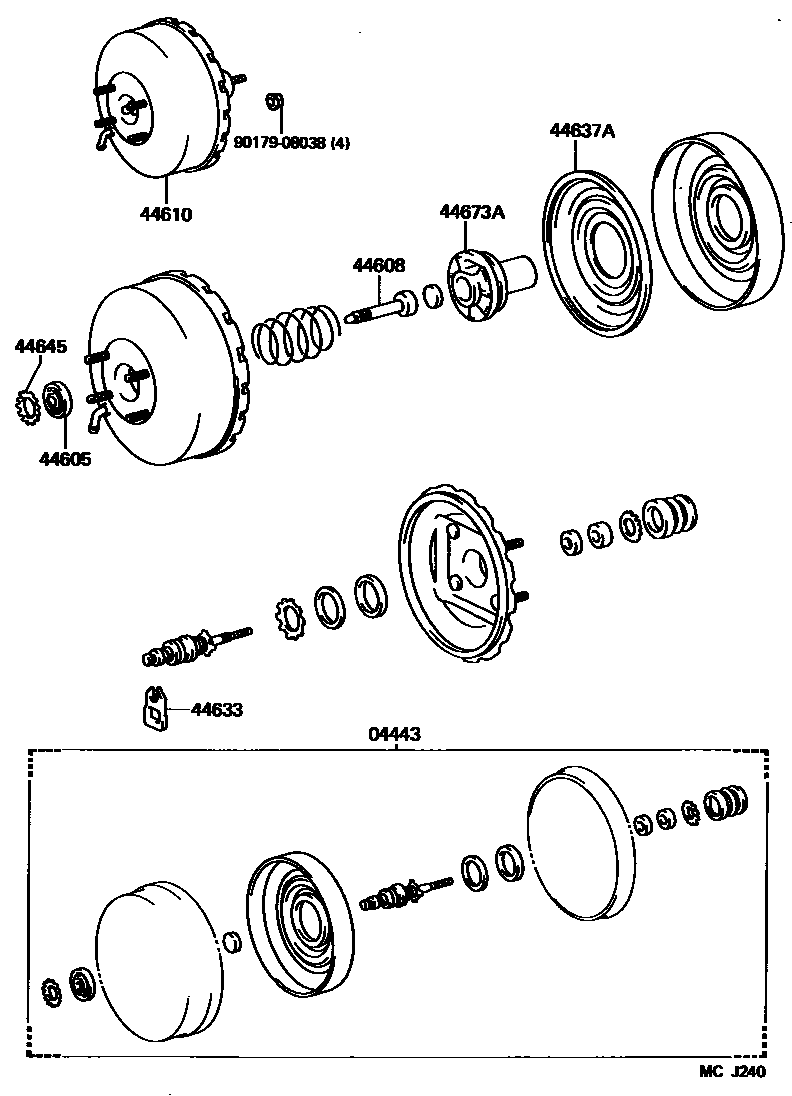

BRAKE BOOSTER & VACUUM TUBE

0001 1JKC 0002 1JKC 0003 1AISIN 0004 1AISIN 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

04443BOOSTER KIT, BRAKE

main04443-26420iRZH100,101,110198908-199008

main04443-26440iLH100,110,120,140198908-199308

main04443-26450iRZH102,112,12#198908-199308

main04443-26470iLH113..09S..5F;LH113..03S,05S,06S;LH102,107,109,115,119,123,125,129..HRF,SMRF,SRF198908-199308

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iLH100,110,120,140198908-199308

main44605-30350iRZH100,101,110198908-199008

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-2B460iRZH100,101,110198908-199008

main44608-32020iLH100,110,120,140198908-199308

44610BOOSTER ASSY, BRAKE

main44610-26410iRZH100,101,110198908-199008

main44610-26420iLH100,110,120,140198908-199308

main44610-26430iRZH102,112,12#198908-199808

main44610-26431iRZH102,112,12#,18#,TRH102,112,12#..CD,DX,GL,SGLE199907-200501

main44610-26440iLH102,103,107,109,113,115,117,119,123,125,129198908-199808

main44610-26441iLH16#,17#,18#..CD,DX,GL199808-199907

main44610-26470iKZH10#,11#,12#,13#,RZH100,101,111,133199308-199808

main44610-26471iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#199907-200501

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iLH100,110,120,140198908-199308

main44633-2B460iRZH100,101,110198908-199008

44637APLATE, BOOSTER DIAPHRAGM

main44637-26420iLH100,110,120,140198908-199308

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iRZH101..07S,08S;LH100,110,120,140,RZH100,110199008-199308

44673ABODY, BOOSTER VALVE

main44673-26420iLH100,110,120,140198908-199308

main44673-2B500iRZH100,101,110198908-199008

9017908038

main90179-08038

9 parts on this diagram · 10 diagrams in section
