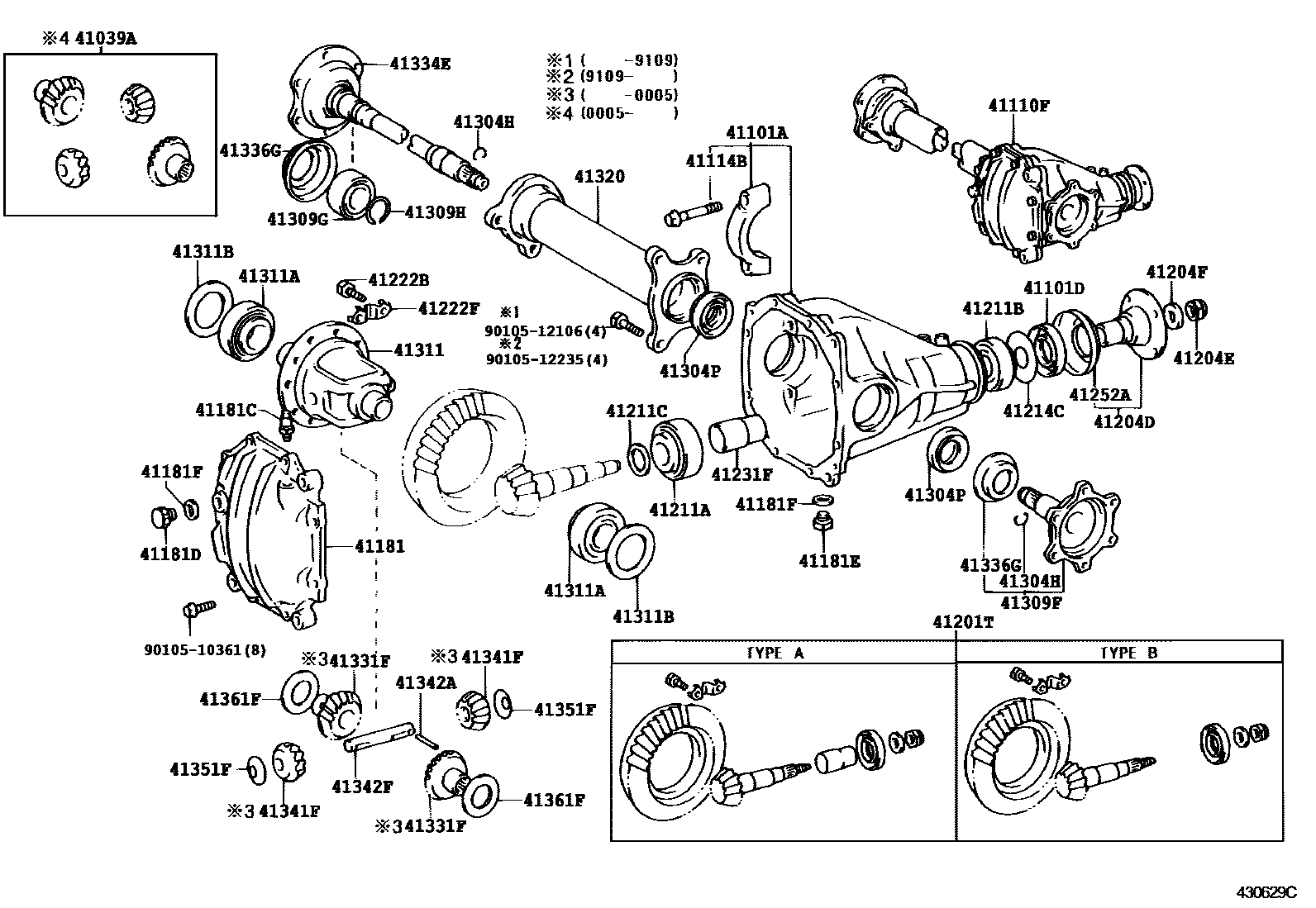

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41039AGEAR KIT, DIFFERENTIAL

main41039-34030iKZH106,116,120,138,LH168,178,186,188..4WD200005-200408

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-26010iLH107,109,117,119,129198908-199508

main41101-26020iKZH106,116,126199308-199501

main41101-26021iKZH106,116,126199501-199508

sub41101-26022

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38049iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

sub90311-38066

main90311-38134iLH107,109,117,119,129198908-199508

sub90311-38047

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-26060iLH107,109,117,119,129198908-199508

main41110-26200iKZH138;KZH106,116,126..5F199808-199907

main41110-26390iLH168,178,186,188199907-200008

main41110-26391iLH168,178,186,188200008-200408

sub41110-26A70

main41110-26480iKZH106,116..4FC199808-199907

main41110-26610iKZH106,116,120,138..4WD199907-200408

sub41110-26A80

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053×4iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-0W020iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main41108-0W021iKZH106,116,120,138,LH168,178,186,188..4WD200008-200408

sub41108-0W022

main41181-26010iKZH106,116,126,LH107,109,117,119,129198908-199508

sub41108-0W010

41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)

main90930-03031iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90930-03077iKZH106,116,120,138,LH168,178,186,188..4WD200404-200408

41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)

main90341-18006iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18030iKZH106,116,126199308-199508

main90341-18057iLH107,109,117,119,129198908-199508

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-39745iLH107,109,117,119,129198908-199508

main41201-80067iKZH106,116,126,138199308-199907

sub41201-80502

main41201-80078iKZH106,116,120,138..4WD199907-200408

sub41201-80116

main41201-80096iLH109,119,129,168,178,186,188199508-199907

main41201-80211iLH168,178,186,188200301-200408

sub41201-80504

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35050iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-18001iLH107,109,117,119,129198908-199308

main90179-18020iKZH106,116,126,138,LH109,119,129,168,178,186,188199308-199907

41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)

main90201-18485iLH107,109,117,119,129198908-199308

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35023iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30022iKZH106,116,120,138,LH168,178,186,188..4WD199907-200206

main90366-30078iKZH106,116,120,138,LH168,178,186,188..4WD200206-200408

41211CGEAR, DIFFERENTIAL RING

main90201-35396iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35397iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-35398iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-35399iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-35400iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-35401iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35402iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35403iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35404iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-35434iKZH106,116,126,LH107,109,117,119,129198908-199309

main90201-35435iKZH106,116,126,LH107,109,117,119,129198908-199309

main90201-35436iKZH106,116,126,LH107,109,117,119,129198908-199309

main90201-35437iKZH106,116,126,LH107,109,117,119,129198908-199309

main90201-35438iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-35439iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35440iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35441iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main90201-35497iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35498iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35499iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35500iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35501iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35502iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35503iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35504iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35505iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35506iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35507iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35508iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35509iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35510iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35511iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35512iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35513iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35514iKZH106,116,120,138,LH168,178,186,188..4WD200108-200408

main90201-35515iKZH106,116,126,138,LH109,119,129,168,178,186,188199309-199907

main90201-35516iKZH106,116,126,138,LH109,119,129,168,178,186,188199309-199907

main90201-35517iKZH106,116,126,138,LH109,119,129,168,178,186,188199309-199907

main90201-35518iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×10iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030×5iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35018×2iLH107,109,117,119,129198908-199508

main90311-35032×2iKZH106,116,126199308-199508

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-26010iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90369-36009iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-33008iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

41311CASE, FRONT DIFFERENTIAL

main41311-22060iLH107,109,117,119,129198908-199508

main41311-28030iKZH138;KZH106,116,126..5F199808-199907

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-50006×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-50003×2iLH109,119,129199311-199508

main90201-50004×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50005×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50006×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50007×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50008×2iLH109,119,129199311-199508

main90201-50009×2iLH109,119,129199311-199508

main90201-50010×2iLH109,119,129199311-199508

main90201-50011×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50012×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50013×2iLH109,119,129199311-199508

main90201-50014×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50015×2iLH109,119,129199311-199508

main90201-50016×2iLH109,119,129199311-199508

main90201-50017×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50018×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50019×2iLH109,119,129199311-199508

main90201-50020×2iLH109,119,129199311-199508

main90201-50021×2iLH109,119,129199311-199508

main90201-50022×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50023×2iLH109,119,129199311-199508

main90201-50024×2iKZH106,116,126,LH107,109,117,119,129198908-199311

main90201-50025×2iLH109,119,129199311-199508

main90201-65007×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65008×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65009×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65010×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65011×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65012×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65013×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65014×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65015×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65016×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65017×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65018×2iKZH106,116,126199311-199508

main90201-65019×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65020×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65021×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65022×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65023×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65024×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65025×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65026×2iKZH106,116,126199311-199508

main90201-65027×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main90201-65028×2iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90201-65029×2iKZH106,116,126199311-199508

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-26020iLH107,109,117,119,129198908-199109

sub90105-12235

main41320-26021iLH107,109,117,119,129199109-199508

main41320-26030iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

sub41320-26080

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-14040×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188199108-199907

sub41331-14041

main41331-22041×2iLH107,109,117,119,129198908-199108

41334ESHAFT, FRONT DIFFERENTIAL SIDE GEAR

main41334-26010iLH107,109,117,119,129198908-199508

main41334-26020iKZH106,116,126199308-199508

41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main41336-28010iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41341FPINION, FRONT DIFFERENTIAL

main41341-30020×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200005

sub41341-30050

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iKZH106,116,120,138,LH168,178,186,188..4WD199907-200005

main41342-22021iKZH106,116,120,138,LH168,178,186,188..4WD200005-200408

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main41361-30050×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main41361-30060×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

main41361-30070×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main41361-30080×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main41361-30090×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

main41361-30100×2iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

9010510361

main90105-10361

9010512106

main90105-12106

9010512235

main90105-12235

42 parts on this diagram · 2 diagrams in section
