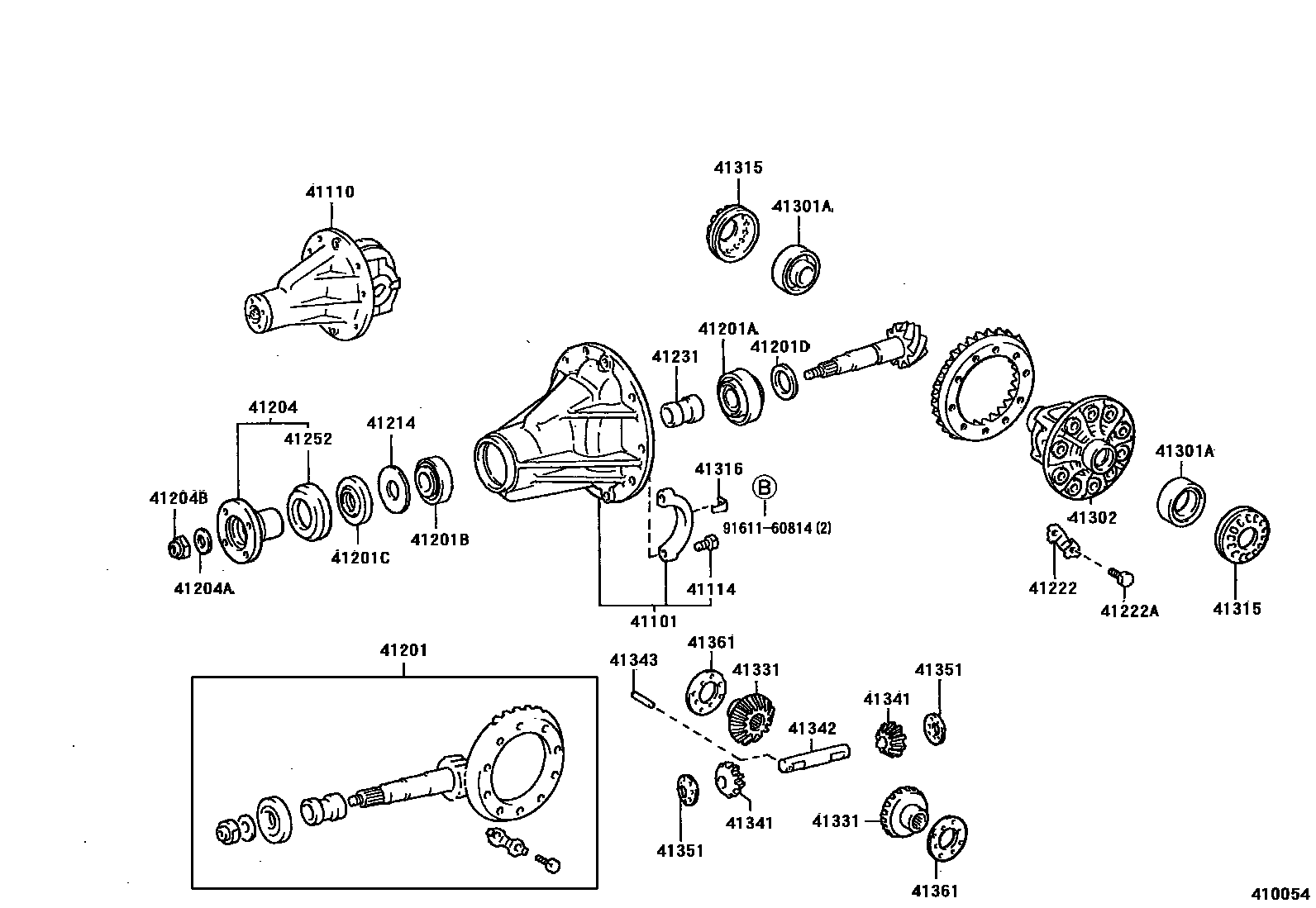

REAR AXLE HOUSING & DIFFERENTIAL

0001 1�����-��=GXX2,(2�����) 0002 1�����-��=GXX4,(4�����) 0003 1LSD,�����-��=G295 0004 1LSD,�����-��=GXX5 0005 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35031iRZH112..V2..4FC;RZH102,112,124..5F;LH103,113,125..COM,V2;KZH106,116,138,RZH101,111,133..4FC198908-200408

main41101-35041iLH168,178,186,188,RZH183;LH162,172,182,184,RZH102,112,TRH102,112,12#..(COM,V1)..4FC198908-200408

main41101-35071iKZH106..4FC199308-199508

sub41101-35170

main41101-35071iKZH100,110,12#,132;KZH106,116,LH100,120..5F..(TD,TDE)198908-199511

sub41101-35170

main41101-35170iKZH100,110,12#,132;KZH106,116,LH103,113,123..(V1,WG)..5F199511-200501

sub41101-35171

sub41115-35010

main41101-60061iLH100,120..4FC;LH107,109,117,119,129..5F198908-199308

sub41101-60160

main41101-60160iTRH12#..4FC200408-200501

sub41101-60161

sub41115-35010

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25083iLH103,113,RZH112..V2..5F198908-199601

sub41110-35411

main41110-26072iLH107,119..4FC198908-199308

sub41110-35332

main41110-26072iLH109,119,129199308-199601

sub41110-35332

main41110-26101iLH184..4FC198908-200408

sub41110-26650

main41110-26150iKZH106..4FC199308-199511

sub41110-35890

main41110-26150iKZH106..5F;KZH100,11#,12#199408-199508

sub41110-35890

main41110-26161iLH100,120..5F..(TD,TDE)198908-199308

sub41110-3D020

main41110-26181iKZH106,116,138..4FC199508-199601

sub41110-35431

main41110-26210iKZH106,116,126..5F199308-199511

sub41110-3D060

main41110-26430iLH162,172,RZH102,112,TRH102,112..V2..5F199508-200408

sub41110-26431

main41110-26440iLH184,RZH124..5F199808-200308

sub41110-26441

main41110-26620iKZH10#,11#,120,13#199907-200408

sub41110-26621

main41110-26650iTRH12#..4FC200408-200501

sub41110-26651

main41110-35084iLH184..4FC198908-200408

sub41110-35085

main41110-35202iLH102..V2198908-199907

sub41110-26430

main41110-35202iKZH106..4FC199408-199508

sub41110-26430

main41110-35212iLH125,RZH124..5F198908-199808

sub41110-35213

main41110-35222iRZH101,111,125,133;RZH112..V2..4FC..DX;RZH102,112..V1..SRF..SG..5F;LH113,162,172,RZH102..V2..4FC198908-200408

sub41110-3D260

main41110-35332iLH109,119,129,168,178,186,188199601-200408

sub41110-60700

main41110-35411iLH103,113,RZH112..V2..5F199601-199608

sub41110-35A80

main41110-35431iKZH106,116,138..4FC199601-199907

sub41110-3D060

main41110-35890iKZH100,110..5F199511-199907

sub41110-35891

main41110-3D050iKZH106,116,120,138..4WD199907-200408

sub41110-3D051

main41110-3D060iKZH106,116,126..5F199511-199907

sub41110-3D061

main41110-3D090iLH184..5F199608-200408

sub41110-3D091

main41110-3D260iTRH102,112,12#..(COM,V1)..5F200308-200501

sub41110-3D261

main41110-60171iLH100..4FC;LH107,109,119,129..5F198908-199003

sub41110-60380

main41110-60191iLH107,109,119,129..5F198908-199003

sub41110-60390

main41110-60380iLH100,120..4FC;LH107,109,117,119,129..5F199003-199308

sub41110-60690

main41110-60390iLH107,109,117,119,129..5F199003-199308

sub41110-60700

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iTRH12#..4FC198908-200501

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29537iRZH101,111,125,182;RZH102,112..V1..5F;LH162,172,RZH102,112,TRH102,112..V2..4FC200201-200408

sub41201-80484

main41201-29735iLH102..4FC198908-200201

sub41201-29736

sub41204-35081

sub41214-26011

main41201-29736iLH172..V1..(03S,05S,06S)..4FC;LH162,182,RZH102,112,TRH102,112,12#..(COM,V1)..4FC200201-200408

main41201-29775iLH103,113,RZH112..V2..5F198908-199608

sub41201-29517

sub41204-35081

sub41214-26011

main41201-29785iLH102..V2198908-199907

sub41201-39677

sub41204-35081

sub41214-26011

main41201-29795iLH113,RZH112..V2..4FC;LH100,103,110,113,115,123,125,140,RZH100,102,110,112,12#..(COM,V1,WG)..5F..(CBR,DSL,EFI)198908-199808

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29805iRZH101,111,125,133;RZH102,112..V1..5F;LH113,162,172,RZH102,112..V2..4FC198908-200201

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29815iLH107,109,119,129;LH100,113,123,RZH102,112..(V1,WG)..4FC198908-199003

sub41201-29816

main41201-29816iLH184..4FC;LH168,178,186,188,RZH183199003-200201

sub41201-29817

sub41204-35081

sub41214-26011

main41201-29817iLH184..4FC;LH168,178,186,188,RZH183200201-200408

sub41201-69615

main41201-29855iLH100,120..5F..(TD,TDE)198908-199305

sub41201-29856

main41201-29856iLH100,120..5F..TDE199305-199308

sub41201-80104

main41201-80068iKZH116199308-199508

sub41201-80179

sub41204-35081

sub41214-26011

main41201-80068iKZH106..5F;KZH100,110,12#199308-200201

sub41201-80179

sub41204-35081

sub41214-26011

main41201-80068iKZH106..5F;KZH100,110,12#199308-199508

sub41201-80179

sub41204-35081

sub41214-26011

main41201-80100iKZH10#,11#,120,13#199907-200201

sub41201-80177

sub41204-35081

sub41214-26011

main41201-80104iLH184,RZH124..5F199808-200201

sub41201-80181

sub41204-35081

sub41214-26011

main41201-80105iLH162,172,182..V1..5F199608-200201

sub41201-80182

sub41204-35081

sub41214-26011

main41201-80177iKZH10#,11#,120,13#200201-200408

sub41201-80723

main41201-80179iLH162,172,RZH102,112,TRH102,112..V2..5F200201-200408

sub41201-80724

main41201-80181iLH184,RZH124..5F200201-200408

sub41201-80747

main41201-80182iLH162,172,182,TRH102,112,12#..(COM,V1)..5F200201-200501

sub41201-80732

main41201-80300iTRH12#..4FC200408-200501

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iKZH106..5F;KZH100,110,12#199308-199508

sub90366-35087

main90366-35028iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-199511

sub90366-35087

main90366-35028iKZH106..5F;KZH100,110,12#199308-199508

sub90366-35087

main90366-35044iRZH102..V1..5F;RZH112..V2..4FC;LH168,178,186,188,RZH112..COM,V1;KZH106,116,138,LH162,172,182,184,RZH10#,111,125,133..4FC198908-200408

main90366-35087iTRH12#..4FC199511-200501

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iLH103,113..V2..5F;LH109,119,125,129,RZH102,112,124;KZH106,116,138,LH103,113,123,RZH101,111,133..4FC198908-199907

sub90366-30078

main90366-30025iKZH106..5F;KZH100,110,12#199308-199508

sub90366-30067

main90366-30025iKZH116199308-199508

sub90366-30067

main90366-30025iKZH106,116..5F;KZH100,110,12#,132198908-199511

sub90366-30067

main90366-30067iKZH100,110,12#,132;KZH106,116,LH103,113,123..(V1,WG)..5F199511-200501

main90366-30078iRZH102..V1..5F;RZH112..V2..4FC;LH168,178,186,188,RZH112,182..COM,V1;LH162,172,182,184,RZH10#,111,125,183..4FC199907-200408

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iKZH106,116..5F;KZH100,110,12#,132199511-199907

main90311-38047iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#199907-200201

main90311-38133iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133198908-199601

sub90311-38047

main90311-41009iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200201-200501

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35498iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35499iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35500iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35501iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35502iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35503iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35504iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35505iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35506iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35507iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35508iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35509iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35510iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35511iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35512iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35513iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35514iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35515iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main90201-35516iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35517iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

main90201-35518iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iLH103,113..V2..5F;LH109,119,125,129,RZH102,112,124;KZH106,116,138,LH103,113,123,RZH101,111,133..4FC198908-199907

main41204-35040iRZH102..V1..5F;RZH112..V2..4FC;LH168,178,186,188,RZH112,182..COM,V1;LH162,172,182,184,RZH10#,111,125,183..4FC199907-200201

main41204-35080iRZH102,112..V2..5F;LH162,172,182,184..5F;KZH10#,11#,120,13#,RZH124199511-200201

main41204-35081iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200201-200405

sub41204-35082

main41204-35082iKZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112,12#200405-200501

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200201-200501

main90179-20001iLH10#,11#,12#,140,RZH10#,11#,12#198908-199308

main90179-20018iKZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133199308-200201

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200201

main41214-26011iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200201-200501

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133198908-200501

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iKZH116199308-199508

main41231-24010iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-200501

main41231-24010iKZH106..5F;KZH100,110,12#199308-199508

main41231-40011iLH10#,11#,12#,RZH100,102,112,124;KZH106,116,138,RZH101,111,133..4FC198908-200408

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iLH10#,11#,12#,140,RZH10#,11#,12#198908-199303

sub41252-35020

main41252-35020iKZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133199303-200201

main41252-35040iRZH102,112..V2..5F;LH162,172,182,184..5F;KZH10#,11#,120,13#,RZH124199511-200201

main41252-35041iKZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#,TRH102,112,12#200201-200501

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-200501

main90366-50007iKZH116199308-199508

main90366-50007iKZH106..5F;KZH100,110,12#199308-199508

main90368-45066iLH10#,11#,12#,RZH10#,112,124198908-200408

main90368-50024iLH168,178,186,188198908-200408

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iKZH106,116,126,138,LH107,109,117,119,129198908-199511

sub41302-35040

main41302-35020iKZH106199408-199508

sub41302-26010

main41302-35020iKZH100,110..5F198908-200408

sub41302-26010

main41302-35040iKZH106,116,126,138,LH109,119,129,168,178,186,188199511-200408

sub41302-35041

sub90105-11063

main41311-40020iLH10#,11#,12#,RZH10#,112,124198908-200408

sub41311-40021

sub90105-11063

main41311-60060iKZH100,110,120,132..4FC;KZH106,116,126,LH162,172,184,RZH102,112,124..(COM,V2,WG)..5F199508-200501

sub41311-60061

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iLH107,119..4FC;LH100,102,110,113,115,123,125,140,RZH10#,11#,12#..CBR,DSL,EFI198908-200408

main41315-35020iKZH106..4FC199308-199508

main41315-35020iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-200501

main41315-35020iKZH106..5F;KZH100,110,12#199308-199508

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iLH107,119..4FC;LH100,102,110,113,115,123,125,140,RZH10#,11#,12#..CBR,DSL,EFI198908-199305

main41316-35010iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-200501

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34070iLH178,188..SGLE199907-200408

main41039-34080iLH162,172,182..V1..5F200108-200408

main41331-35011iLH162..V2;LH162..V1..4FC;LH103,113,172..V2..5F;KZH100,110,120,13#,LH103,113,123,172,182,RZH101,111,125,133..4FC;KZH106,116,126,LH109,119,125,129,168,178,184,186,188198908-200501

main41331-35030iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

sub41039-34070

main41331-35040iKZH106199408-199508

sub41039-34060

sub41039-34080

main41331-35040iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-200005

sub41039-34060

sub41039-34080

41341PINION, REAR DIFFERENTIAL

main41341-30020iKZH10#,11#,12#199408-199508

sub41341-30050

main41341-30020iKZH10#,11#,12#199408-200005

sub41341-30050

main41341-35010iLH107,109,117,119,129;KZH10#,11#,12#,LH100,120..TD,TDE198908-199408

sub41341-14041

main41341-35020iLH10#,11#,12#,RZH10#,112,124198908-200501

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iLH107,119..4FC;LH100,102,110,113,115,123,125,140,RZH10#,11#,12#..CBR,DSL,EFI198908-200501

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iKZH100,110,120,13#,RZH101,111,133..4FC;KZH106,116,126,LH10#,11#,12#,RZH102,112,124198908-200501

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iKZH100,110,120,13#,RZH101,111,133..4FC;KZH106,116,126,LH10#,11#,12#,RZH102,112,124198908-200501

main41351-30052iKZH106,RZH101..4FC;LH10#,11#,12#,RZH100,102,112,124199408-199508

main41351-30060iLH162,172,182..V1..5F198908-200408

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-14200iLH178,186,188..(05S,15S)..4FC..(DX,SGLE)200108-200302

sub41361-14201

main41361-14200iKZH106,116,120,138,LH168,178,186,188..4WD199907-200108

sub41361-14201

main41361-24010iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-199508

sub41361-60E10

main41361-24020iKZH10#,11#,12#198908-199508

sub41361-60E50

main41361-24030iKZH10#,11#,12#198908-199508

sub41361-60E90

main41361-24040iLH100,120..TD,TDE;LH107,109,117,119,129..5F198908-199508

sub41361-60F30

main41361-24050iKZH10#,11#,12#198908-199508

sub41361-60F70

main41361-35160iKZH106,116,120,138,LH168,178,186,188..4WD200108-200302

sub41361-35161

main41361-35290iKZH106,116,120,138,LH168,178,186,188..4WD200108-200302

sub41361-35291

main41361-35310iLH184..5F199508-200408

main41361-35320iKZH100,110..5F199508-200408

main41361-35330iLH184..5F199508-200408

main41361-35340iKZH100,110..5F199508-200408

main41361-35350iKZH100,110..5F199508-200408

main41361-40021iLH162..V2;LH172..4FC;LH172..V2..5F;LH162,182,184..(COM,V1)..4FC;KZH10#,11#,120,13#,LH168,178,186,188,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

main41362-40021iKZH106,RZH101..4FC;LH10#,11#,12#,RZH100,102,112,124198908-200501

main41363-40021iLH162..V2;LH172..4FC;LH172..V2..5F;LH162,182,184..(COM,V1)..4FC;KZH10#,11#,120,13#,LH168,178,186,188,RZH10#,11#,12#,18#,TRH102,112,12#198908-200501

9161160814

main91611-60814

27 parts on this diagram · 5 diagrams in section
