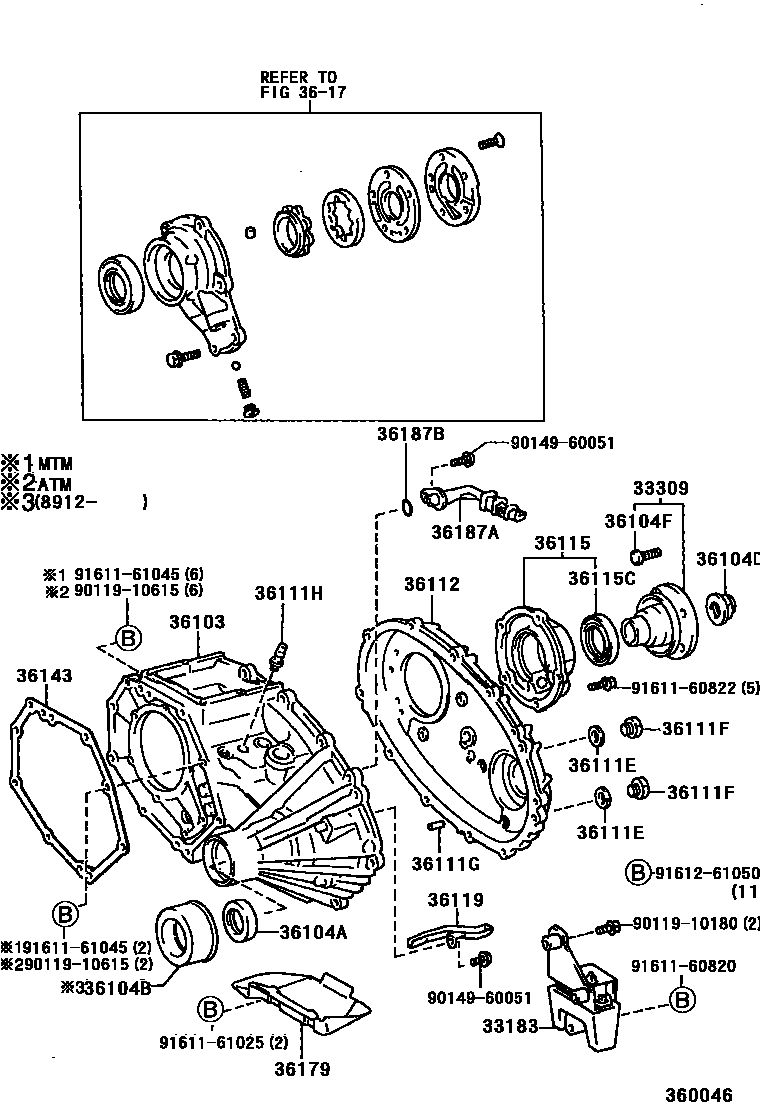

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1

33183DAMPER, TRANSFER DYNAMIC

main33183-26010iLH107,109,117,119,129..5F198908-199508

main33183-26020iLH107..SCL199010-199308

33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION

main33309-26010iLH107,109,117,119,129198908-199409

main33309-26011iLH109,119,129199409-199508

sub33309-28030

main33309-28021iKZH106,116,126199308-199508

36103CASE SUB-ASSY, TRANSFER

main36103-26020iKZH106,116,126,138,LH109,119,129,168,178,186,188199505-199907

main36103-28011iLH107..5F..SCM;LH107,109,119,129..DX,GL,SCMM,SGL198908-198912

sub37331-26010

main36103-28012iLH107,109,119,129198912-199001

main36103-28020iKZH106,116,126,LH107,109,117,119,129199001-199503

sub90149-60051

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-37002iLH107,109,117,119,129199208-199508

main90311-38026iLH107..5F..SCM;LH107,109,119,129..DX,GL,SCMM,SGL198908-198911

main90311-38039iLH107,109,117,119,129198911-199208

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-28020iLH107,109,117,119,129198912-199508

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20010iLH107,109,117,119,129198908-199508

36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-10017×4iLH107,109,117,119,129198908-199508

36111EGASKET (FOR TRANSFER CASE)

main90430-18008×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

36111FPLUG (FOR TRANSFER CASE)

main90341-14008iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main90341-18006iLH107,109,117,119,129198908-199508

main90341-18057iLH107,109,117,119,129198908-199508

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198912-199907

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03085iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198908-199907

36112CASE, TRANSFER, REAR

main36112-26010iKZH106,116,126199308-199508

main36112-26020iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main36112-28030iLH107,109,117,119,129198908-199508

36115HOUSING, TRANSFER EXTENSION

main36105-26010iLH107..SCMM198908-199001

main36105-26020iKZH106..SCL199308-199408

main36105-28010iLH107,109,119,129198908-199001

main36105-28020iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-52021iKZH106,116,126,138,LH109,119,129,168,178,186,188199705-199907

main90311-54001iKZH106,116,126,138,LH107,109,117,119,129198908-199705

36119RECEIVER, TRANSFER OIL, NO.1

main36119-25010iKZH106,116,126,138,LH109,119,129,168,178,186,188199508-199907

main36119-28010iKZH106,116,126,LH107,109,117,119,129198908-199508

36143GASKET, TRANSFER CASE, FRONT

main36143-28020iLH107,109,119,129198908-198912

3617

36179PROTECTOR, TRANSFER CASE LOWER

main36179-28011iLH107,109,119,129198908-198911

main36179-28020iKZH106,116,126,138,LH107,109,117,119,129,168,178,186,188198911-199907

sub36179-25010

main36179-28030iKZH106,116,120,138,LH168,178,186,188..4WD199907-200408

36187ASTRAINR, TRANSFER OIL, NO.1

main36187-25010iLH109,119,129199502-199503

main36187-28010iLH107,109,117,119,129198908-199502

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-24017iKZH106,116,126,138,LH109,119,129,168,178,186,188199503-199907

9011910180

main90119-10180

9011910615

main90119-10615

9014960051

main90149-60051

9161160820

main91611-60820

9161160822

main91611-60822

9161161025

main91611-61025

9161161045

main91611-61045

9161261050

main91612-61050

28 parts on this diagram · 3 diagrams in section
