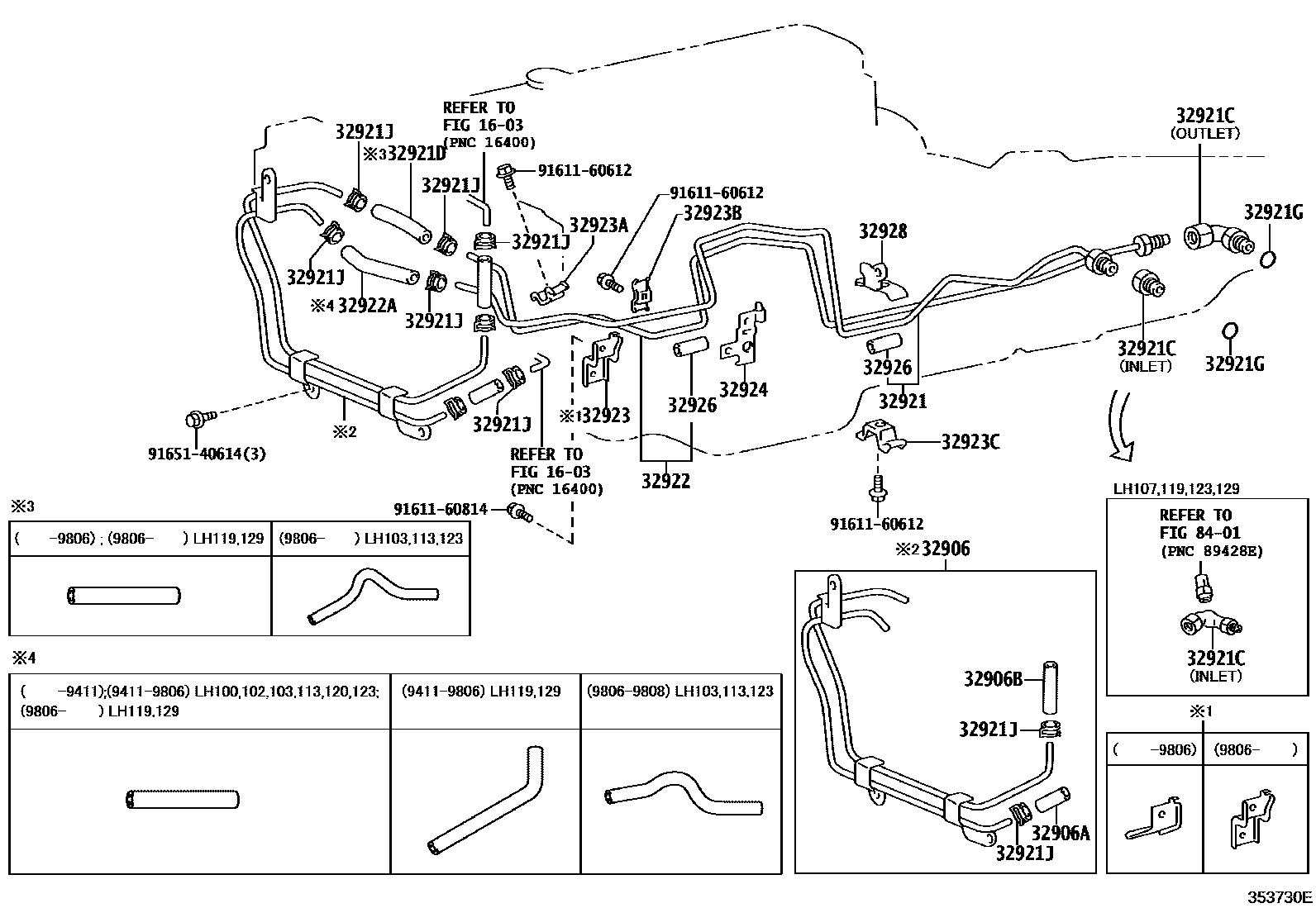

OIL COOLER & TUBE (ATM)

0001 1A44DE,A45DL,A45DF,A45DE 0002 1A44DE,A45DL,A45DE 0003 1A340E,A340F 0004 1A340E,A340F;��(������������) 0005 1A45DL,45DF 0006 1A45DE

1603

32906TUBE SUB-ASSY, OIL COOLER

main32906-26090iRZH10#,112..4FC198908-198910

main32906-26110iLH100,102,107,113,119,123..4FC198908-198910

main32906-26130iLH107..SCL199010-199308

sub90445-17111

main32906-26150iLH103,11#,123,129,RZH10#,11#,124,133..4FC199308-199808

main32907-26040iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

32906AHOSE, OIL COOLER TUBE(FOR INLET)

main90445-17093iLH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC198908-199801

main90445-17151iLH162,17#,18#,RZH10#,11#,125,133..4FC199808-199907

main90445-17156iLH103,11#,123,129,RZH10#,11#,124,133..4FC199801-199808

32906BHOSE, OIL COOLER TUBE(FOR OUTLET)

main90445-17100iLH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC198908-199808

main90445-17125iRZH101,111199907-200208

32921TUBE, OIL COOLER INLET, NO.1

main32921-26081iRZH101,111199907-200208

main32921-26091iLH100,102,103,113,123..4FC..(DSL,TD)198908-199806

main32921-26092iLH103,113,123..4FC199806-199808

main32921-26101iLH107,119,129..4FC198908-199806

main32921-26102iLH119,129..4FC199806-199808

main32921-26110iLH100,120..4FC199010-199308

main32921-26130iKZH10#,11#,120,13#..4FC199308-199907

main32921-26260iLH162,172,182,184..4FC199808-199907

main32921-26270iLH178,186,188..4FC199907-200408

main32921-26300iKZH10#,11#,120,13#199907-200408

main32921-26350iTRH102,112,12#..4FC200308-200312

main32921-26351iTRH102,112..4FC200312-200408

32921CUNION(FOR OIL COOLER TUBE)

main32918-28010iTRH12#..4FC200308-200501

main90404-16021iRZH101,111199907-200208

main90404-16029iLH100,120..4FC199010-199308

main90407-14024iKZH10#,11#,120,13#..4FC199308-199907

main90407-16009iKZH10#,11#,120,13#199907-200408

main90407-16010iRZH101,111199907-200208

main90407-16019iLH107,119..4FC198908-199006

main90407-16028iLH107,119,129,178,186,188..4FC199006-199907

32921DHOSE(FOR OIL COOLER INLET)

main32941-22181iKZH10#,11#,120,13#..4FC199308-199608

main32941-26160iLH162,172,182,184..4FC199907-200408

main32941-26170iTRH102,112..4FC200308-200408

main32941-28190iRZH10#,111,112,124,125,133..4FC198908-199907

main32942-26110iLH103,113,123..4FC199806-199808

main32942-28190iKZH10#,11#,120,13#199907-200408

main32942-35011iKZH10#,11#,120,13#..4FC199608-199907

main90445-17102iLH100,102,103,113,123..4FC..(DSL,TD)198908-199806

main90445-17110iLH107..08S..4FC;LH100,119,120,129..4FC199301-199806

main90445-17115iLH119,129,178,186,188..4FC199806-199907

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iLH162,17#,18#,RZH10#,11#,125,183,TRH102,112,12#..4FC199907-200501

main90301-11006×2iKZH106,116,120,138..4WD199907-200408

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iLH100,102,103,107,113,119,120,123,129..4FC198908-199808

main90467-16022×8iRZH101,111199907-200208

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26081iRZH101,111199907-200208

main32922-26091iLH100,102,103,113,123..4FC..(DSL,TD)198908-199806

main32922-26092iLH103,113,123..4FC199806-199808

main32922-26101iLH107,119,129..4FC198908-199806

main32922-26102iLH119,129..4FC199806-199808

main32922-26120iLH100,120..4FC199010-199308

main32922-26140iKZH10#,11#,120,13#..4FC199308-199907

main32922-26250iLH162,172,182,184..4FC199808-199907

main32922-26260iLH178,186,188..4FC199907-200408

main32922-26290iKZH10#,11#,120,13#199907-200408

main32922-26340iTRH102,112,12#..4FC200308-200312

main32922-26341iTRH102,112..4FC200312-200408

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26160iLH103,113,123..4FC199806-199808

main32942-26050iLH119,129..4FC199411-199806

main32942-26110iLH162,172,182,184..4FC199808-199907

main90445-17069iLH107..SCL199010-199301

main90445-17100iKZH10#,11#,120,13#199907-200408

main90445-17103iRZH101,111199907-200208

main90445-17107iRZH10#,112..4FC198908-199010

main90445-17109iLH107,119,129..(HRF,SMRF,SRF)..4FC198908-199411

main90445-17110iKZH10#,11#,120,13#..4FC199806-199907

main90445-17115iLH119,129,178,186,188..4FC199806-199907

main90445-17128iTRH102,112..4FC200308-200408

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-26050iRZH101,111199907-200208

main32923-26070iLH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL)198908-199301

sub32923-26130

main32923-26080iKZH10#,120..4FC199308-199508

main32923-26100iKZH10#,11#,120,13#..4FC199508-199907

main32925-26090iLH103,113,123..4FC199806-199808

main32925-26091iLH162,172,182,184..4FC199808-199907

main32925-26100iLH119,129..4FC199806-199808

main32925-26101iLH178,186,188..4FC199808-199907

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12079iKZH10#,11#,120,13#,RZH10#,11#,12#,133..4FC199806-199907

main90949-01B25iLH162,17#,18#..4FC199808-199907

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main90462-12079iLH100,102,107,113,119,123..4FC..(CTM,DX,GL,SCL,SCM,SGL)..(DSL,TD)198908-199301

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32909-25080iTRH12#..4FC200308-200501

main32909-25090iTRH12#..4FC200308-200501

main32909-26030iRZH10#,112..4FC198908-199508

main32909-26031iRZH10#,11#,12#,133..4FC199508-199907

main32909-26040iRZH10#,112..4FC198908-199508

main32909-26041iRZH102,112,125,183..4FC199907-200308

main32909-26170iTRH102,112..4FC200308-200408

main90462-12079iLH103,11#,123,129..4FC199806-199808

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-26150iKZH10#,11#,120,13#200005-200408

main32924-26050iLH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL)198908-199301

sub32924-26140

main32924-26070iLH100,107..4FC..SCMM..(DSL,TD)198908-199308

main32924-26120iLH162,17#,18#..4FC199808-199907

main32924-35090iKZH10#,11#,120,13#199907-200005

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-26010×2iRZH10#,111,112,124,125,133..4FC198908-199907

main32926-30020×4iLH162,17#,18#..4FC199907-200408

main32926-30060×2iTRH12#..4FC200308-200501

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-26010iLH100..4FC..SCMM..TDE;LH100,102,107,113,119,120,123..4FC..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SGL)198908-199301

main32928-26080iKZH106,116,120,13#..4FC199308-199607

main32928-26090iKZH106,116,120,13#199907-200408

8401

9161160612

main91611-60612

9161160814

main91611-60814

9165140614

main91651-40614

22 parts on this diagram · 6 diagrams in section
