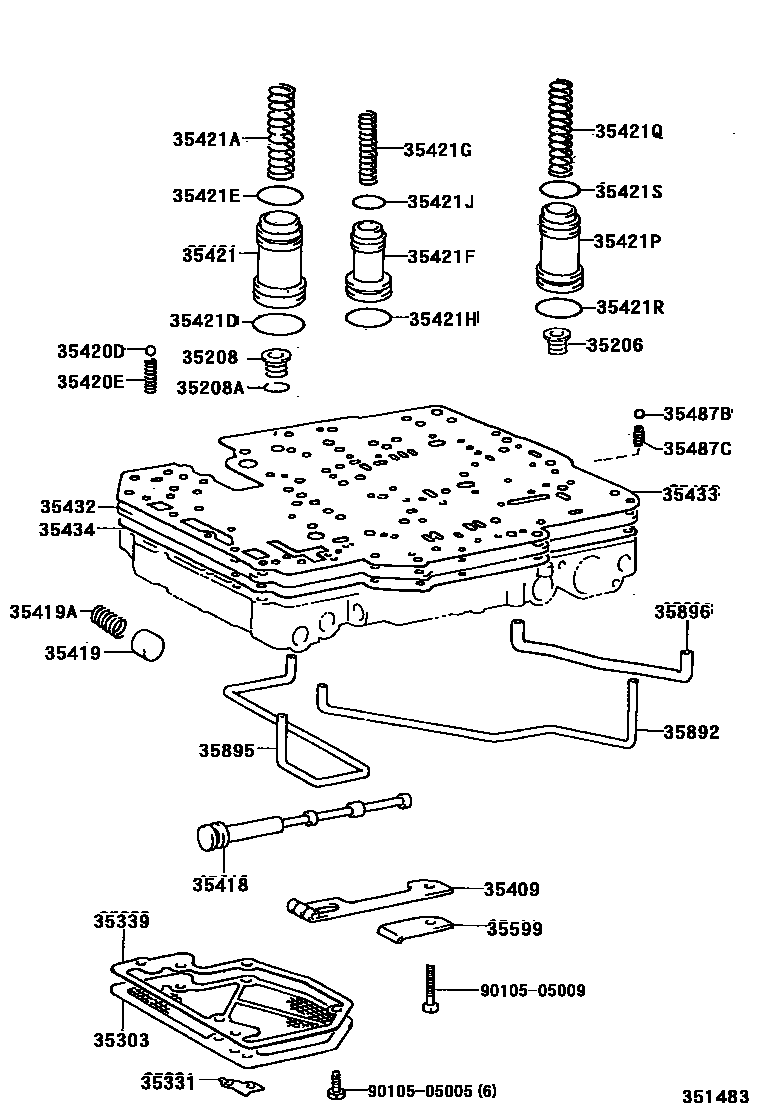

VALVE BODY & OIL STRAINER (ATM)

0001 1A45DL,A45DF 0004 1A45DL 0006 1A45DL 0007 1A45DF 0008 1A45DL,A45DF 0011 1A45DL 0013 1A45DL,A45DF 0014 1A45DL,A45DF 0017 1A45DL 0019 1A45DL,A45DF 0020 1A44DE,A45DF,A45DE 0022 1A44DE,A45DF,A45DE 0024 1A44DE,A45DF,A45DE 0026 1A340E,A340F 0027 1A340E,A340F 0028 1A340E,A340F 0029 1A340E,A340F 0030 1A340E,A340F 0031 1A340E,A340F 0032 1A340E,A340F 0033 1A340E,A340F 0034 1A45DE

35206SPRING SUB-ASSY, C-1 ACCUMULATOR

main35206-30010iRZH125,183199907-200308

main90501-20063iLH162,17#,18#..4FC199808-199907

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iRZH101,111199907-200208

main35208-28010iTRH102,112..4FC200308-200408

main35208-30010iLH100,120..4FC199010-199308

main35208-35010iKZH10#,11#,120,13#199907-200408

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKZH10#,11#,120,13#,LH100,120,162,17#,18#,RZH100,101,111,125,133..4FC..(DSL,EFI,TDE)198908-199907

35303STRAINER SUB-ASSY, OIL

main35303-14010iLH162,17#,18#..4FC199907-200408

main35303-30060iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

35331COVER, OIL STRAINER

main35331-14010iRZH101,111199907-200208

35339GASKET, OIL STRAINER

main35339-14010iLH102,113,119,123,RZH102,112..4FC198908-198910

main35339-28020iLH162,17#,18#..4FC199907-200408

main35339-28030iLH107,RZH100,101,111,125,133..4FC199012-199907

main35339-30060iLH100,107,RZH100,101..4FC..(DSL,EFI,TD)198908-199012

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iLH100,120..4FC199010-199308

main35409-30010iRZH101,111199907-200208

main35409-30020iKZH10#,11#,120,13#199907-200408

main35409-30030iRZH102,112,125,183..4FC200302-200308

35418VALVE, MANUAL

main35418-24010iKZH10#,11#,120,13#199907-200408

main35418-30050iLH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

main35418-30060iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

main35418-30070iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

35419VALVE, CHECK, NO.1

main35419-12030iKZH120..2WD;KZH10#,11#,13#199907-200408

main35419-22010iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-09093iKZH10#,11#,120,13#199907-200408

main90501-10079iLH100,120..4FC199010-199308

main90501-11039iKZH10#,11#,120,13#..4FC199308-199907

main90501-13003iLH103,11#,123,129,RZH101,102,112..4FC199308-199503

main90501-16083iLH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..4FC199503-199907

35420BODY ASSY, LOWER VALVE

main35420-14143iLH100,120..4FC199010-199308

main35420-26080iLH102,103,113,119,123,129..4FC198908-199808

main35420-26090iRZH102,112,124..4FC199608-199907

main35420-26142iLH162,17#,18#..4FC199808-199810

main35420-26150iRZH102,112..4FC199308-199608

main35420-26180iRZH101,111,125,133199709-199907

main35420-26210iLH162,17#,18#..4FC199810-199907

main35420-26240iRZH102,112..4FC199907-200308

main35420-26250iRZH101,111199907-200208

main35420-26260iLH162,17#,18#..4FC199907-200007

main35420-30172iLH100,107,RZH100,101,111,133..4FC..(DSL,EFI,TD)198908-199709

35420DBALL (FOR LOWER VALVE BODY)

main35495-22020×3iLH102,103,113,119,123,129,162,17#,18#..4FC198908-199907

main35496-22030iRZH101,111199907-200208

main90360-08003×4iKZH10#,11#,120,13#199907-200408

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iLH162,17#,18#..4FC199907-200408

main90501-12142iKZH10#,11#,120,13#199907-200408

35421PISTON, ACCUMULATOR, NO.1

main35421-24010iLH100,107,RZH102,112,124..4FC..(CBR,DSL,EFI,TD)198908-199907

main35421-26010iTRH12#..4FC199907-200501

main35421-30020iLH102,103,113,119,123,129..4FC198908-199808

35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

main90501-13012iRZH102,112..4FC199907-200308

main90501-20162iTRH12#..4FC200308-200501

main90501-25033iLH162,17#,18#,RZH100,101,111,125,133..4FC198908-199907

main90501-25037iRZH125,183199907-200308

main90501-26776iLH102,103,113,119,123,129..4FC198908-199808

main90501-27016iRZH101,111,133199508-199709

main90501-29021iLH100,107..4FC..(DSL,TD)198908-199308

35421DRING (FOR ACCUMULATOR PISTON NO.1)

main90301-29011iRZH102,112,125,183..4FC199907-200308

main90301-29187iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35421ERING (FOR ACCUMULATOR PISTON NO.1)

main90301-23010iLH162,17#,18#,TRH102,112..4FC199907-200408

main90301-23194iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35421FPISTON, ACCUMULATOR, NO.2

main35421-30020iRZH100,101,111,125,133..4FC198908-199907

main35423-30010iRZH102,112,124..4FC199608-199810

main35441-30010iTRH12#..4FC200308-200501

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-16093iRZH102,112,124..4FC199608-199810

main90501-18041iRZH101,111199907-200208

main90501-25002iRZH100,102,112..4FC198908-199308

main90501-25010iLH102..4FC198908-199308

main90501-25061iTRH12#..4FC200308-200501

main90501-26050iRZH102,112,124..4FC198908-199907

main90501-27010iLH119..4FC198908-199308

main90501-27016iLH100,107,RZH101..4FC..(DSL,EFI,TD)198908-199508

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-26012iRZH10#,11#,125,133..4FC199808-199810

main90301-26190iLH162,17#,18#..4FC199808-199810

35421JRING (FOR ACCUMULATOR PISTON NO.2)

main90301-18010iLH162,17#,18#..4FC199808-199810

main90301-18186iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD)198908-199808

35421PPISTON, ACCUMULATOR, NO.3

main35421-22030iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main35424-26010iLH162,17#,18#..4FC199907-200408

35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)

main90501-19017iRZH101,111199907-200208

main90501-20063iLH100,102,103,107,113,119,123,129,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main90501-27013iLH162,17#,18#..4FC199808-199810

35421RRING (FOR ACCUMULATOR PISTON NO.3)

main90301-26012iRZH10#,11#,125,133..4FC199808-199810

main90301-26190iLH162,17#,18#..4FC199808-199810

35421SRING (FOR ACCUMULATOR PISTON NO.3)

main90301-21012iRZH10#,11#,125,133..4FC199808-199810

main90301-22185iLH162,17#,18#..4FC199808-199810

35432PLATE, VALVE BODY, NO.1

main35432-22171iLH100,120..4FC199010-199308

main35432-24041iKZH100,110,120,132..4FC199308-199907

main35432-26020iLH107..4FC198908-199308

main35432-26030iRZH100..4FC198908-199308

main35432-26031iRZH100..4FC199308-199508

main35432-26050iRZH101199209-199503

main35432-26051iRZH101,111,133199503-199709

main35432-26060iLH103,11#,123,129..4FC199402-199808

main35432-26110iLH162,17#,18#..4FC199808-199810

main35432-26140iRZH101,111,125,133199709-199907

main35432-26180iLH162,172,182,184..4FC200007-200408

main35432-26240iRZH102,112..4FC199907-200308

main35432-26250iRZH101,111,125,183199907-200308

main35432-26260iLH162,17#,18#..4FC199907-200007

main35432-26330iKZH100,110,120,132..2WD199907-200408

main35432-30122iRZH102,112,124..4FC199402-199907

main35432-30151iLH100,RZH101..4FC..(EFI,TD)198908-199209

main35432-35130iKZH106,116,138..4FC199308-199907

main35432-60180iKZH106,116,120,138..4WD199907-200408

35433GASKET, VALVE BODY, NO.1

main35433-14012iLH162,172,182,184..4FC200007-200408

main35433-22040iLH107,RZH100,101,111,133..4FC199306-199610

main35433-22041iRZH101,111,125,133199610-199907

main35433-26010iRZH101,111199907-200208

main35433-30064iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main35433-30072iLH100,107,RZH100,101..4FC..(DSL,EFI,TD)198908-199306

main35433-60040iKZH10#,11#,120,13#199907-200408

35434GASKET, VALVE BODY, NO.2

main35434-14012iLH162,172,182,184..4FC200007-200408

main35434-22040iLH107,RZH100,101,111,133..4FC199306-199610

main35434-22041iRZH101,111,125,133199610-199907

main35434-26010iRZH101,111199907-200208

main35434-30062iLH100,107,RZH100,101..4FC..(DSL,EFI,TD)198908-199306

main35434-30076iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main35434-60040iKZH10#,11#,120,13#199907-200408

35487BBALL, CHECK, NO.4

main35487-30010iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35599COVER, MANUAL DETENT SPRING

main35599-22020iLH100,120..4FC199010-199308

main35599-30010iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main35599-30020iKZH10#,11#,120,13#..4FC199308-199907

main35599-30030iRZH102,112,125,183..4FC200302-200308

35892TUBE, OVERDRIVE BRAKE

main35892-14010iLH102,103,113,119,123,129,RZH102,112..4FC198908-199608

main35892-22010iTRH12#..4FC200308-200501

main35892-26010iRZH101,111,125,133199704-199907

main35892-28020iRZH102,112,125,183..4FC199907-200308

main35892-30030iLH100,107,RZH100,101,111,133..4FC..(DSL,EFI,TD)198908-199704

35895TUBE, FRONT CLUTCH APPLY

main35895-14011iLH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

main35895-30030iLH100,107,RZH100,101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

35896TUBE, OVERDRIVE SWITCH APPLY

main35896-30020iLH102,103,113,119,123,129,162,17#,18#..4FC198908-199907

9010505005

main90105-05005

9010505009

main90105-05009
