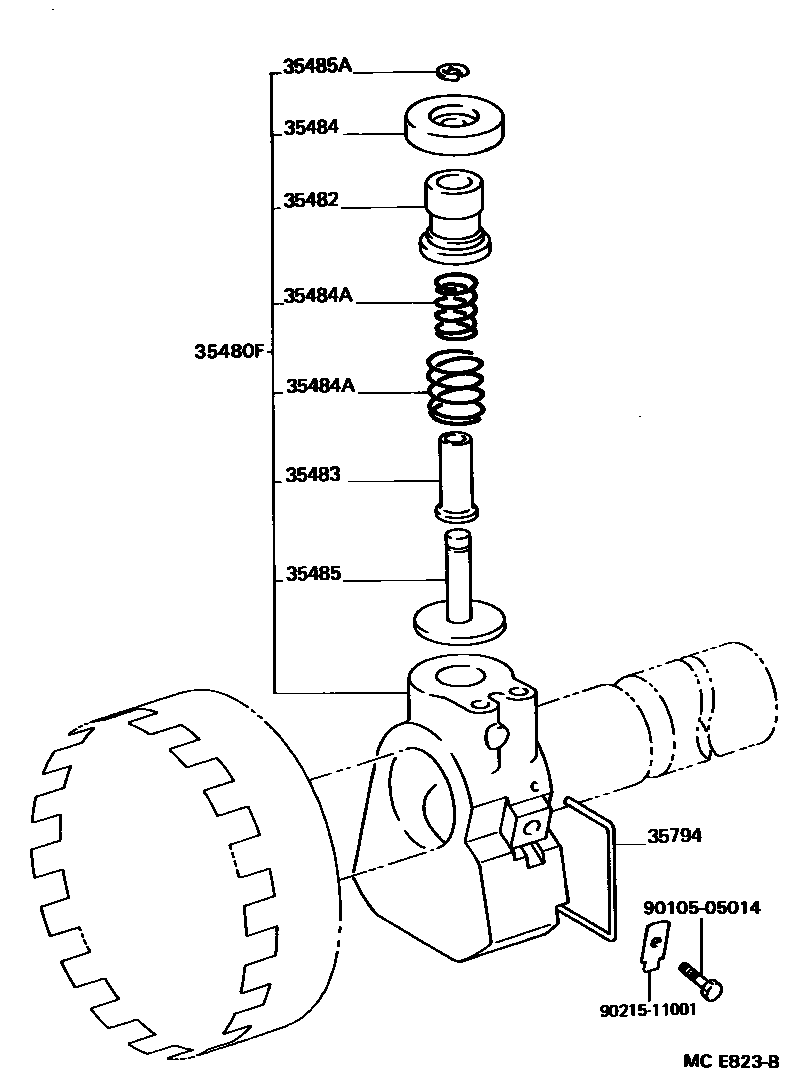

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-26030iLH102,103,113,119,123,129,162,17#,18#..4FC198908-199907

main35480-28010iRZH125,183199907-200308

main35480-28020iRZH102,112..4FC199907-200308

35482VALVE, GOVERNOR

main35482-28010iLH162,17#,18#..4FC199907-200408

main35482-28020iRZH102,112..4FC199907-200308

35483WEIGHT, GOVERNOR, INNER

main35483-14010iLH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iLH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iLH102,103,113,119,123,129,162,17#,18#..4FC198908-199907

main90501-08059iLH102,103,113,119,123,129,162,17#,18#..4FC198908-199907

main90501-09049iRZH102,112,124..4FC198908-199907

main90501-09065iRZH102,112..4FC199907-200308

35485SHAFT, GOVERNOR VALVE

main35485-14010iLH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRZH101,111199907-200208

35794RING, GOVERNOR RETAINING

main35794-22010iLH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC198908-199907

9010505014

main90105-05014

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
