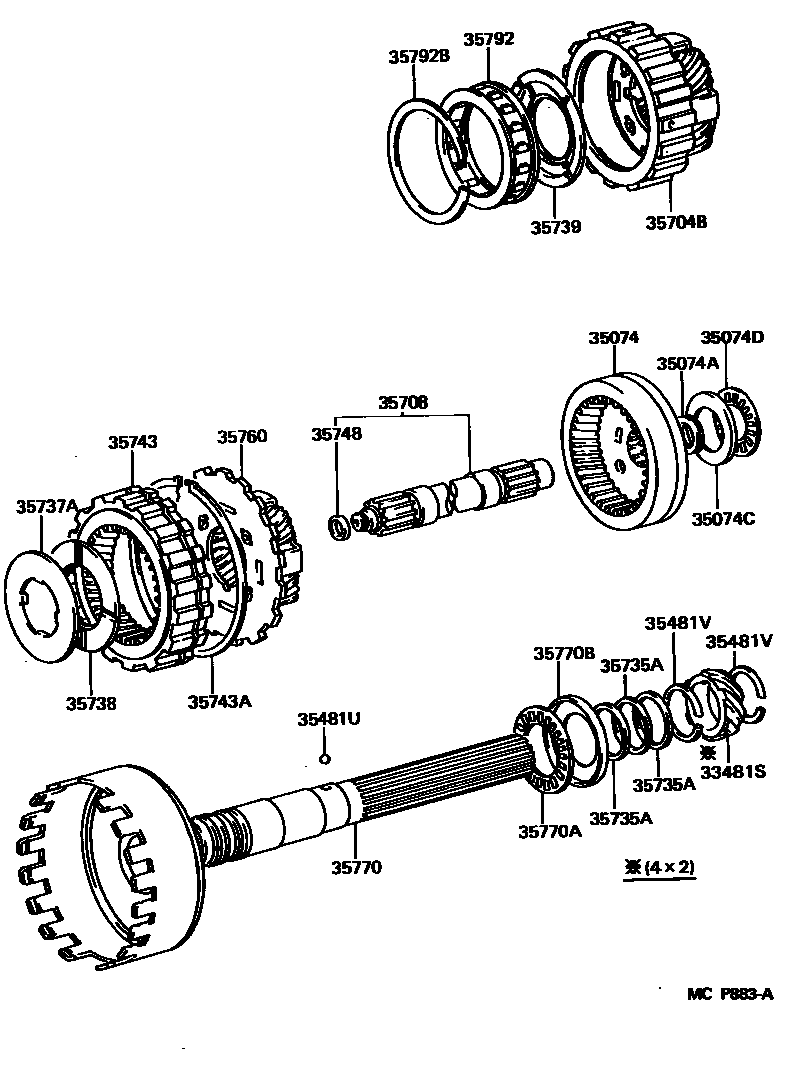

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A45DL,A45DF 0002 1A44DE,A45DE 0004 1A340E,A340F 0005 1A45DE

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-24020iLH120..4FC199010-199308

main33481-25011iLH102..4FC198908-199308

main33481-25021iLH103,113,123,162,172,182,184,RZH102,112,124..4FC199508-199907

main33481-25031iRZH100..(08S,09S)..4FC198908-199508

main33481-26060iRZH100..4FC..SCMM198908-199010

main33481-26120iKZH100..SCL199308-199408

main33481-30060iKZH100,120..(08S,09S,10S)..4FC199308-199408

main33481-30070iLH100..4FC199010-199308

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-30030iTRH12#..4FC199907-200501

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iTRH12#..4FC199907-200501

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iKZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC198908-199808

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009×3iTRH102,112..4FC200308-200408

main90520-29004iTRH12#..4FC199907-200501

main90520-32002iKZH100,110,120,132..4FC199808-199907

35704BGEAR SUB-ASSY, FRONT PLANETARY

main35704-30040iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-30041iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-22010×2iLH107..4FC198908-199308

main35735-30020iKZH10#,11#,120,13#199907-200408

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-22010iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main35737-30030iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-30030iRZH101,111199907-200208

main35739-30030iKZH10#,11#,120,13#199907-200408

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-30020iRZH101,111199907-200208

35743GEAR, FRONT PLANETARY RING

main35743-30010iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iLH162,17#,18#,TRH102,112..4FC199907-200408

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iTRH12#..4FC199907-200501

35760GEAR ASSY, REAR PLANETARY

main35705-30010iKZH10#,11#,120,13#199907-200408

main35760-30040iRZH102,112,125,183..4FC199907-200308

35770SHAFT ASSY, OUTPUT

main35770-26010iLH107..4FC198908-199308

main35770-28010iLH119,129,178,186,188..4FC198908-199907

main35770-30010iRZH102,112..4FC199907-200308

main35770-30030iRZH101,111,133199608-199805

main35770-53010iRZH101,111199907-200208

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iTRH12#..4FC199907-200501

35792CLUTCH, 1 WAY, NO.2

main35792-14020iKZH10#,11#,120,13#199907-200408

main35792-30030iRZH102,112,125,183..4FC199907-200308

main35792-53010iLH162,17#,18#..4FC199907-200408

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main90521-87001iKZH10#,11#,120,13#199907-200408

22 parts on this diagram · 4 diagrams in section
