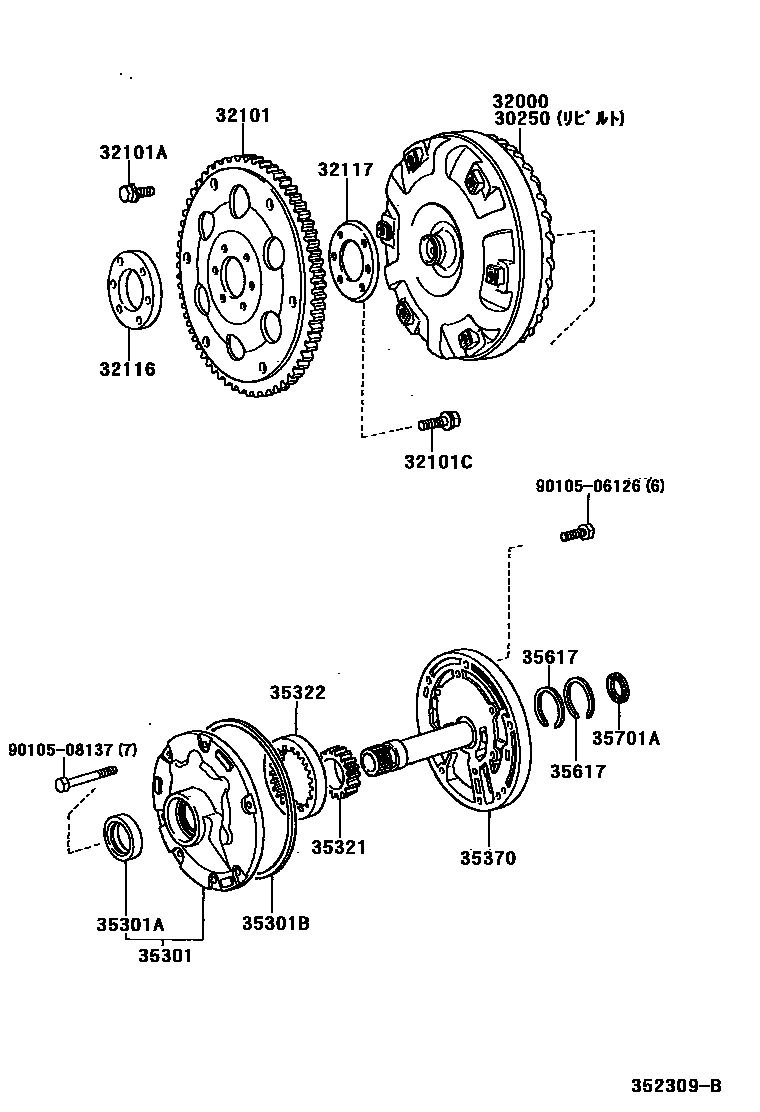

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A44DE,A45DL,A45DE,A45DF 0003 1A340E 0004 1A340E,A340F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-26050iRZH102,112..4FC..(DX,SGL)199308-199907

main30250-26060iRZH101,111199907-200208

main30250-26090iTRH12#..4FC200308-200501

main30250-35190iKZH10#,11#,120,13#199907-200408

main30250-60100iKZH10#,11#,120,13#..(03S,07S,08S,10S)..4FC199308-199907

32000CONVERTER ASSY, TORQUE

main32000-26050iRZH102,112..4FC199907-200308

main32000-26060iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH101,111,125,133..4FC..(DSL,EFI,TD)198908-199907

main32000-26090iTRH12#..4FC200308-200501

main32000-35190iKZH10#,11#,120,13#199907-200408

main32000-60070iLH100,120..4FC199010-199308

main32000-60100iKZH10#,11#,120,13#..4FC199308-199907

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iRZH101,111199907-200208

main32101-35020iLH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC198908-199907

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5iKZH10#,11#,120,13#199907-200408

main90105-10414iKZH10#,11#,120,13#199907-200408

main90119-09009×5iLH162,17#,18#,TRH102,112..4FC199907-200408

main90119-09010iRZH101,111199907-200208

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276×10iRZH101,111199907-200208

main90105-12014×8iLH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC198908-199907

main90105-13010×8iKZH10#,11#,120,13#199907-200408

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iRZH101,111199907-200208

main32116-35010iLH162,17#,18#..4FC199907-200408

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTRH12#..4FC199907

main32117-35010iLH100,102,103,107,113,119,120,123,129,162,17#,18#..4FC198908-199907

main32117-60050iKZH10#,11#,120,13#..4FC199308-199907

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iLH162,17#,18#..4FC199907-200408

main35301-22021iTRH102,112..4FC200308-200408

main35301-30040iKZH10#,11#,120,13#199907-200408

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iLH162,17#,18#,RZH10#,11#,125..4FC199907-200005

main90311-38029iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main90311-38064iLH162,17#,18#,RZH10#,11#,125,183,TRH102,112,12#..4FC200005-200501

main90311-38087iKZH10#,11#,120,13#200210-200408

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main90301-99033iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070iKZH10#,11#,120,13#199907-200408

main35321-12080iKZH10#,11#,120,13#199907-200408

main35321-12090iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main35321-12100iKZH100,120,LH100,120..4FC199307-199508

main35321-12110iKZH10#,11#,120,13#..4FC199508-199907

main35321-14010iLH100,102,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199306

main35321-22020iRZH102,112,125,183..4FC199907-200308

main35321-22030iRZH102,112,125,183..4FC199907-200308

main35321-22040iRZH102,112,125,183..4FC199907-200308

main35321-22050iRZH102,112,125,183..4FC199907-200308

main35321-22060iLH162,17#,18#,TRH102,112..4FC199907-200408

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060iKZH10#,11#,120,13#199907-200408

main35322-12070iKZH10#,11#,120,13#,LH100,120..4FC199307-199907

main35322-12080iKZH10#,11#,120,13#199907-200408

main35322-12090iKZH10#,11#,120,13#199907-200408

main35322-12100iKZH10#,11#,120,13#,LH100,120..4FC199307-199907

main35322-14010iLH100,102,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD)198908-199306

main35322-22020iLH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC199306-199907

main35322-22030iLH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC199306-199907

main35322-22040iLH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC199306-199907

main35322-22050iLH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC199306-199907

main35322-22060iLH162,17#,18#,TRH102,112..4FC199907-200408

35370SHAFT ASSY, STATOR

main35370-14012iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

main35370-22060iTRH102,112..4FC200308-200408

main35370-30031iKZH10#,11#,120,13#199907-200408

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iLH102,113,119,123,RZH102,112..4FC198908-198912

main35617-30020×2iKZH10#,11#,120,13#,LH100,120..4FC199010-199907

main35617-32010×2iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198912-199907

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iLH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD)198908-199907

9010506126

main90105-06126

9010508137

main90105-08137

17 parts on this diagram · 3 diagrams in section
