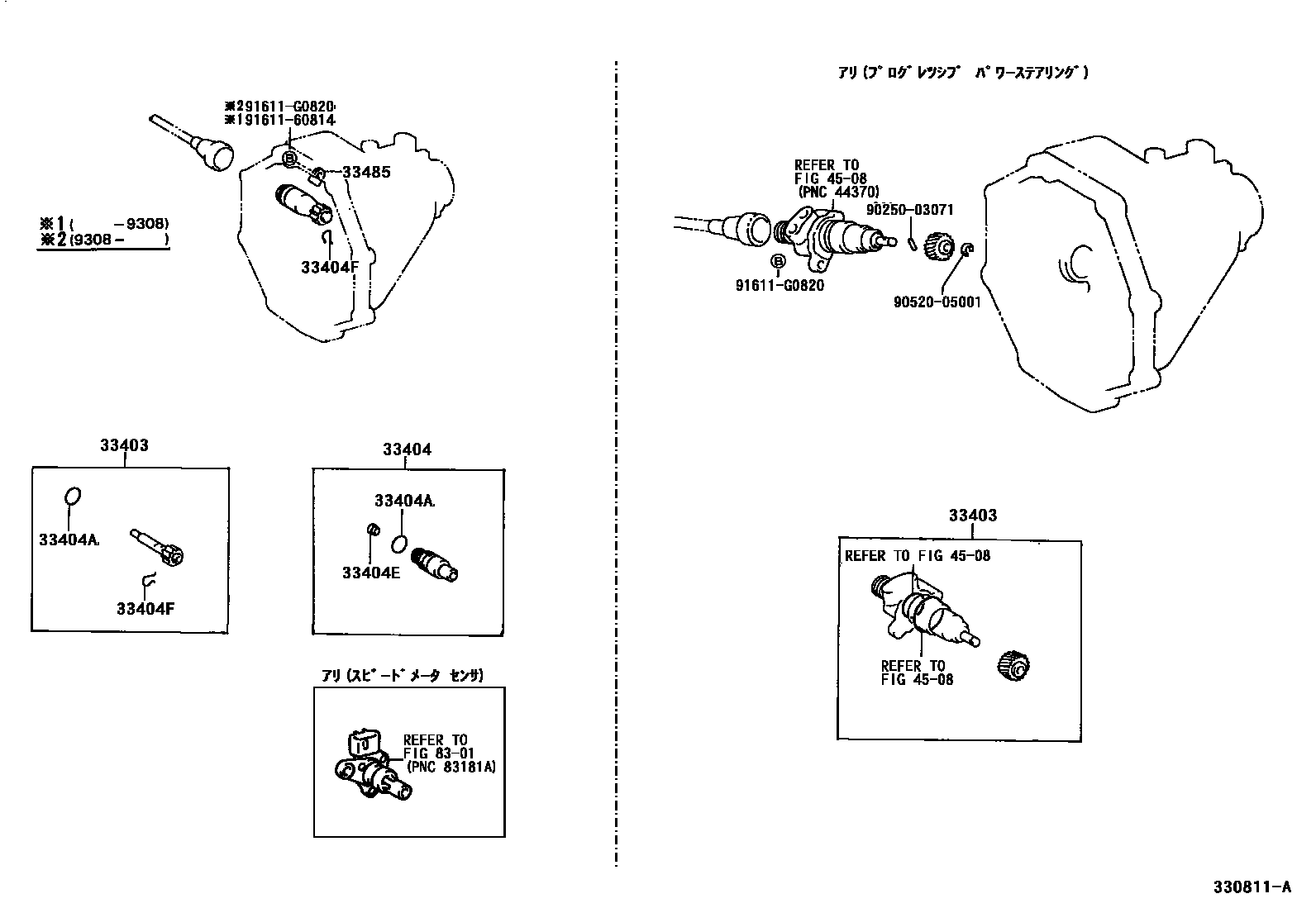

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29135iLH100,120..5F..(TD,TDE)198908-199308

main33403-29295iKZH126199308-199608

main33403-29305iKZH106,116..5F199308-199608

main33403-29315iKZH120..5F199308-199508

main33403-29375iLH109,119,129,168,178,188..5F199608-199907

main33403-29465iKZH126199608-199808

main33403-29475iKZH106,116..5F199608-199808

main33403-29485iLH109,119,129..5F199308-199508

main33403-39315iLH103,113,123,125,RZH100,102,112,124..5F199308-199608

main33403-39355iKZH100,110..5F199308-199907

main33403-39385iLH103,113,123,125,162,172,182,184,RZH102,112,124..5F199608-199907

main33482-29075iLH109,119,129..5F198908-199308

main33482-29085iLH109,119,129..5F199508-199608

main33482-29095iLH107..5F198908-199001

main33482-29115iRZH100..5F..SCMM198908-199010

main33482-29125iLH100..5F..SCMM198908-199010

main33482-29145iLH107..5F198908-199001

main33482-39025iLH110199205-199308

main33482-39035iLH102..5F198908-199308

main33482-39045iLH113,123,140,RZH102,112,122..5F;LH100,102,110,115,125,RZH100,110,124..(03S,08S,09S,10S,15S)..5F..(CBR,DSL,EFI)198908-199205

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLH100,120..5F..(TD,TDE)198908-199308

main33404-35010iLH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199001

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iKZH106,116,126..5F199308-199508

main96711-24030iLH100,120..5F..(TD,TDE)198908-199308

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLH10#,11#,12#,RZH100,102,11#,12#..5F198908-199001

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLH10#,11#,12#,RZH100,102,11#,12#..5F198908-199001

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLH10#,11#,12#,RZH100,102,11#,12#..5F198908-199001

4508

8301

9025003071

main90250-03071

9052005001

main90520-05001

9161160814

main91611-60814

91611G0820

main91611-G0820

12 parts on this diagram · 1 diagram in section
