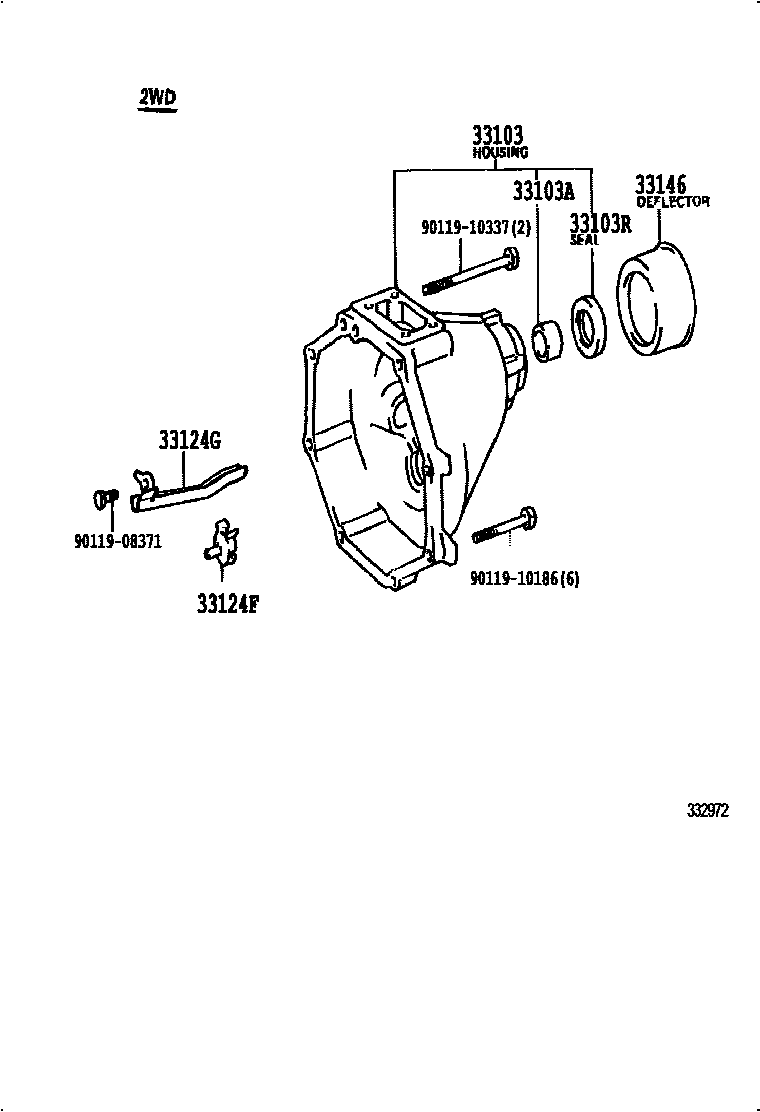

EXTENSION HOUSING (MTM)

0001 1G55 0002 1G52,G55 0003 1G52,G55 0004 1R350 0006 1R351F

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0W010iLH162,172,182,184,RZH102,112,124,182,TRH102,112,12#..5F199805-200412

main33103-26060iKZH100,110,120,LH100,120..5F..(TD,TDE)198908-199405

main33103-26070iKZH100,110,120..5F199405-199907

main33103-28031iLH103,113,123,125,162,172,182,184,RZH102,112,124..5F199806-200501

main33103-28041iLH100,102,103,110,113,115,123,125,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI)198908-199806

sub33103-28031

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73120iRZH102..SG..5F;RZH112..5F..CBR;RZH112..V2..5D..5F..EFI;RZH112..V1..SRF..SG..5F..EFI;LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,110,122,124..5F..(C198908-200501

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iLH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-200501

main90311-40001iKZH100,110,120,LH100,120..5F..(TD,TDE)198908-199907

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iKZH10#,11#,12#..5F199405-199907

main33124-36010iKZH10#,11#,12#,LH100,102,103,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F198908-200501

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0L010iTRH12#..5F200410-200412

sub33124-28011

main33124-28011iLH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main33124-28011iLH162,172,182,184,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main33124-35050iKZH100,110,120,LH100,120..5F..(TD,TDE)198908-199405

main33124-35090iKZH100,110,120..5F199405-199907

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH100,102,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F198908-199405

sub33146-30020

main33146-30020iLH103,113,123,125,RZH100,102,112,124..5F199308-200501

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

9 parts on this diagram · 5 diagrams in section
