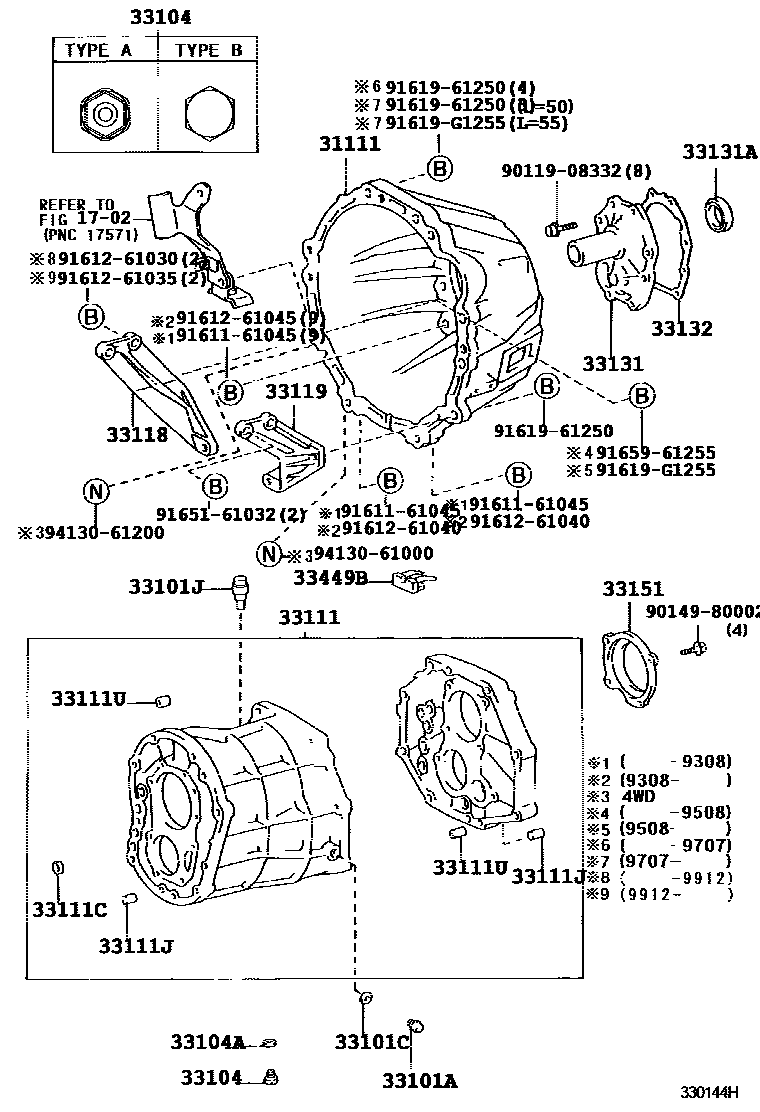

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G55 0003 1G52,G55 0004 1G55 0005 1G52,G55 0006 1R350,R351F

1702

31111HOUSING, CLUTCH

main31111-0W040iLH103,113,123,125,162,172,182,184..5F199805-200408

TAP

sub31111-26040

main31111-26020iLH100,120..5F..(TD,TDE)198908-199308

main31111-26030iRZH100,102,110,112,12#..5F198908-199601

sub31111-26031

main31111-26031iRZH102,112,124..5F199601-199703

sub31111-26032

main31111-26032iRZH102,112,124,182,TRH102,112,12#..5F199703-200501

main31111-26040iLH10#,11#,123,125,129,140,16#,17#,18#..5F..DSL198908-200408

TOYOTA

main31111-60270iKZH10#,11#,12#..5F199308-199907

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

33101JPLUG, BREATHER

main90930-03085iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKZH10#,11#,12#,LH10#,11#,12#,RZH100,102,112,124..5F198908-199907

main90341-18032iLH10#,11#,12#,16#,17#,18#,RZH102,112,124..5F199806-200501

main90341-18057iLH103,113,123,125,162,172,182,184,RZH102,112,124..5F198908-200412

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

33111CASE, MANUAL TRANSMISSION

main33101-0W010iLH162,172,182,184,RZH102,112,124,182,TRH102,112,12#..5F199805-200412

TAP

main33101-26030iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

sub33101-26H01

main33101-26040iKZH10#,11#,12#..5F199405-199907

sub33101-26041

main33101-28020iLH10#,11#,123,125,129,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI)198908-199806

TOYOTA

sub33101-35060

sub90341-18032

main33101-35060iLH10#,11#,12#,16#,17#,18#,RZH102,112,124..5F199806-200501

TOYOTA

sub33101-26060

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLH10#,11#,12#,16#,17#,18#,RZH100,102,112,124..5F198908-200501

main96411-41800iKZH10#,11#,12#..5F199405-199907

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-200501

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F198908-200501

main90253-15001iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-200501

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLH123..06S..5F;LH103,113,125..5F198908-200408

main33118-26010iRZH100,102,110,112,12#..5F198908-199705

sub33118-26011

main33118-26011iRZH102,112,124,182..5F199705-200308

main33118-60050iKZH10#,11#,12#..5F199308-199907

33119PLATE, STIFFENER, LH(MTM)

main33119-25060iLH162,172,182,184..5F199805-200408

main33119-26010iLH10#,11#,12#,140..5F198908-199805

sub33119-25060

main33119-26020iRZH100,102,11#,12#..5F198908-199505

sub33119-26021

main33119-26021iRZH100,102,112,124..5F199505-200308

main33119-60050iKZH10#,11#,12#..5F199308-199907

33131RETAINER, BEARING, FRONT(MTM)

main33131-0W020iLH162,172,182,184,RZH102,112,124..5F199809-200412

TAP

main33131-26020iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F198908-200501

TOYOTA

main33131-35030iLH100,120..5F..TD198908-199008

sub33131-35031

main33131-35031iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)199008-199907

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLH10#,11#,123,125,129,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)198908-199007

sub90311-30014

main90311-30014iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199007-200501

main90311-32012iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-200501

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199907

main33151-35030iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F198908-200501

33449BMAGNET, TRANSMISSION

main33449-26010iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-200501

main33449-35010iKZH10#,11#,12#,LH100,120..5F..(TD,TDE)198908-199405

main33449-35030iKZH10#,11#,12#..5F199405-199907

9011908332

main90119-08332

9014980002

main90149-80002

9161161045

main91611-61045

9161261030

main91612-61030

9161261035

main91612-61035

9161261040

main91612-61040

9161261045

main91612-61045

9161961250

main91619-61250

91619G1255

main91619-G1255

9165161032

main91651-61032

9165961255

main91659-61255

9413061000

main94130-61000

9413061200

main94130-61200

31 parts on this diagram · 5 diagrams in section
