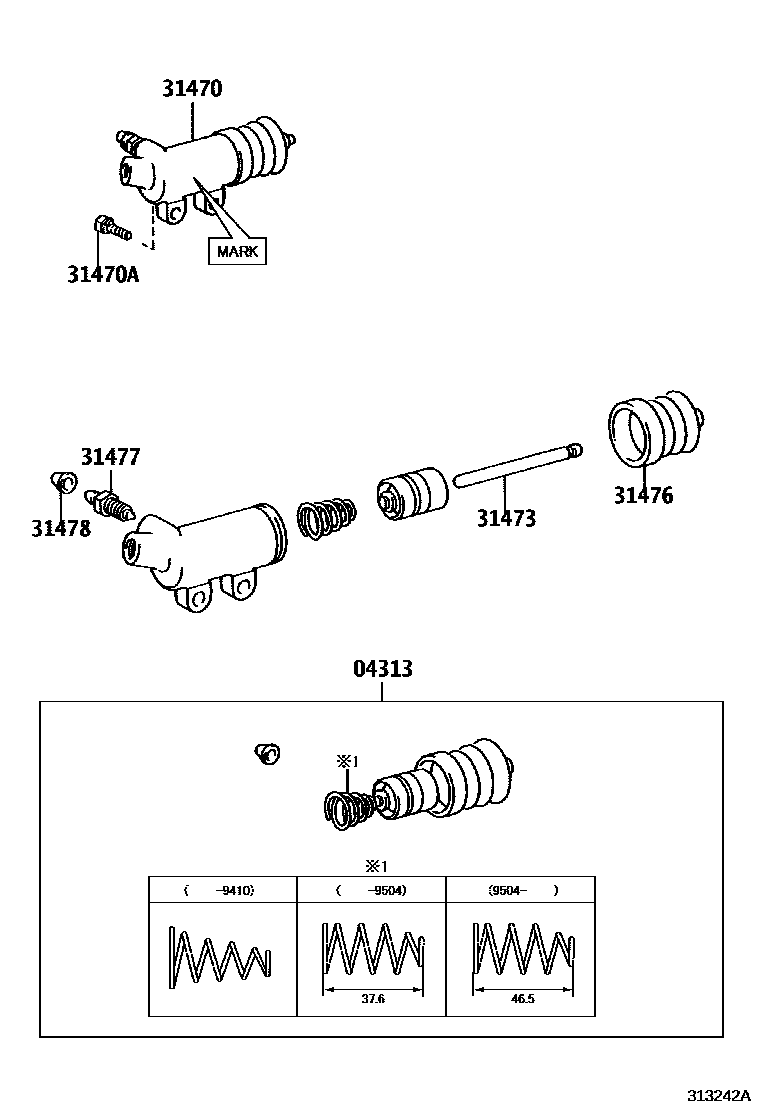

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLH10#,11#,123,125,129..5F..DSL198908-199410

main04313-17010iLH10#,11#,12#..5F199410-199504

PNC 31470 MARK=14

main04313-17010iLH100,120..5F..(TD,TDE)199008-199308

main04313-18010iKZH10#,11#,12#..5F199311-199408

sub04313-18020

main04313-18020iKZH10#,11#,12#..5F199408-199907

main04313-22020iLH100,120,RZH100,102,11#,12#..5F..(CBR,EFI,TD)198908-199006

sub04313-12030

main04313-22030iRZH100,102,112,124..5F199410-200501

main04313-22030iRZH100,102,112,124..5F199504-199907

PNC 31470 MARK=5

main04313-60120iKZH10#,11#,12#..5F199308-199311

sub04313-10010

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLH100,120..5F..(TD,TDE)198908-199304

sub31470-35110

main31470-26060iLH10#,11#,123,125,129,140..5F..DSL198908-199504

sub31470-26061

main31470-26061iLH16#,17#,18#..5F199504-200408

main31470-26080iKZH10#,11#,12#..5F199308-199408

sub31470-26081

main31470-26081iKZH10#,11#,12#..5F199408-199907

main31470-26090iRZH100,102,112,124..5F199410-199504

sub31470-26110

main31470-26110iRZH102,112,124,182,TRH102,112,12#..5F199504-200501

main31470-28040iRZH100,102,11#,12#..5F198908-199409

main31470-35110iLH100,120..5F..TDE199304-199308

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iLH100,120..5F..TD198908-199907

sub91611-G0820

main91611-60825iLH100..DSL;KZH10#,11#,12#,LH102,103,107,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-199809

sub91611-B0825

main91611-B0825iLH16#,17#,18#,RZH102,112,124..5F199809-200501

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLH16#,17#,18#..5F199504-200408

main31473-22010iLH10#,11#,12#..5F198908-199504

main31473-32010iRZH100,102,112,124..5F198908-200501

main31473-60140iKZH10#,11#,12#..5F199308-199311

sub31473-60141

main31473-60141iKZH10#,11#,12#..5F199311-199907

sub31473-60142

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-200501

7 parts on this diagram · 2 diagrams in section
