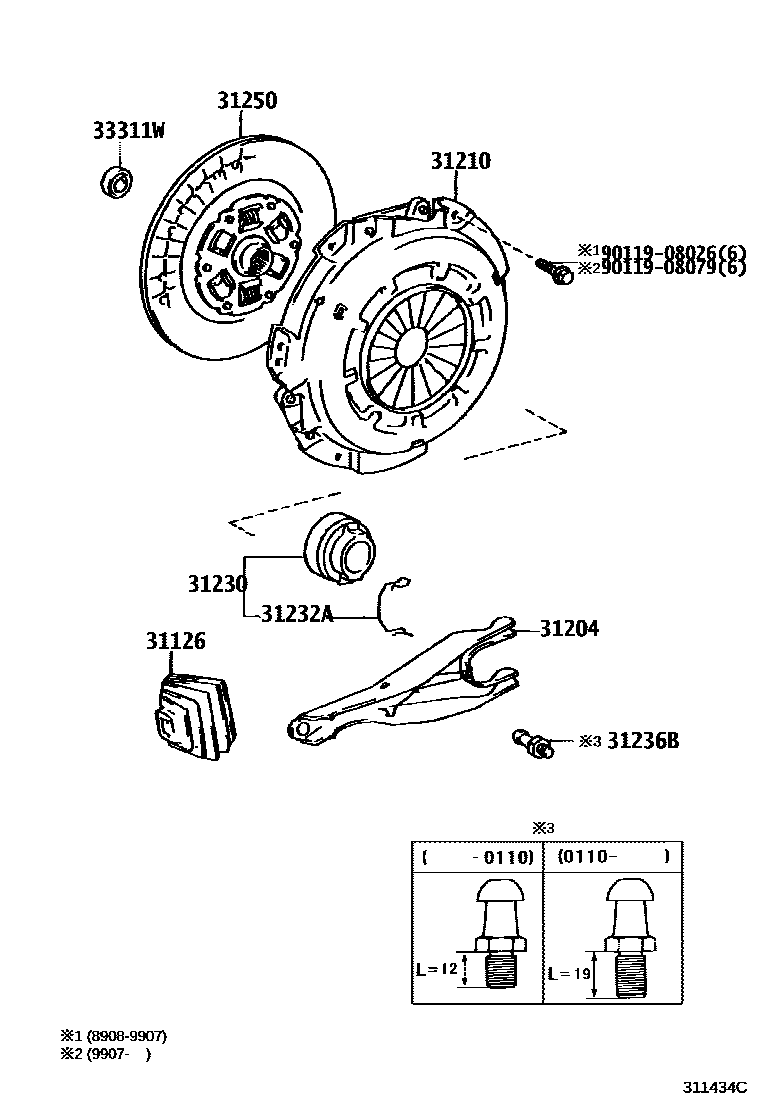

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLH16#,17#,18#..5F199907-200408

main31126-26020iRZH102,112,124,182,TRH102,112,12#..5F199907-200501

main31126-60080iKZH10#,11#,12#..5F199308-199907

sub31126-60081

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F199907-200501

main31204-35031iLH100,120..5F..(TD,TDE)198908-199308

main31204-60090iKZH10#,11#,12#..5F199308-199907

31210COVER ASSY, CLUTCH

main31210-26090iKZH10#,11#,126..5F199508-199907

sub31210-26130

main31210-26110iRZH100,102,112,124..5F199308-199907

main31210-26120iTRH102,112,12#..5F200308-200501

sub31210-26121

main31210-26140iRZH100,110..5F198908-199308

sub31210-22161

main31210-26160iLH16#,17#,18#..5F200407-200408

sub31210-26161

main31210-35090iLH100,102,110,140..5F..DSL198908-199108

sub31210-22100

main31210-35100iLH100..5F..TD;LH107,113,115,120,123,125..5F198908-198910

sub31210-35101

main31210-35110iLH100,120..5F..TD198910-199010

sub31210-53040

main31210-35121iLH16#,17#,18#..5F199907-200102

main31210-35122iLH16#,17#,18#..5F200102-200407

main31210-35170iLH100,120..5F..TDE199103-199205

sub31210-35171

main31210-35190iLH100,120..5F..TDE199205-199305

main31210-35191iLH100,120..5F..TDE199305-199308

sub31210-35192

main31210-60140iLH100,120..5F..TDE199010-199103

main31210-60170iKZH10#,11#,12#..5F199308-199508

sub31210-60171

31230BEARING ASSY, CLUTCH RELEASE

main31230-22090iLH107..5F198908-199008

sub31230-22091

main31230-35050iLH109,113,115,117,119,123,125,129..5F198908-199205

main31230-35060iLH16#,17#,18#..5F199907-200302

main31230-35061iLH16#,17#,18#..5F200302-200408

main31230-35070iLH100,102,110,120..5F198908-199008

sub31230-35071

main31230-35090iRZH102,112,124,182,TRH102,112,12#..5F199907-200501

sub31230-35091

main31230-60170iKZH10#,11#,12#..5F199308-199907

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)199008-199907

main31232-35030iLH162,172,182,184..5F199907-200111

main31232-35040iRZH102,112,124,182,TRH102,112,12#..5F199907-200501

main31232-36030iKZH10#,11#,12#..5F199308-199907

main31232-60030iKZH10#,11#,12#..5F199308-199907

31236BSUPPORT, RELEASE FORK

main31236-26010iLH16#,17#,18#,RZH102,112,124,182,TRH102,112,12#..5F200110-200501

main31236-30060iLH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)198908-199907

main31236-35030iLH100,120..5F..(TD,TDE)198908-199308

main31236-60060iKZH10#,11#,12#..5F199308-199907

31250DISC ASSY, CLUTCH

main31250-22280iRZH100,110..5F198908-199308

sub31250-28160

main31250-25130iLH109,119,129..5F198908-199205

main31250-26160iRZH100,102,112,124..5F199308-199708

main31250-26170iKZH10#,11#,126..5F199508-199701

main31250-26171iKZH10#,11#,126..5F199701-199907

sub31250-26172

main31250-26180iLH10#,11#,12#..5F199508-199612

main31250-26181iLH10#,11#,12#,16#,17#,18#..5F199612-199907

main31250-26182iLH16#,17#,18#..5F200012-200408

main31250-26200iTRH102,112,12#..5F200308-200501

main31250-35220iLH100,102,110,113,115,120,123,125,140..5F..(DSL,TD)198908-199205

sub31250-35221

main31250-35260iLH100,107,117,120..(08S,10S)..5F..(DSL,TDE)198908-199012

main31250-35261iLH100,107,117,120..(08S,10S)..5F199012-199205

sub31250-35262

main31250-35330iKZH10#,11#,12#..5F199308-199508

sub31250-35331

main31250-35380iRZH102,112,124..5F199708-199901

main31250-35381iRZH102,112,124,182..5F199907-200308

sub31250-35382

main31250-60250iLH100,107,117,120..(08S,10S)..5F199205-199308

sub31250-60251

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F198908-199907

sub90363-12024

main90363-12020iRZH102,112,124,182,TRH102,112,12#..5F200006-200501

9011908026

main90119-08026

9011908079

main90119-08079

10 parts on this diagram · 2 diagrams in section
