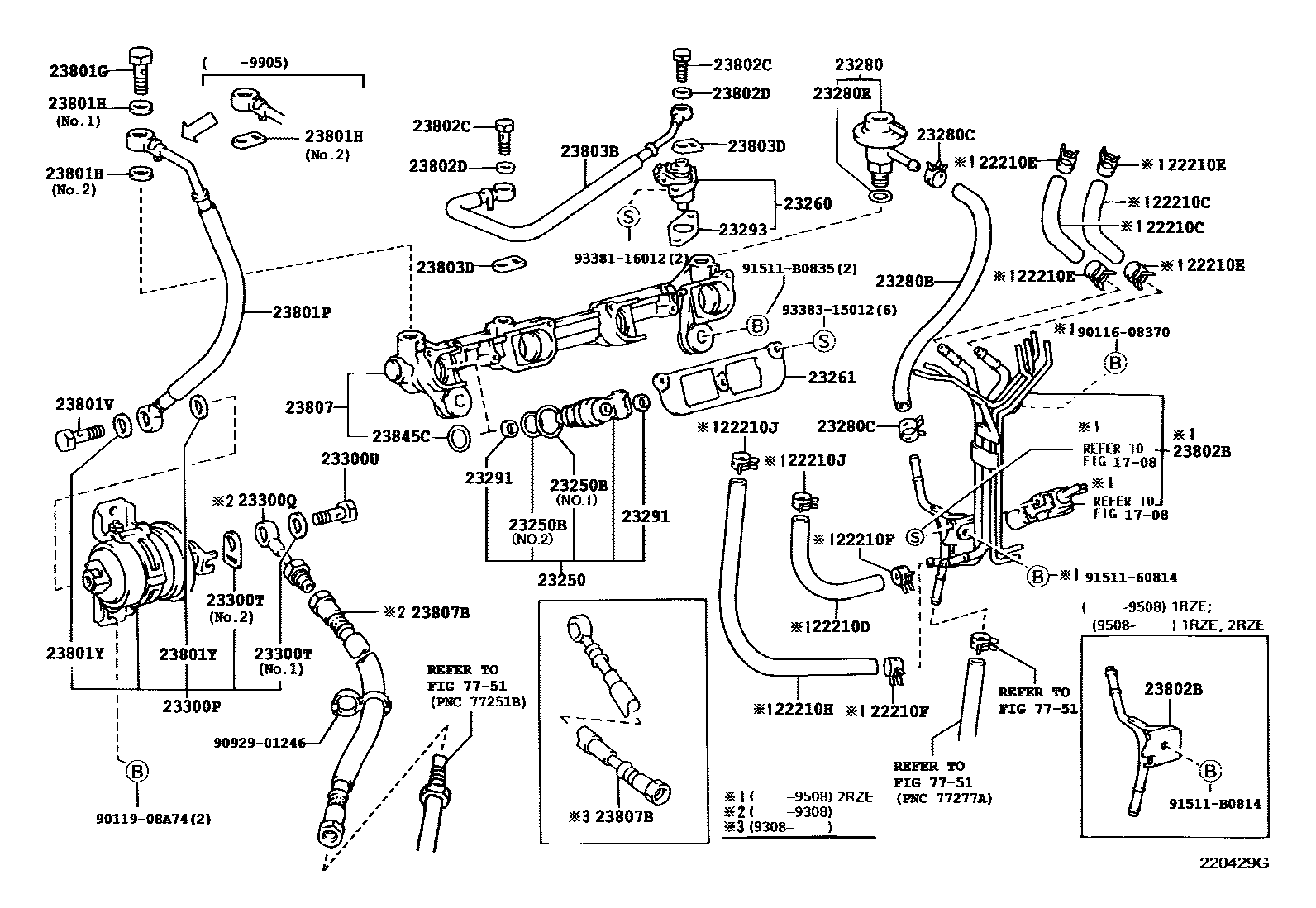

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1708

22210BODY ASSY, THROTTLE

main22210-75010i1RZE..RZH100,110..5F198908-199205

main22210-75011i1RZE..RZH100,102,11#,124..5F199205-199508

main22210-75020i1RZE..RZH100..4FC198908-199205

main22210-75021i1RZE..RZH100,102,112..4FC199205-199508

main22210-75040i2RZE..RZH101198908-199205

main22210-75041i2RZE..RZH101199205-199508

main22210-75140i1RZE..RZH102,112,124,182..5F199907-200308

main22210-75150i2RZE..RZH101,111,125,133199508-199907

main22210-75170i1RZE..RZH102,112,124..4FC199508-199907

22210CHOSE, WATER BY-PASS, NO.1

main16261-75030×2i2RZE..RZH101198908-199508

22210DHOSE, WATER BY-PASS, NO.2

main99555-10200i2RZE..RZH101198908-199508

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300×4i2RZE..RZH101198908-199508

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main96135-41300×2i2RZE..RZH101198908-199508

sub96135-51300

22210HHOSE, WATER BY-PASS, NO.3

main99555-10260i2RZE..RZH101198908-198909

main99555-10300i2RZE..RZH101198909-199508

sub99555-10500

22210JCLIP(FOR WATER BY-PASS HOSE NO.3)

main96135-41300×2i2RZE..RZH101198908-199508

sub96135-51300

23250INJECTOR ASSY, FUEL

main23209-79025×4i1RZE..RZH100,102,11#,124198908-199508

main23209-79035×4i2RZE..RZH101198908-199508

main23209-79105×4i2RZE..RZH101,111,125,133199508-199907

main23209-79115×4i1RZE..RZH102,112,124199508-199907

main23209-79155×4i1TRFE..TRH102,112,12#200308-200501

sub23209-79205

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1TRFE..TRH102,112,12#200308-200501

main90301-14006×4i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

main90301-17007×4i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

23260INJECTOR ASSY, COLD START FUEL

main23260-79185i1RZE,2RZE..RZH100,101,110198908-199002

main23260-79186i1RZE,2RZE..RZH10#,11#,124199002-199508

23261COVER, INJECTOR

main23261-75010×2i1RZE,2RZE..RZH10#,11#,124198908-199310

main23261-75020×2i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75010i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

main23280-75040i1TRFE..TRH102,112,12#200308-200501

sub23280-75130

23280BHOSE, FUEL PRESSURE REGULATOR RETURN

main95333-06020i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

sub95337-06020

23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

main96135-41100×2i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

main96135-51100×2i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i1TRFE..TRH102,112,12#200308-200501

main90301-09002i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

23291INSULATOR, INJECTOR VIBRATION

main23291-73010×4i1TRFE..TRH102,112,12#200308-200501

main23291-75010×8i1RZE,2RZE..RZH100,101,110198908-199002

main23291-75020×8i1RZE,2RZE..RZH10#,11#,124,125,133199002-199907

23293GASKET, COLD START INJECTOR

main23293-75010i1RZE,2RZE..RZH10#,11#,124198908-199508

23300PFILTER, FUEL(FOR EFI)

main23030-75010i1TRFE..TRH102,112,12#200308-200501

main23300-79255i1RZE,2RZE..RZH10#,11#,124198908-199506

main23300-79505i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

23300QUNION(FOR FUEL FILTER)

main90404-14015i1RZE,2RZE..RZH100,101,110198908-199308

23300TGASKET(FOR FUEL FILTER)

main90430-12005i1RZE,2RZE..RZH100,101,110198908-199002

main90430-12017i1RZE,2RZE..RZH10#,11#,124,125,133198908-199905

main90430-12026i1RZE,2RZE..RZH10#,11#,124,125,133199002-199905

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12033i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main90401-12097i1RZE,2RZE..RZH10#,11#,124,125,133198908-199905

23801HGASKET(FOR FUEL PIPE)

main23279-74010×2i1RZE,2RZE..RZH10#,11#,12#,133199905-199907

main90430-12005i1RZE,2RZE..RZH100,101,110198908-199002

main90430-12017i1RZE,2RZE..RZH10#,11#,124,125,133198908-199905

main90430-12026i1RZE,2RZE..RZH10#,11#,124,125,133199002-199905

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-75010i1RZE,2RZE..RZH10#,11#,124198908-199506

main23801-75050i1RZE,2RZE..RZH10#,11#,12#,133199506-199907

23801VBOLT, UNION

main90401-12097i1RZE,2RZE..RZH10#,11#,12#,133199905-199907

23801YGASKET

main90430-12005×2i1RZE,2RZE..RZH100,101,110198908-199002

main90430-12026×2i1RZE,2RZE..RZH10#,11#,124,125,133199002-199905

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-75010i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main23802-75020i2RZE..RZH101198908-198909

main23802-75021i2RZE..RZH101198909-199508

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08003×2i1RZE,2RZE..RZH10#,11#,124199106-199508

main90401-08004×2i1RZE,2RZE..RZH100,101,110198908-199106

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08009×2i1RZE,2RZE..RZH100,101,110198908-199106

main90430-08014×2i1RZE,2RZE..RZH10#,11#,124199106-199508

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-75010i1RZE,2RZE..RZH100,101,110198908-199002

main23803-75011i1RZE,2RZE..RZH10#,11#,124199002-199508

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08011×2i1RZE,2RZE..RZH100,101,110198908-199106

main90430-08015×2i1RZE,2RZE..RZH10#,11#,124199106-199508

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75010i1RZE,2RZE..RZH10#,11#,124198908-199508

main23807-75030i1RZE,2RZE..RZH10#,11#,12#,133199508-199907

sub23807-75031

main23807-75050i1TRFE..TRH102,112,12#200308-200501

sub23807-75052

23807BHOSE, FUEL DELIVERY PIPE

main23271-75010i1RZE,2RZE..RZH100,101,110198908-199308

main23906-75030i1RZE,2RZE..RZH10#,11#,12#,133199308-199907

23845CINSULATOR, FUEL PIPE

main23845-75010×4i1RZE,2RZE..RZH10#,11#,124,125,133198908-199907

7751

9011608370

main90116-08370

9011908A74

main90119-08A74

9092901246

main90929-01246

9151160814

main91511-60814

91511B0814

main91511-B0814

91511B0835

main91511-B0835

9338116012

main93381-16012

9338315012

main93383-15012

44 parts on this diagram · 5 diagrams in section
