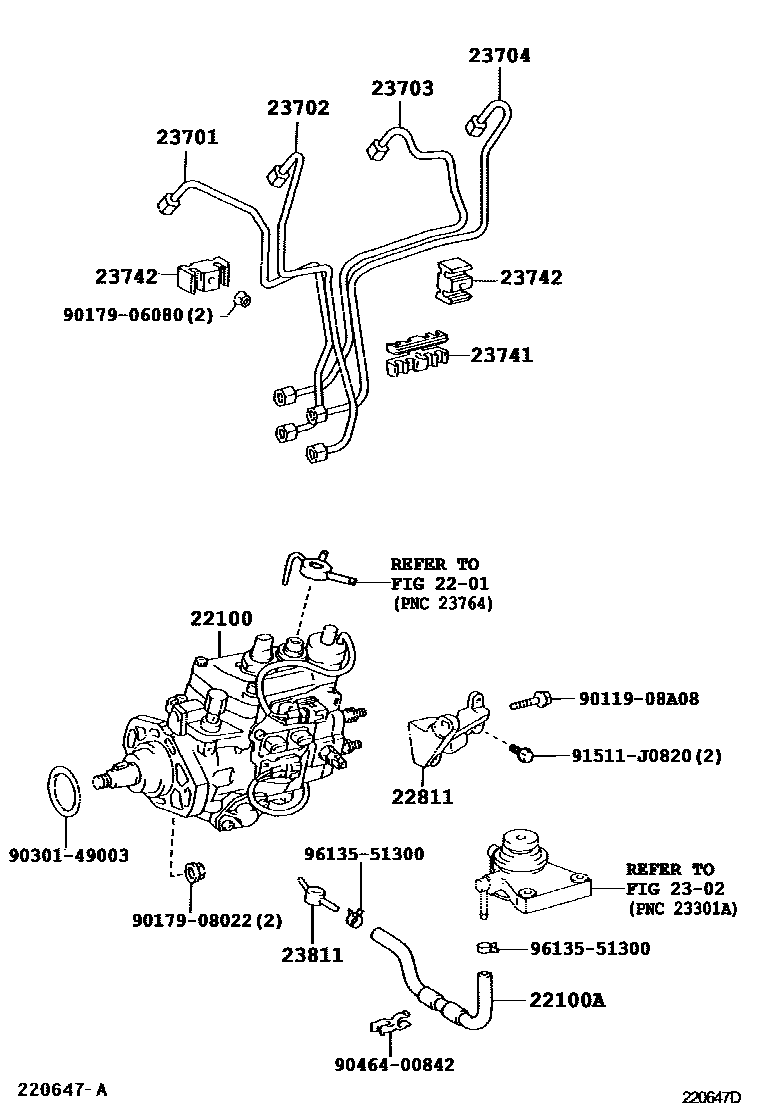

INJECTION PUMP ASSEMBLY

0001 1 0002 1

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54730i2L..LH102..5F¥305,000198908-199308

main22100-54740i2L..LH102..4FC¥305,000198908-199308

main22100-54830i3L..LH103,109,113,115,119,123,125,129..5F¥305,000198908-199508

sub22100-54840¥318,000

main22100-54890i2L..LH100,110,140¥333,000198908-199308

main22100-5B090i2LT..LH100,120..5F¥386,000198908-199010

main22100-5B100i2LT..LH100..4FC¥386,000198908-199010

main22100-5B130i3L..LH103,113,119,123,129..4FC¥311,000198908-199508

main22100-5B140i3L..LH107¥391,000198908-199001

sub22100-5B141¥387,000

main22100-5B141i3L..LH107,117¥387,000199001-199308

main22100-5B300i2LTE..LH100,120¥346,000199010-199011

main22100-5B301i2LTE..LH100,120¥342,000199011-199206

sub22100-5B302¥342,000

main22100-5B302i2LTE..LH100,120¥342,000199206-199308

sub22100-5B303¥342,000

main22100-5B370i3L..LH10#,11#,12#..5F¥317,000199508-199808

main22100-5B400i3L..LH119..5F..SGL¥325,000199608-199808

main22100-5B480i3L..LH103,11#,123,129..4FC..(CD,DX)¥313,000199508-199808

sub22100-5B600¥306,000

main22100-5B600i3L..LH103,11#..4FC..SGL¥306,000199608-199808

main22100-5B640i5L..LH16#,17#,18#..5F..(CD,DX,GL)¥349,000199808-200408

sub22100-5D040¥409,000

main22100-5B650i5L..LH162,17#,18#..4FC..(CD,DX)¥349,000199808-200408

sub22100-5B660¥357,000

main22100-5B660i5L..LH162,17#,182,188..4FC..(SGL,SGLE)¥357,000199808-200408

main22100-5D040i5L..LH178..5F..SGL¥409,000199808-200408

main22100-67030i1KZTE..KZH10#,11#,12#¥271,000199308-199310

sub22100-67070¥273,000

main22100-67070i1KZTE..KZH10#,11#,12#,13#¥273,000199310-199907

main22100-67100i1KZTE..KZH10#,11#,120,13#¥343,000199907-200408

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54040i3L,5L..LH10#,11#,12#,16#,17#,18#¥1,200199101-200408

main23271-54200i5L..LH162,172..5F..CD¥740200012-200408

main90447-14072i2L,2LT#,3L..LH10#,11#,12#,140¥1,290199001-199101

sub23271-54040¥1,200

main95333-08040i2L#,3L..LH10#,11#,12#¥840198908-199001

sub95337-08040¥520

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2L,2LT,3L..LH10#,11#,12#,140¥860198908-199804

sub22811-54042¥530

main22811-54042i5L..LH16#,17#,18#¥530199804-200408

main22811-54050i2LTE..LH100,120¥530199010-199308

main22811-67010i1KZTE..KZH10#,11#,120,13#¥2,190199308-200408

2302

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54120i2LTE..LH100,120¥2,510199010-199308

sub23701-54130¥2,520

main23701-54140i2L,2LT,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥1,710198908-200408

main23701-67020i1KZTE..KZH10#,11#,12#¥1,670199308-199507

sub23701-67021¥1,680

main23701-67021i1KZTE..KZH10#,11#,12#,13#¥1,680199507-200408

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54120i2LT..LH100,120¥2,710198908-199010

main23702-54130i2LTE..LH100,120¥2,510199010-199308

sub23702-54160¥2,520

main23702-54140i2L,3L,5L..LH10#,11#,123,125,129,140,16#,17#,18#¥1,710198908-200408

main23702-67020i1KZTE..KZH10#,11#,12#,13#¥1,680199308-199905

sub23702-67021¥1,680

main23702-67021i1KZTE..KZH10#,11#,120,13#¥1,680199905-200408

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥1,710198908-200408

main23703-67020i1KZTE..KZH10#,11#,12#¥1,670199308-199507

sub23703-67021¥1,670

main23703-67021i1KZTE..KZH10#,11#,12#,13#¥1,670199507-199808

main23703-67030i1KZTE..KZH10#,11#,12#,13#¥1,680199808-199907

sub23703-67031¥1,680

main23703-67031i1KZTE..KZH10#,11#,120,13#¥1,680199907-200408

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#¥1,710198908-200408

main23704-67020i1KZTE..KZH10#,11#,12#,13#¥1,680199308-200408

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L,2LT#,3L..LH10#,11#,12#,140¥1,330198908-199607

main23741-54030i3L,5L..LH10#,11#,12#,16#,17#,18#¥550199607-200408

main23741-64030i1KZTE..KZH10#,11#,12#,13#¥550199308-200408

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L,2LT#,3L..LH10#,11#,12#,140¥1,330198908-199607

main23742-67010i1KZTE..KZH10#,11#,12#,13#¥380199308-200408

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-05030i5L..LH16#,17#,18#¥1,520199808-200312

main23811-54170i2L#,3L..LH10#,11#,12#¥2,210198908-199002

sub23811-54171¥2,210

main23811-54171i2L,2LT#,3L..LH10#,11#,12#,140¥2,210199002-199108

sub23811-54172¥2,190

main23811-54172i2L#,3L..LH10#,11#,12#,140¥2,190199108-200408

main23811-54172i5L..LH16#,17#,18#¥2,190199808-200312

main23811-54200i5L..LH162,172..5F..CD¥2,100200012-200408

main23811-67020i1KZTE..KZH10#,11#,120,13#¥2,110199308-200408

9011908A08

main90119-08A08¥170

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9046400842

main90464-00842¥200

91511J0820

main91511-J0820¥130

9613551300

main96135-51300¥120

19 parts on this diagram · 2 diagrams in section
