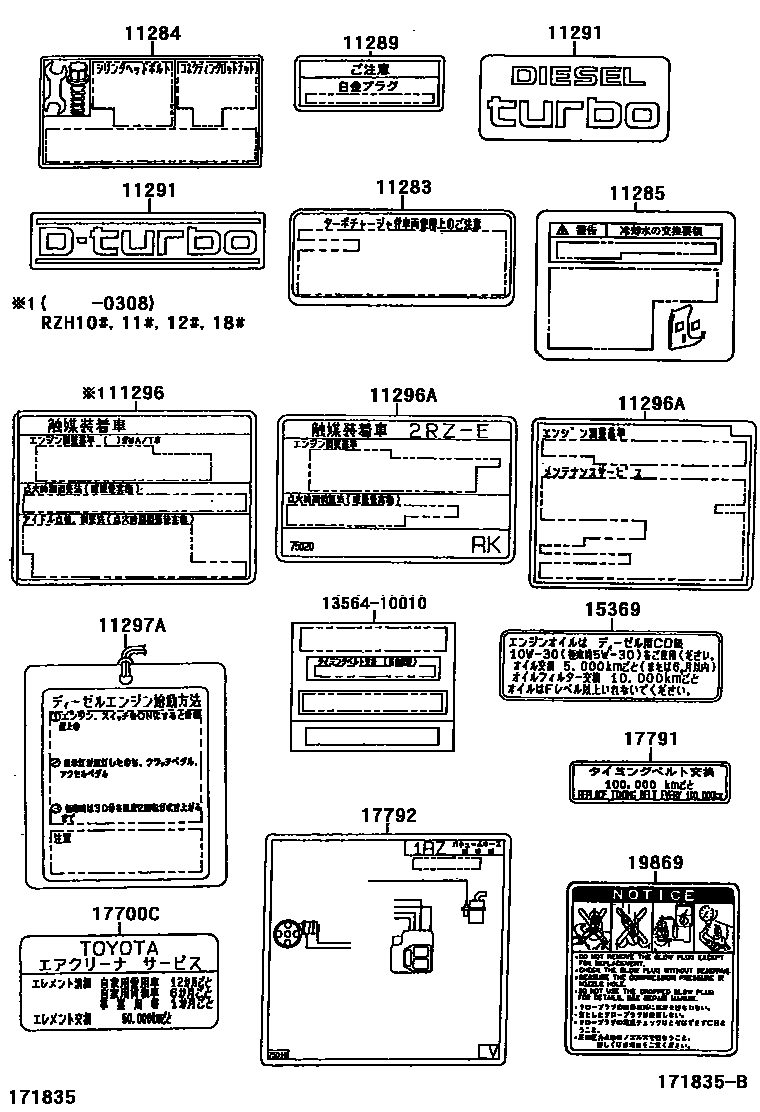

CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11294-55010i1KZTE,2LT#..KZH10#,11#,12#,LH100,120198908-199508

11284PLATE, ENGINE BOLT INFORMATION

main11284-54040i2L,2LT#,3L..LH10#,11#,12#,140198908-199403

main11284-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11284-75020i1RZE,2RZE..RZH10#,112,124199308-199408

11285PLATE, COOLANT SYSTEM CAUTION

main11285-54010i5L..LH16#,17#,18#199808-200408

11289PLATE, SPARK PLUG CAUTION

main11289-16010i1RZE,2RZE..RZH10#,11#,124198908-199508

11291PLATE, ENGINE NAME

main11291-54040i2LT..LH100,120198908-199010

sub11291-54080

main11291-54090i2LTE..LH100,120199010-199308

main11291-67010i1KZTE..KZH10#,11#,12#,13#199308-200408

11296PLATE, TIMING BELT CAUTION

main11296-75010i1RZE..RZH100,110198908-199508

main11296-75030i1RZ..RZH102,112,12#198908-199308

main11296-75040i1RZE..RZH102,112,124199308-199508

main11296-75080i1RZE,2RZE..RZH10#,11#,12#,18#199508-200205

main11296-75081i2RZE..RZH101,111200205-200308

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-54060i3L..LH10#,11#,12#199505-199808

main11296-54080i5L..LH16#,17#,18#199808-200008

sub11296-54081

main11296-54081i5L..LH16#,17#,18#200008-200205

main11296-54082i5L..LH16#,17#,18#200205-200208

main11296-54083i5L..LH16#,17#,18#200208-200408

main11296-67020i1KZTE..KZH10#,11#,12#,13#199505-199710

main11296-67040i1KZTE..KZH10#,11#,12#,13#199710-199907

main11296-67050i1KZTE..KZH10#,11#,120,13#199907-200004

sub11296-67051

main11296-67051i1KZTE..KZH10#,11#,120,13#200004-200205

main11296-67052i1KZTE..KZH10#,11#,120,13#200205-200408

main11296-75020i2RZE..RZH101198908-199508

11297APLATE, ENGINE START CAUTION

main11297-54010i2LTE..LH100,120199010-199508

main11297-54011i2L#,3L..LH10#,11#,12#,140199012-199312

main11297-64010i2L,2LT,3L..LH10#,11#,12#,140198908-199012

15369PLATE, ENGINE OIL CAUTION

main15369-54010i1KZTE,2L,2LT#,3L..KZH10#,11#,12#,LH10#,11#,12#,140198908-199505

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07095i1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#198908-199508

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i1KZTE..KZH10#,11#,12#,13#199202-200408

main17791-74040i5L..LH16#,17#,18#199708-200408

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-75010i1RZ..RZH102,112,12#198908-199205

main17792-75011i1RZ..RZH102,112,12#199205-199308

19869LABEL, GLOW PLUG CAUTION

main19869-67010i1KZTE..KZH10#,11#,12#,13#199308-199511

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

14 parts on this diagram · 1 diagram in section
