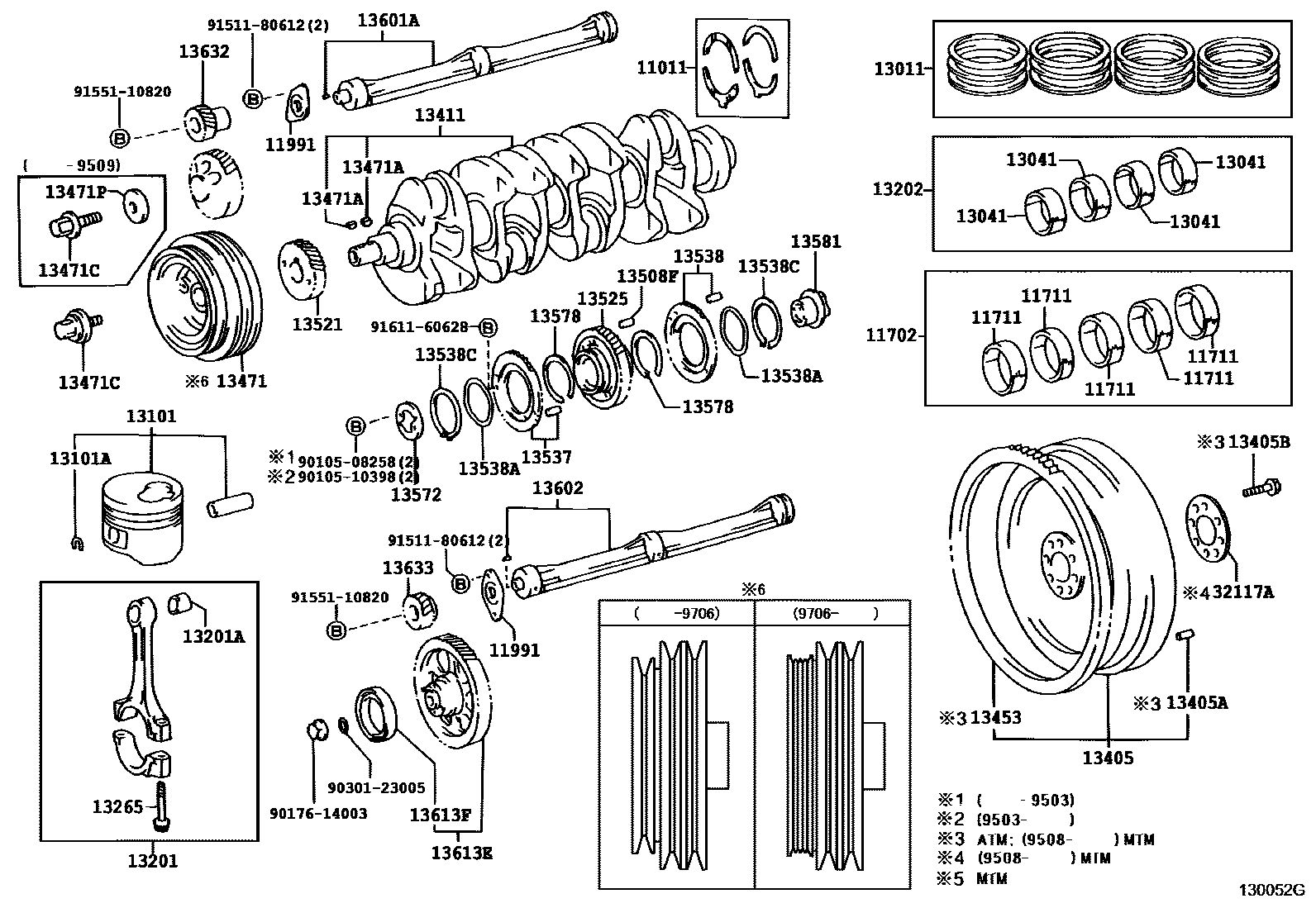

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0006 1 0007 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-30010i1KZTE..KZH10#,11#,120,13#200402-200408

main11011-54020i5L..LH16#,17#,18#199907-200408

main11011-67020i1KZTE..KZH10#,11#,120,13#199907-200402

main11011-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

main11011-75020×3i1TRFE..TRH102,112,12#200308-200408

main11012-30010i1KZTE..KZH10#,11#,120,13#200402-200408

main11012-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11012-67020i1KZTE..KZH10#,11#,120,13#199907-200402

main11013-30010i1KZTE..KZH10#,11#,120,13#200402-200408

main11013-54020i5L..LH16#,17#,18#199907-200408

main11013-67020i1KZTE..KZH10#,11#,120,13#199907-200402

11702BEARING SET, CRANKSHAFT

main11704-30020i1KZTE..KZH10#,11#,120,13#200402-200408

main11704-54061i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11704-54080i5L..LH16#,17#,18#200108-200408

sub11704-54081

main11704-67020i1KZTE..KZH10#,11#,120,13#199907-200008

main11704-67021i1KZTE..KZH10#,11#,120,13#200008-200402

main11704-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11704-75020i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11704-75021i1RZE,2RZE..RZH10#,11#,12#,133199904-199907

sub11704-75022

main11704-75031i1TRFE..TRH102,112,12#200308-200501

sub11704-75032

main11705-30020i1KZTE..KZH10#,11#,120,13#200402-200408

main11705-54061i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11705-54080i5L..LH16#,17#,18#200108-200408

sub11705-54081

main11705-67020i1KZTE..KZH10#,11#,120,13#199907-200008

main11705-67021i1KZTE..KZH10#,11#,120,13#200008-200402

11711BEARING, CRANKSHAFT

main11071-75010-01×3i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11071-75010-02×3i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11071-75010-03×3i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11071-75020-01×3i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11071-75020-02×3i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11071-75020-03×3i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11071-75021-01×3i1RZE,2RZE..RZH10#,11#,12#,133199904-199907

sub11071-75022

main11071-75021-02×3i1RZE,2RZE..RZH10#,11#,12#,133199904-199907

sub11071-75022

main11071-75021-03×3i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

sub11071-75022

main11701-30020-02×5i1KZTE..KZH10#,11#,120,13#200402

main11701-30020-03×5i1KZTE..KZH10#,11#,120,13#200402

main11701-30020-04×5i1KZTE..KZH10#,11#,120,13#200402

main11701-30020-05×5i1KZTE..KZH10#,11#,120,13#200402

main11701-30020-06×5i1KZTE..KZH10#,11#,120,13#200402

main11701-54061-01×5i5L..LH16#,17#,18#199907-200108

main11701-54061-02×5i5L..LH16#,17#,18#199907-200108

main11701-54061-03×5i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11701-54080-01×5i5L..LH16#,17#,18#200108-200408

sub11701-54081

main11701-54080-02×5i5L..LH16#,17#,18#200108-200408

sub11701-54081

main11701-54080-03×5i5L..LH16#,17#,18#200108-200408

sub11701-54081

main11701-67020-02×5i1KZTE..KZH10#,11#,12#,13#199308-199907

main11701-67020-03×5i1KZTE..KZH10#,11#,12#,13#199308-199907

main11701-67020-04×5i1KZTE..KZH10#,11#,12#,13#199308-199907

main11701-67020-05×5i1KZTE..KZH10#,11#,120,13#199907-200008

main11701-67020-06×5i1KZTE..KZH10#,11#,12#,13#199308-199907

main11701-67021-02×5i1KZTE..KZH10#,11#,120,13#200008-200402

main11701-67021-03×5i1KZTE..KZH10#,11#,120,13#200008-200402

main11701-67021-04×5i1KZTE..KZH10#,11#,120,13#200008-200402

main11701-67021-05×5i1KZTE..KZH10#,11#,120,13#200008-200402

main11701-67021-06×5i1KZTE..KZH10#,11#,120,13#200008-200402

main11701-75010-01×2i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11701-75010-02×2i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11701-75010-03×2i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main11701-75020-01×2i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11701-75020-02×2i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11701-75020-03×2i1RZE,2RZE..RZH10#,11#,12#,133199308-199904

main11701-75021-01×2i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

sub11701-75022

main11701-75021-02×2i1RZE,2RZE..RZH10#,11#,12#,133199904-199907

sub11701-75022

main11701-75021-03×2i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

sub11701-75022

main11701-75030-01×5i1TRFE..TRH102,112,12#200308-200402

main11701-75030-02×5i1TRFE..TRH102,112,12#200308-200402

main11701-75030-03×5i1TRFE..TRH102,112,12#200308-200402

main11701-75031-01×5i1TRFE..TRH102,112,12#200402-200501

sub11701-75032

main11701-75031-02×5i1TRFE..TRH102,112,12#200402-200501

sub11701-75032

main11701-75031-03×5i1TRFE..TRH102,112,12#200402-200501

sub11701-75032

11991WASHER, BALANCESHAFT THRUST

main11991-67010×2i1KZTE..KZH10#,11#,120,13#199907-200408

13011RING SET, PISTON

main13011-54100i2L,2LT#..LH100,102,110,120,140198908-199308

main13011-54120i3L..LH103,107,109,113,115,117,119,123,125,129198908-199808

main13011-54130i5L..LH16#,17#,18#199808-199907

main13011-67020i1KZTE..KZH10#,11#,12#,13#199308-199604

main13011-67030i1KZTE..KZH10#,11#,120,13#199907-200408

main13011-75020i1RZ#..RZH100,102,110,112,12#198908-199704

main13011-75030i2RZE..RZH101,111,133198908-199605

main13011-75070i2RZE..RZH101,111,125,133199605-199907

main13011-75080i1RZE..RZH102,112,124,182199907-200308

main13011-75100i1TRFE..TRH102,112,12#200308-200501

main13013-54100i2L,2LT#..LH100,102,110,120,140198908-199308

main13013-54120i3L..LH103,107,109,113,115,117,119,123,125,129198908-199808

main13013-54130i5L..LH16#,17#,18#199907-200408

main13013-67020i1KZTE..KZH10#,11#,12#,13#199308-199604

main13013-67030i1KZTE..KZH10#,11#,12#,13#199604-199907

main13013-75020i1RZE..RZH100,102,112,124199308-199704

main13013-75030i2RZE..RZH101,111,133198908-199605

main13013-75070i2RZE..RZH101,111,125,133199605-199907

main13013-75080i1RZE..RZH102,112,124,182199907-200308

main13013-75100i1TRFE..TRH102,112,12#200308-200501

main13014-54100i2L,2LT#..LH100,102,110,120,140198908-199308

main13014-67020i1KZTE..KZH10#,11#,12#,13#199308-199604

main13014-67030i1KZTE..KZH10#,11#,120,13#199907-200408

main13015-54100i2L,2LT#..LH100,102,110,120,140198908-199308

main13015-67020i1KZTE..KZH10#,11#,12#,13#199308-199604

main13015-67030i1KZTE..KZH10#,11#,120,13#199907-200408

13041BEARING, CONNECTING ROD

main13041-30020-02×4i1KZTE..KZH10#,11#,120,13#200402

main13041-30020-03×4i1KZTE..KZH10#,11#,120,13#200402

main13041-30020-04×4i1KZTE..KZH10#,11#,120,13#200402

main13041-30020-05×4i1KZTE..KZH10#,11#,120,13#200402

main13041-30020-06×4i1KZTE..KZH10#,11#,120,13#200402

main13041-54024-01×4i2L..LH100,102,110,140198908-199308

main13041-54024-02×4i2L..LH100,102,110,140198908-199308

main13041-54024-03×4i2L..LH100,102,110,140198908-199308

main13041-54041-01×4i5L..LH16#,17#,18#199907-200408

sub13041-54042

main13041-54041-02×4i2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18#198908-199907

sub13041-54042

main13041-54041-03×4i2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18#198908-199907

sub13041-54042

main13041-67030-02×4i1KZTE..KZH10#,11#,120,13#199907-200008

main13041-67030-03×4i1KZTE..KZH10#,11#,12#,13#199308-199907

main13041-67030-04×4i1KZTE..KZH10#,11#,12#,13#199308-199907

main13041-67030-05×4i1KZTE..KZH10#,11#,120,13#199907-200008

main13041-67030-06×4i1KZTE..KZH10#,11#,12#,13#199308-199907

main13041-67031-02×4i1KZTE..KZH10#,11#,120,13#200008-200402

main13041-67031-03×4i1KZTE..KZH10#,11#,120,13#200008-200402

main13041-67031-04×4i1KZTE..KZH10#,11#,120,13#200008-200402

main13041-67031-05×4i1KZTE..KZH10#,11#,120,13#200008-200402

main13041-67031-06×4i1KZTE..KZH10#,11#,120,13#200008-200402

main13041-75010-01×4i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main13041-75010-02×4i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main13041-75010-03×4i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main13041-75020-04×4i1RZE,2RZE..RZH10#,11#,124,133199308-199701

main13041-75020-05×4i1RZE,2RZE..RZH10#,11#,124,133199308-199701

main13041-75020-06×4i1RZE,2RZE..RZH10#,11#,124,133199308-199701

main13041-75021-04×4i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

sub13041-75022

main13041-75021-05×4i1RZE,2RZE..RZH10#,11#,12#,133199701-199907

sub13041-75022

main13041-75021-06×4i1RZE,2RZE..RZH10#,11#,12#,133199701-199907

sub13041-75022

main13041-75030-04×4i1TRFE..TRH102,112,12#200308-200501

MARK 4

sub13041-75050

main13041-75030-05×4i1TRFE..TRH102,112,12#200308-200501

MARK 5

sub13041-75050

main13041-75030-06×4i1TRFE..TRH102,112,12#200308-200501

MARK 6

sub13041-75050

13101PISTON SUB-ASSY, W/PIN

main13101-54070-01×4i2L..LH100,102,110,140198908-199308

main13101-54070-02×4i2L..LH100,102,110,140198908-199308

main13101-54070-03×4i2L..LH100,102,110,140198908-199308

main13101-54090-01×4i2LT#..LH100,120198908-199304

main13101-54090-02×4i2LT#..LH100,120198908-199304

main13101-54090-03×4i2LT#..LH100,120198908-199304

main13101-54091-01×4i2LTE..LH100,120199304-199308

main13101-54091-02×4i2LTE..LH100,120199304-199308

main13101-54091-03×4i2LTE..LH100,120199304-199308

main13101-54100-01×4i3L..LH107,109,113,115,117,119,123,125,129198908-199102

main13101-54100-02×4i3L..LH107,109,113,115,117,119,123,125,129198908-199102

main13101-54100-03×4i3L..LH107,109,113,115,117,119,123,125,129198908-199102

main13101-54101-01×4i3L..LH103,107,109,113,115,117,119,123,125,129199102-199808

main13101-54101-02×4i3L..LH103,107,109,113,115,117,119,123,125,129199102-199808

main13101-54101-03×4i3L..LH103,107,109,113,115,117,119,123,125,129199102-199808

main13101-54120-01×4i5L..LH16#,17#,18#199907-200408

main13101-54120-02×4i5L..LH16#,17#,18#199907-200408

main13101-54120-03×4i5L..LH16#,17#,18#199808-199907

main13101-67020-01×4i1KZTE..KZH10#,11#,12#,13#199308-199604

main13101-67020-02×4i1KZTE..KZH10#,11#,12#,13#199308-199604

main13101-67020-03×4i1KZTE..KZH10#,11#,12#,13#199308-199604

main13101-67030-01×4i1KZTE..KZH10#,11#,12#,13#199604-199907

main13101-67030-02×4i1KZTE..KZH10#,11#,12#,13#199604-199907

main13101-67030-03×4i1KZTE..KZH10#,11#,12#,13#199604-199907

main13101-67050-01×4i1KZTE..KZH10#,11#,120,13#199907-200408

main13101-67050-02×4i1KZTE..KZH10#,11#,120,13#199907-200408

main13101-67050-03×4i1KZTE..KZH10#,11#,120,13#199907-200408

main13101-75010×4i1RZ#..RZH100,102,110,112,12#198908-199704

main13101-75020×4i2RZE..RZH101198908-199508

main13101-75080×4i2RZE..RZH101,111,125,133199508-199907

main13101-75090×4i1RZE..RZH102,112,124,182199907-200308

main13101-75120×4i1TRFE..TRH102,112,12#200308-200501

main13103-54070×4i2L..LH100,102,110,140198908-199308

main13103-54090×4i2LT#..LH100,120198908-199304

main13103-54091×4i2LTE..LH100,120199304-199308

main13103-54100×4i3L..LH107,109,113,115,117,119,123,125,129198908-199102

main13103-54101×4i3L..LH103,107,109,113,115,117,119,123,125,129199102-199808

main13103-54120×4i5L..LH16#,17#,18#199907-200408

main13103-67020×4i1KZTE..KZH10#,11#,12#,13#199308-199604

main13103-67030×4i1KZTE..KZH10#,11#,12#,13#199604-199907

main13103-67050×4i1KZTE..KZH10#,11#,120,13#199907-200408

main13103-75010×4i1RZ#..RZH100,102,110,112,12#198908-199704

main13103-75020×4i2RZE..RZH101198908-199508

main13103-75080×4i2RZE..RZH101,111,125,183199907-200308

main13103-75090×4i1RZE..RZH102,112,124199704-199907

main13103-75120×4i1TRFE..TRH102,112,12#200308-200501

main13104-54070×4i2L..LH100,102,110,140198908-199308

main13104-54090×4i2LT#..LH100,120198908-199304

main13104-54091×4i2LTE..LH100,120199304-199308

main13104-67020×4i1KZTE..KZH10#,11#,12#,13#199308-199604

main13104-67030×4i1KZTE..KZH10#,11#,12#,13#199604-199907

main13104-67050×4i1KZTE..KZH10#,11#,120,13#199907-200408

main13105-54070×4i2L..LH100,102,110,140198908-199308

main13105-54090×4i2LT#..LH100,120198908-199304

main13105-54091×4i2LTE..LH100,120199304-199308

main13105-67020×4i1KZTE..KZH10#,11#,12#,13#199308-199604

main13105-67030×4i1KZTE..KZH10#,11#,12#,13#199604-199907

main13105-67050×4i1KZTE..KZH10#,11#,120,13#199907-200408

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i1TRFE..TRH102,112,12#200308-200501

main90520-37014×8i1KZTE..KZH10#,11#,12#,13#199308-199907

main90521-28003×8i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

main90521-29003×8i2L..LH100,102,110,140198908-199308

main90521-31001×8i2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18#198908-199907

13201ROD SUB-ASSY, CONNECTING

main13201-59095×4i2L..LH100,102,110,140198908-199308

sub13201-59096

main13201-59105×4i2LT#,3L..LH100,103,107,109,113,115,117,119,12#198908-199803

main13201-59106×4i5L..LH16#,17#,18#199907-200408

sub13201-59216

main13201-67020×4i1KZTE..KZH10#,11#,120,13#199907-200007

main13201-67021×4i1KZTE..KZH10#,11#,120,13#200007-200408

main13201-79165×4i1RZ#,2RZE..RZH10#,11#,12#198908-199102

main13201-79166×4i1RZ#,2RZE..RZH10#,11#,12#199102-199308

main13201-79167×4i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

sub13201-79565

main13201-79455i1TRFE..TRH102,112,12#200308-200501

sub13201-79476

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73114×4i2L..LH100,102,110,140198908-199308

main90999-73115×4i2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18#198908-199907

main90999-73125×4i1RZ#,2RZE..RZH10#,11#,12#198908-199001

main90999-73129×4i1RZ#,2RZE..RZH10#,11#,12#,133199001-199907

main90999-73136×4i1KZTE..KZH10#,11#,12#,13#199308-199907

13202BEARING SET, CONNECTING ROD

main13204-30020i1KZTE..KZH10#,11#,120,13#200402-200408

main13204-54024i2L..LH100,102,110,140198908-199308

main13204-54041i2LT#,3L,5L..LH100,103,107,109,113,115,117,119,12#,16#,17#,18#198908-199907

sub13204-54042

main13204-67030i1KZTE..KZH10#,11#,120,13#199907-200008

main13204-67031i1KZTE..KZH10#,11#,120,13#200008-200402

main13204-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main13204-75020i1RZE,2RZE..RZH10#,11#,124,133199308-199701

main13204-75021i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

sub13204-75022

main13204-75030i1TRFE..TRH102,112,12#200308-200501

sub13204-75050

main13205-30020i1KZTE..KZH10#,11#,120,13#200402-200408

main13205-54024i2L..LH100,102,110,140198908-199308

main13205-54041i2LT#,3L..LH100,103,107,109,113,115,117,119,12#198908-199508

sub13205-54042

main13205-67030i1KZTE..KZH10#,11#,120,13#199907-200008

main13205-67031i1KZTE..KZH10#,11#,120,13#200008-200402

13265BOLT, CONNECTING ROD

main13265-28010×8i1TRFE..TRH102,112,12#200308-200501

sub13265-28020

main13265-54020×8i2L,2LT#,3L..LH10#,11#,12#,140198908-199803

main13265-54021×8i3L,5L..LH10#,11#,12#,16#,17#,18#199803-199907

main13265-67020×8i1KZTE..KZH10#,11#,120,13#199907-200007

main13265-67021×8i1KZTE..KZH10#,11#,120,13#200007-200408

main13265-75010×8i1RZ#,2RZE..RZH10#,11#,12#198908-199102

main13265-75011×8i1RZ#,2RZE..RZH10#,11#,12#199102-199308

main13265-75030×8i1RZE,2RZE..RZH10#,11#,12#,133199308-199907

13405FLYWHEEL SUB-ASSY

main13405-05070i5L..LH16#,17#,18#..5F200204-200408

main13405-54012i2L..LH102..5F198908-199205

main13405-54060i2L,2LT..LH100,110,120,140..5F198908-199205

main13405-54070i3L..LH113,115,123,125..5F198908-199205

main13405-54080i3L,5L..LH10#,11#,12#,16#,17#,18#..5F199508-199907

main13405-67030i1KZTE..KZH10#,11#,120,13#..4FC199308-199907

main13405-67050i1KZTE..KZH10#,11#,126..5F199508-199907

main13405-75010i1RZE..RZH100,110..5F198908-199308

main13405-75030i1RZ..RZH102,112,12#..5F198908-199308

main13405-75050i1TRFE..TRH102,112,12#..5F200308-200501

main13450-54020i3L..LH107..5F198908-199003

main13450-54040i2LTE,3L..LH100,107,117,120..5F199003-199205

sub13450-54041

main13450-54050i2LTE,3L..LH100,107,117,120..5F199205-199308

sub13450-54051

main13450-67010i1KZTE..KZH10#,11#,12#..5F199308-199508

sub13450-67011

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1KZTE..KZH10#,11#,120,13#199907-200408

main90250-08054×3i3L,5L..LH10#,11#,12#,16#,17#,18#..5F199508-199907

main90250-10192×3i1KZTE..KZH10#,11#,126..5F199508-199907

13405BBOLT, FLYWHEEL SETTING

main90105-10207×10i1RZ#..RZH100,102,110,112,122,124..5F198908-199907

main90105-12109×8i5L..LH16#,17#,18#..5F199907-200408

main90105-12172×8i2LTE,3L..LH100,107,117,120..5F198908-199308

main90105-13009×8i1KZTE..KZH10#,11#,12#..5F199308-199508

main90105-13010×8i1KZTE..KZH10#,11#,126..5F199508-199907

main90910-02116×10i1TRFE..TRH102,112,12#..5F200308-200501

13411CRANKSHAFT

main13401-30010i1KZTE..KZH10#,11#,120,13#200005-200408

main13401-54040i2L..LH100,102,110,140198908-199308

main13401-54060i3L..LH103,107,109,113,115,117,119,123,125,129198908-199608

main13401-54061i5L..LH16#,17#,18#199907-200209

main13401-54070i2LT#..LH100,120198908-199308

main13401-54100i5L..LH16#,17#,18#200209-200408

main13401-67010i1KZTE..KZH10#,11#,120,13#199907-200005

main13401-75010i1TRFE..TRH102,112,12#200308-200501

sub13401-0C030

main13411-75900i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

13453GEAR, FLYWHEEL RING

main13453-05010i5L..LH16#,17#,18#..5F200301-200408

main13453-0W010i1RZE..RZH100,102,112,124..5F199501-199907

main13453-20010i1RZE..RZH102,112,124,182..5F199907-200308

main13453-54010i5L..LH16#,17#,18#..5F199907-200301

main13453-67020i1KZTE..KZH10#,11#,12#,13#199508-199701

main13453-67030i1KZTE..KZH10#,11#,120,13#199907-200408

13471PULLEY, CRANKSHAFT

main13408-54070i2L,2LT#,3L..LH10#,11#,12#,140198908-199505

main13408-54080i3L..LH10#,11#,12#199505-199605

main13408-54090i3L,5L..LH10#,11#,12#,16#,17#,18#199605-199907

main13408-67020i1KZTE..KZH10#,11#,12#,13#199308-199706

main13408-67030i1KZTE..KZH10#,11#,120,13#199907-200408

main13408-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main13408-75020i1RZE,2RZE..RZH10#,112,124199308-199502

main13408-75030i1RZE,2RZE..RZH10#,11#,12#,133199502-199907

main13408-75040i1TRFE..TRH102,112,12#200308-200501

sub13408-75050

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main95161-20519i1RZ#,2RZE..RZH10#,11#,12#198908-199303

main95161-20622i2L,2LT#,3L..LH10#,11#,12#,140198908-199205

main95161-30516×2i1KZTE..KZH10#,11#,12#,13#199308-199907

main95161-30622i5L..LH16#,17#,18#199907-200408

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16033i1RZ#,2RZE..RZH10#,11#,12#198908-199003

main90105-16041i1RZ#,2RZE..RZH10#,11#,12#,133199003-199907

main90105-18010i1KZTE..KZH10#,11#,12#,13#199308-199509

main90119-14005i2L#,3L..LH10#,11#,12#198908-198910

main90119-14031i2L,2LT#,3L..LH10#,11#,12#,140198910-199310

main90119-18003i1KZTE..KZH10#,11#,120,13#199907-200408

main90901-19028i5L..LH16#,17#,18#199907-200408

13471PSPACER(FOR CRANKSHAFT PULLEY)

main90560-19006i1KZTE..KZH10#,11#,12#,13#199308-199509

main90561-33001i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

13508FPIN, STRAIGHT(FOR IDLE GEAR)

main90250-05027×4i1KZTE..KZH10#,11#,12#,13#199308-199907

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-67020i1KZTE..KZH10#,11#,120,13#199907-200408

main13521-75010i1RZE,2RZE..RZH10#,11#,12#,18#199907-200308

main13521-75020i1TRFE..TRH102,112,12#200308-200501

sub13521-75021

13525GEAR, IDLE, NO.1

main13508-67011i1KZTE..KZH10#,11#,120,13#199907-200408

main13508-67900i1KZTE..KZH10#,11#,12#,13#199308-199907

13537GEAR, IDLE SUB, NO.1

main13537-67900i1KZTE..KZH10#,11#,12#,13#199308-199907

13538GEAR, IDLE SUB, NO.2

main13538-67900i1KZTE..KZH10#,11#,12#,13#199308-199907

13538AWASHER, WAVE

main90206-69001×2i1KZTE..KZH10#,11#,12#,13#199308-199907

13538CRING, SHAFT SNAP

main90520-58002×2i1KZTE..KZH10#,11#,12#,13#199308-199907

13572PLATE, IDLE GEAR THRUST

main13572-67040i1KZTE..KZH10#,11#,12#199308-199503

main13572-67041i1KZTE..KZH10#,11#,12#,13#199503-199907

13578SPRING, IDLE GEAR

main13578-67010×2i1KZTE..KZH10#,11#,12#,13#199308-199907

13581SHAFT, IDLE GEAR, NO.1

main13581-67040i1KZTE..KZH10#,11#,12#199308-199503

main13581-67041i1KZTE..KZH10#,11#,12#,13#199503-199907

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-67010i1KZTE..KZH10#,11#,12#,13#199308-199903

main13601-67020i1KZTE..KZH10#,11#,12#,13#199903-199907

sub13601-0L020

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-67010i1KZTE..KZH10#,11#,12#,13#199308-199903

main13602-67020i1KZTE..KZH10#,11#,12#,13#199903-199907

sub13602-0L020

13613EGEAR, INJECTION

main13613-67900i1KZTE..KZH10#,11#,12#,13#199308-199907

main13613-67902i1KZTE..KZH10#,11#,120,13#199907-200408

13613FBEARING, RADIAL BALL

main90363-60004i1KZTE..KZH10#,11#,12#,13#199308-199907

13632GEAR, BALANCESHAFT DRIVEN, NO.1

main13632-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

13633GEAR, BALANCESHAFT DRIVEN, NO.2

main13633-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

32117ASPACER, FLYWHEEL PLATE

main32117-60050iKZH10#,11#,126..5F199508-199907

9010508258

main90105-08258

9010510398

main90105-10398

9017614003

main90176-14003

9030123005

main90301-23005

9151180612

main91511-80612

9155110820

main91551-10820

9161160628

main91611-60628

45 parts on this diagram · 5 diagrams in section
