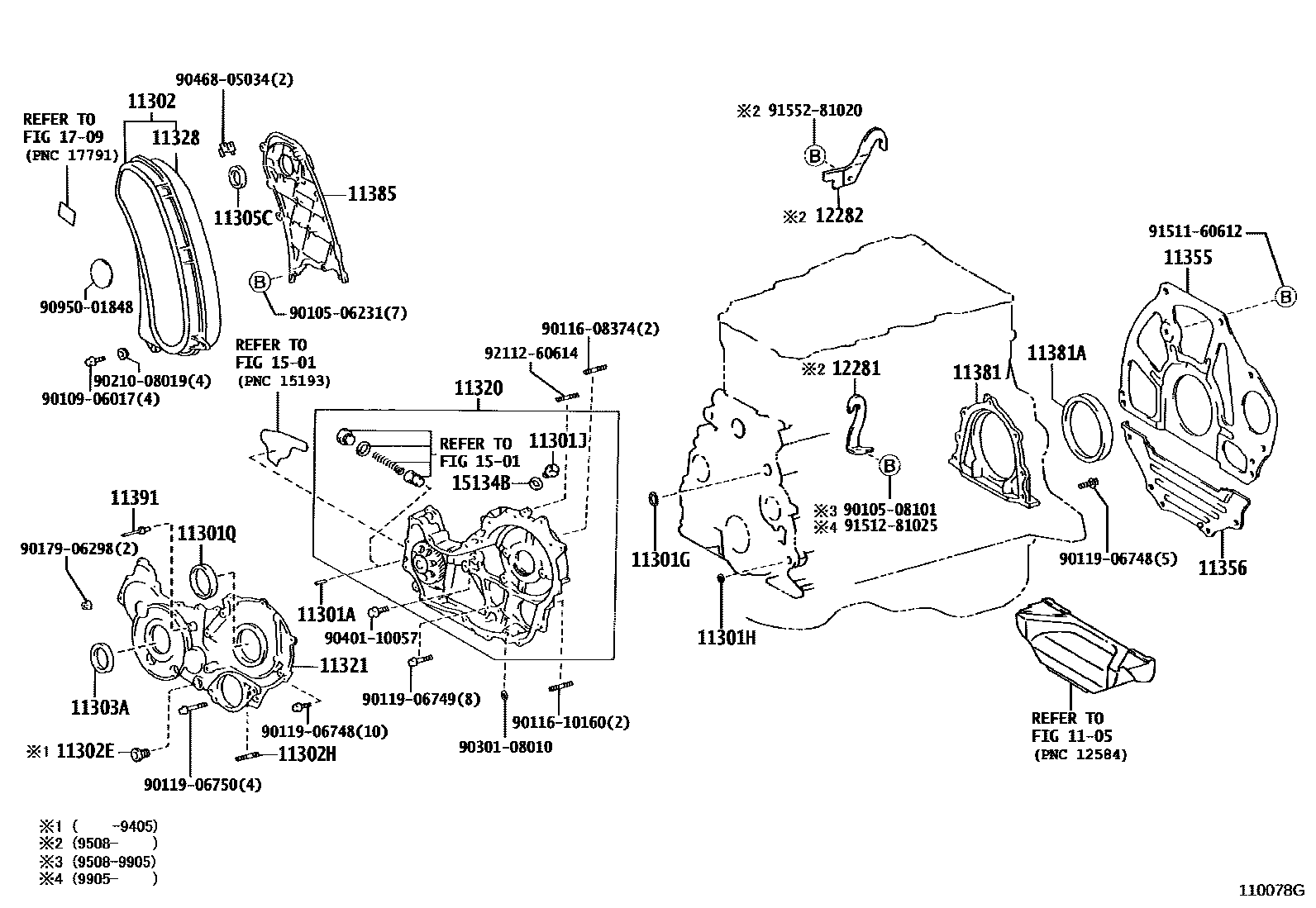

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

11301CASE SUB-ASSY, TIMING GEAR

main11301-75010i1RZ#,2RZE..RZH10#,11#,12#198908-199401

main11301-75011i1RZE,2RZE..RZH10#,112,124199401-199508

main11301-75050i1RZE,2RZE..RZH10#,11#,12#,133199508-199907

main11311-05012i5L..LH16#,17#,18#199907-200312

main11311-54050i2L,2LT#,3L..LH10#,11#,12#,140198908-199108

main11311-54051i2L#,3L..LH10#,11#,12#,140199108-199505

sub15115-54022

main11311-54052i3L,5L..LH10#,11#,12#,16#,17#,18#199505-199907

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i1KZTE..KZH10#,11#,12#,13#199308-199907

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i1KZTE..KZH10#,11#,12#,13#199610-199907

main90301-25014i1TRFE..TRH102,112,12#200308-200501

main96721-24022i1KZTE..KZH10#,11#,12#,13#199308-199610

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KZTE..KZH10#,11#,12#,13#199610-199907

main96721-24010i1KZTE..KZH10#,11#,12#,13#199308-199610

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-16022i1TRFE..TRH102,112,12#200308-200501

main90341-18015i1KZTE..KZH10#,11#,120,13#199907-200408

11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)

main90311-58006i1KZTE..KZH10#,11#,12#,13#199308-199907

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-67010i1KZTE..KZH10#,11#,12#,13#199308-199704

main11302-67020i1KZTE..KZH10#,11#,120,13#199907-200408

main11310-75060i1TRFE..TRH102,112,12#200308-200403

main11310-75061i1TRFE..TRH102,112,12#200403-200501

sub11310-75062

main11321-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

sub11321-54021

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main90341-22004i1KZTE..KZH10#,11#,12#199308-199405

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376×2i1KZTE..KZH10#,11#,120,13#199907-200408

sub90116-08377

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-42012i2L,2LT#,3L..LH10#,11#,12#,140198908-199102

main90311-42026i2L#,3L..LH10#,11#,12#,140199102-199312

main90311-42030i3L..LH10#,11#,12#199401-199605

main90311-42031i5L..LH16#,17#,18#199907-200408

main90311-48014i1RZE,2RZE..RZH10#,11#,12#199907-200009

main90311-48020i1TRFE..TRH102,112,12#200308-200501

main90311-50017i1KZTE..KZH10#,11#,12#,13#199308-199907

sub90311-50051

11305CSEAL, OIL(FOR CAMSHAFT)

main90311-32001i2L,2LT#,3L..LH10#,11#,12#,140198908-199102

sub90311-32018

main90311-32017i2L#,3L..LH10#,11#,12#,140199102-199702

sub90311-32020

main90311-32019i1KZTE..KZH10#,11#,120,13#199907-200408

11320CASE ASSY, TIMING GEAR

main11320-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

11321CASE, TIMING GEAR

main11321-67030i1KZTE..KZH10#,11#,12#199308-199405

main11321-67031i1KZTE..KZH10#,11#,12#,13#199405-199907

main11321-67032i1KZTE..KZH10#,11#,120,13#200006-200408

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54021i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11328-67020i1KZTE..KZH10#,11#,120,13#199907-200408

main11328-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

11355PLATE, REAR END

main11355-54030i5L..LH162,172,182,184..5F199907-200408

main11355-54040i5L..LH162..V1..4FC;2L,2LT#,3L,5L..LH100,102,103,113,120,123,172,182,184..4FC198908-199907

main11355-54080i2LT#,3L,5L..LH100,107,109,117,119,120,129,168,178,186,188..5F198908-199907

main11355-54090i3L,5L..LH107,119,129,178,186,188..4FC198908-199907

main11355-67010i1KZTE..KZH10#,11#,120,13#199907-200408

main11355-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

main11355-75020i1TRFE..TRH102,112,12#200308-200403

main11355-75021i1TRFE..TRH102,112,12#200403-200501

11356PLATE, REAR END, NO.2

main11356-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

main11356-67050i1KZTE..KZH10#,11#,120,13#200005-200408

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

sub90116-08404

main11381-54030i5L..LH16#,17#,18#199909-200408

main11381-67020i1KZTE..KZH10#,11#,12#,13#199308-199907

main11381-75010i1RZ#,2RZE..RZH10#,11#,12#,133198908-199907

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-85004i2L,2LT#,3L..LH10#,11#,12#,140198908-199102

main90311-85006i2L#,3L..LH10#,11#,12#,140199102-199209

sub90311-85009

main90311-85007i2L#,3L..LH10#,11#,12#,140199209-199703

main90311-85008i3L,5L..LH10#,11#,12#,16#,17#,18#199703-199907

main90311-88001i1RZ#,2RZE..RZH10#,11#,12#198908-199308

main90311-88003i1RZE,2RZE..RZH10#,11#,12#199907-200008

main90311-88005i1TRFE..TRH102,112,12#200308-200501

sub90311-88006

main90311-95008i1KZTE..KZH10#,11#,120,13#199907-200408

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11382-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

11391POINTER, TIMING

main11391-54020i2L,2LT#,3L,5L..LH10#,11#,12#,140,16#,17#,18#198908-199907

main11391-67010i1KZTE..KZH10#,11#,120,13#199907-200408

12281HANGER, ENGINE, NO.1

main12281-67040i1KZTE..KZH10#,11#,12#,13#199508-199905

main12281-67070i1KZTE..KZH10#,11#,12#,13#199905-199907

12282HANGER, ENGINE, NO.2

main12282-54060i3L,5L..LH10#,11#,12#,16#,17#,18#199606-199907

main12282-67030i1KZTE..KZH10#,11#,12#,13#199508-199907

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KZTE..KZH10#,11#,12#,13#199308-199907

1709

9010506231

main90105-06231

9010508101

main90105-08101

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

9046805034

main90468-05034

9095001848

main90950-01848

9151160612

main91511-60612

9151281025

main91512-81025

9155281020

main91552-81020

9211260614

main92112-60614

44 parts on this diagram · 6 diagrams in section
