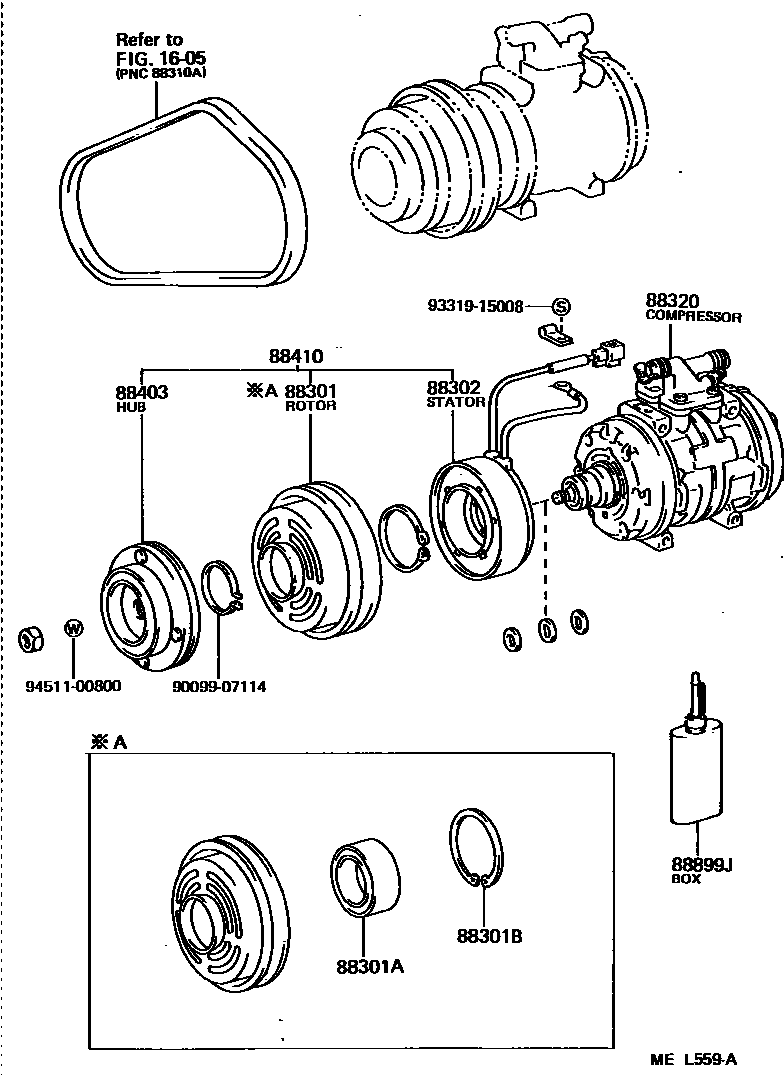

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLH51,61,71..(COM,WG)..(HRF,SRF)198804-198908

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133iLH51..07S198708-198808

88301BRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLH61..15S198708-198908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH71..10S,15S;LH61..(DX,SGL)..(05S,10S,15S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)198708-198804

main88411-30380iYH51,61..VSG..ATM198808-198908

88320COMPRESSOR ASSY, COOLER

main88320-26121iLH51,61,71..(COM,WG)..(HRF,SRF)..DSL198804-198908

main88320-26142iYH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S)198708-198908

main88320-26162iYH50..06S;YH61..SRF..V4D..DX..ST198708-198908

main88320-26201iLH51..07S198708-198908

main88320-26270iLH66..SGL..08S198804-198908

sub88320-26271

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iLH51..4FC..08S198808-198908

main88403-14030iLH71..10S,15S;LH61..(DX,SGL)..(05S,10S,15S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)..DSL198708-198908

88410CLUTCH ASSY, MAGNET

main88410-22080iLH71..10S,15S;LH61..(DX,SGL)..(05S,10S,15S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)198708-198804

sub88410-60140

main88410-26040iYH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S)198708-198908

sub88410-26070

main88410-26050iLH56,66..(DX,GL)..05S198708-198908

main88410-30380iYH50..06S;YH61..SRF..V4D..DX..ST198708-198908

88899JCASE, OIL

main88899-87011iLH51..4FC..08S198708-198908

9009907114

main90099-07114

9331915008

main93319-15008

9451100800

main94511-00800

12 parts on this diagram · 2 diagrams in section
