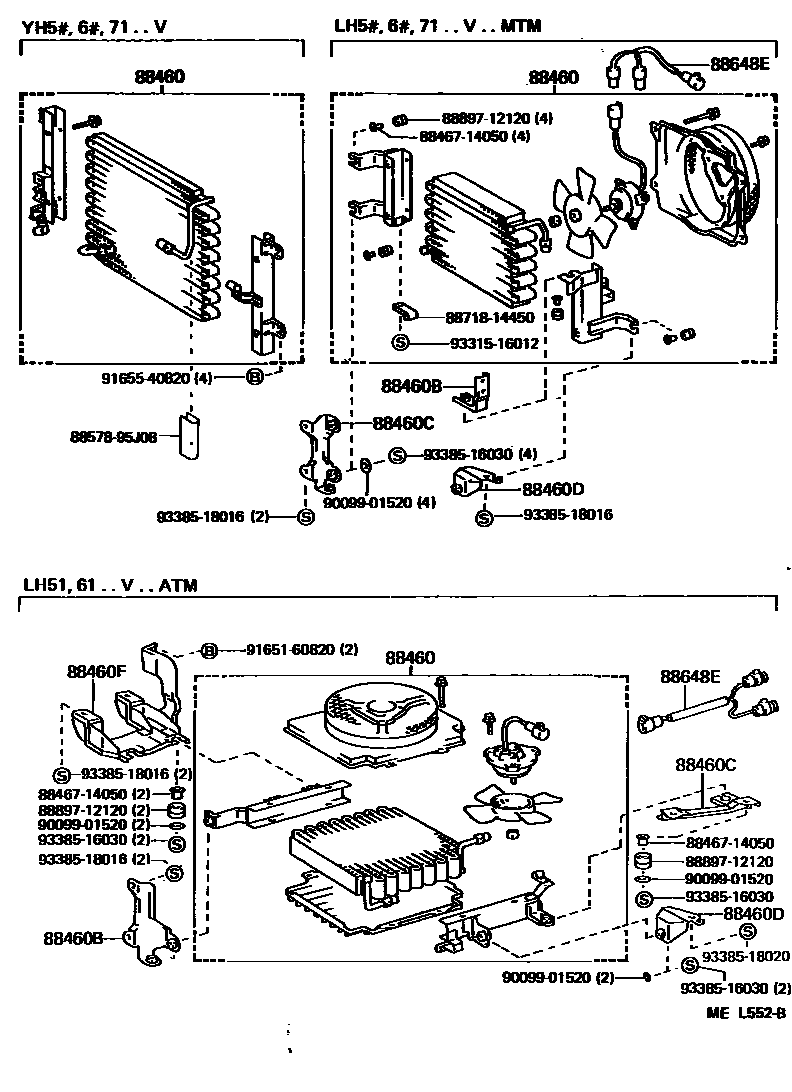

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1��������� 0016 1

88460CONDENSER ASSY, COOLER

main88460-95J00iYH51..07S198708-198908

RADIATOR

main88460-95J03iYH61..DX..09S198708-198908

FR CROSS MEMBER

main88460-95J03iYH61..DX..09S198708-198908

main88460-95J03iYH61..GL..09S;LH66,YH57..SCM,SGL;LH66,YH61..DX..(08S,10S);LH51,61,71,YH51,71..(DX,GL)..(09S,10S,15S)198708-198908

main88460-95J04iLH51,61..ATM..(CTM,SGL)198708-198908

RR UNDER FLOOR

main88460-95J05iLH51,61..ATM..(CTM,SGL)..DSL198708-198908

main88460-95J05iLH51,61..ATM..(CTM,SGL)..DSL198708-198908

FR UNDER FLOOR

main88460-95J06iLH51..MRF..DSL198708-198908

FR UNDER FLOOR

main88460-95J07iLH51,61,YH51,61..VSG..ATM198708-198908

FR UNDER FLOOR

main88460-95J07iLH51,61..VSG..ATM198804-198808

main88460-95J09iLH66..DX..08S;LH5#,6#,71..V..MTM..(CD,DX,GL)..(03S,05S,06S,09S)198708-198908

main88460-95J12iLH51..07S198708-198908

FR UNDER FLOOR

main88460-95J14iYH51..CTM,SCL;YH51..SRF..08S;LH51..SRF..MTM..(CTM,SCM)198708-198908

FR CROSS MEMBER

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-95J01iLH51..4HC..09S..DSL198708-198908

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-95J03iLH51..4HC..09S..DSL198708-198908

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-95J56iLH66..V4D..DX..05S198708-198908

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-95J00iLH51,61,71..(HRF,SRF)..(08S,09S,10S,15S)..DSL198708-198908

88648EWIRING, COOLER

main88648-95J03iLH51..07S198708-198908

main88648-95J20iLH51..MRF..DSL198708-198908

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8857895J08PAKING, COOLER AIR DUCT

main88578-95J08

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8889712120VALVE, COOLER MAGNET

main88897-12120

9009901520

main90099-01520

9165160820

main91651-60820

9165540820

main91655-40820

9331516012

main93315-16012

9338516030

main93385-16030

9338518016

main93385-18016

9338518020

main93385-18020

17 parts on this diagram · 16 diagrams in section
