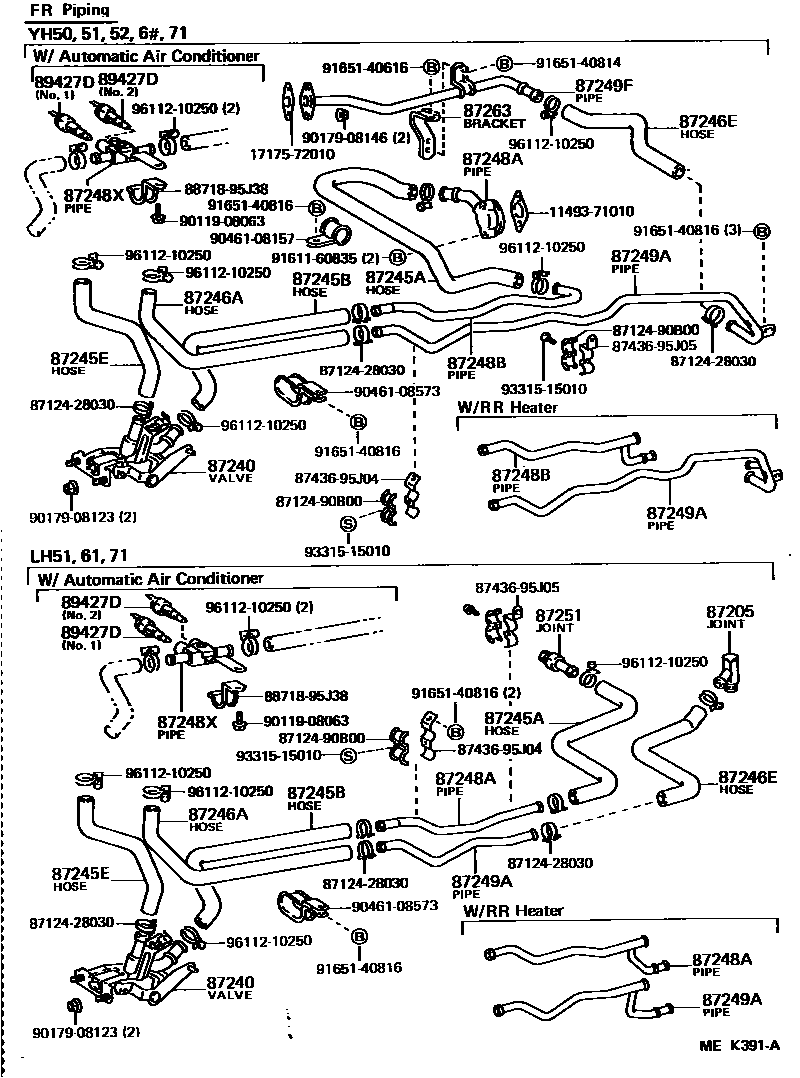

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1 0022 1������ ���- OR ���� ���

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30230iLH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)..DSL198708-198908

main90404-54023iLH51..09S..TD;LH51,61,71..WG..(4FC,5F,5H)198708-198908

87240VALVE ASSY, HEATER WATER

main87240-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

87245AHOSE, HEATER WATER, INLET A

main87245-95J10iYH50,51,52,6#,71198708-198908

main87245-95J33iYH57198708-198908

main87245-95J40iLH51,61,71198708-198908

main87245-95J41iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

87245BHOSE, HEATER WATER, INLET B

main87245-95J27iLH51,61,71,YH50,51,52,6#,71198708-198908

main87245-95J29iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main99556-30500iYH57198708-198908

87245EHOSE, HEATER WATER, INLET E

main87245-95J42iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

87246AHOSE, HEATER WATER, OUTLET A

main87245-95J26iLH51,61,71,YH50,51,52,6#,71198708-198908

main87245-95J28iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

87246EHOSE, HEATER WATER, OUTLET E

main87245-95J12iYH50,51,52,6#,71198708-198908

main87245-95J13iLH51,61,71198708-198908

main87245-95J31iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main87245-95J34iYH57198708-198908

87248APIPE, HEATER WATER INLET, A

main87208-28010iYH5#,6#,71198708-198908

main87248-95J58iLH51,71..(COM,WG)..(CTM,GL,SCL,SCM)198708-198908

main87248-95J62iLH71..DX;LH51,61..CD,DX,GL,SGL198708-198908

87248BPIPE, HEATER WATER INLET, B

main87248-14090iYH57198708-198908

main87248-95J39iLH61..06S..WT198708-198908

main87248-95J56iYH71..15S198712-198908

main87248-95J60iYH50,51,52,6#,71..CD,DX,GL198708-198908

main87248-95J66iLH51,71..(COM,WG)..(CTM,GL,SCL,SCM)198708-198908

87248XPIPE, HEATER WATER

main87248-95J54iLH51,YH51..07S198708-198712

main87248-95J67iLH51,YH51..07S198712-198908

87249APIPE, HEATER WATER OUTLET, A

main87248-95J55iYH71..15S198712-198908

main87248-95J57iLH71..10S198708-198908

main87248-95J59iYH50,51,52,6#,71..CD,DX,GL198708-198908

main87248-95J61iLH71..DX;LH51,61..CD,DX,GL,SGL198708-198908

87249FPIPE, HEATER WATER OUTLET, F

main87208-28021iYH5#,6#,71198708-198908

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iLH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S198708-198908

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-28011iYH5#,6#,71198708-198908

89427DSWITCH, TEMPERATURE

main83430-30010iLH51,YH51..07S198708-198908

main83430-30020iLH51,YH51..07S198708-198908

main89427-12051iYH57198808-198908

1149371010GASKET, WATER SEAL PLATE

main11493-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712428030CLAMP, HEATER

main87124-28030

8712490B00CLAMP, HEATER

main87124-90B00

8743695J04

main87436-95J04

8743695J05

main87436-95J05

8871895J38PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95J38

9011908063

main90119-08063

9017908123

main90179-08123

9017908146

main90179-08146

9046108157

main90461-08157

9046108573

main90461-08573

9161160835

main91611-60835

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9331515010

main93315-15010

9611210250

main96112-10250

33 parts on this diagram · 22 diagrams in section
