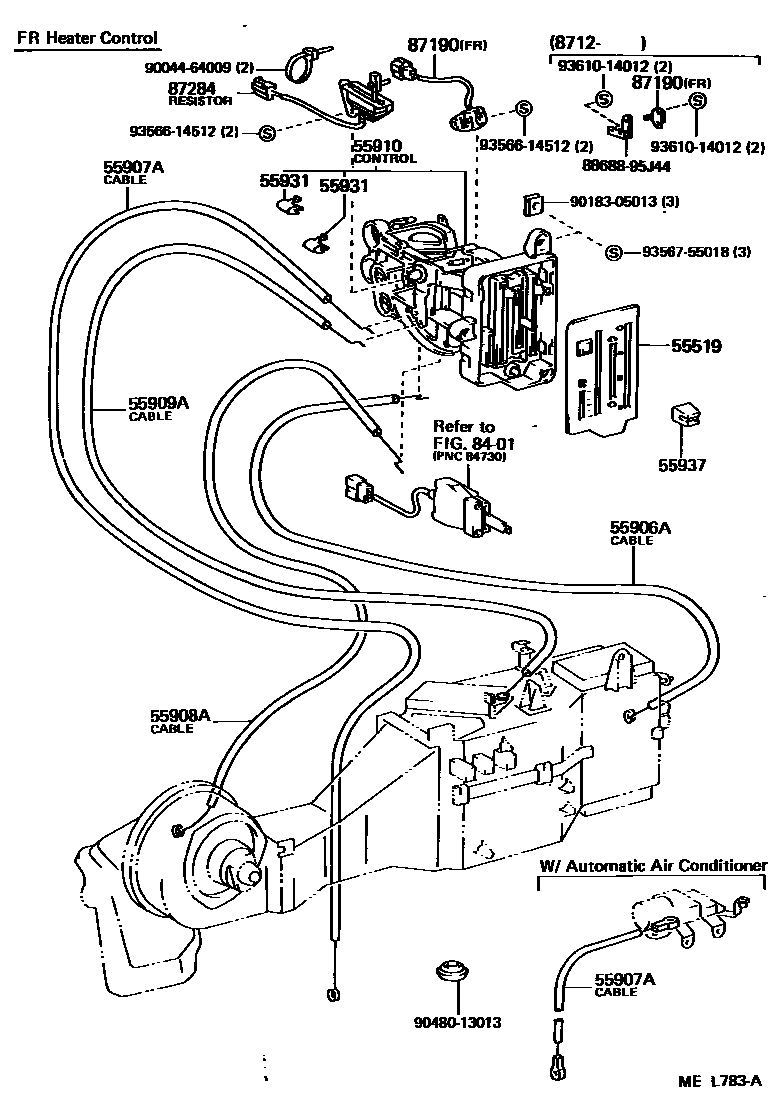

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55519PLATE, HEATER CONTROL NAME

main55519-95J04iLH61..15S198708-198908

main55519-95J05iLH61,YH61..06S..WT;LH6#,YH61..V5D..(05S,06S)..ST198708-198908

main55519-95J15iYH51..07S198808-198908

main55519-95J16iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main55519-95J18iLH51,YH51..07S198708-198908

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

main55906-95J01iLH51,YH51..07S198708-198908

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main55907-95J03iLH51,YH51..07S198708-198908

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

FR

main55910-95J04iLH61..15S198708-198908

RR

main55910-95J05iLH51,YH51,57..07S,08S198708-198908

RR

main55910-95J15iLH51,YH51..07S198708-198712

FR

main55910-95J16iLH51,YH51..07S198712-198908

FR

55931CLAMP, HEATER CONTROL WIRE

main55933-24010×4iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

55937KNOB, HEATER CONTROL LEVER

main55905-10110×3iLH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL198708-198908

FR HEATER,DEF,WARM,HI

main55905-12070iYH61..WT;LH66,YH61..V5D..(05S,06S)..ST198708-198808

main55905-95703iLH61..15S198708-198908

main55905-95707iLH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL198708-198908

FR HEATER,FRESH

main55905-95J00iLH51,YH51,57..07S,08S198708-198908

RR HEATER

8401

87190SWITCH ASSY, TEMPERATURE CONTROL

main84660-95J03iLH51,YH51..07S198708-198712

FR

main84660-95J05iLH51,YH51..07S198708-198908

RR

main84660-95J09iLH51,YH51..07S198712-198908

FR

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95J01iLH51,YH51..07S198708-198908

8868895J44BRACKET, COOLER DIAPHRAGM

main88688-95J44

9004464009

main90044-64009

9018305013

main90183-05013

9048013013

main90480-13013

9356614512

main93566-14512

9356755018

main93567-55018

9361014012

main93610-14012

18 parts on this diagram · 8 diagrams in section
