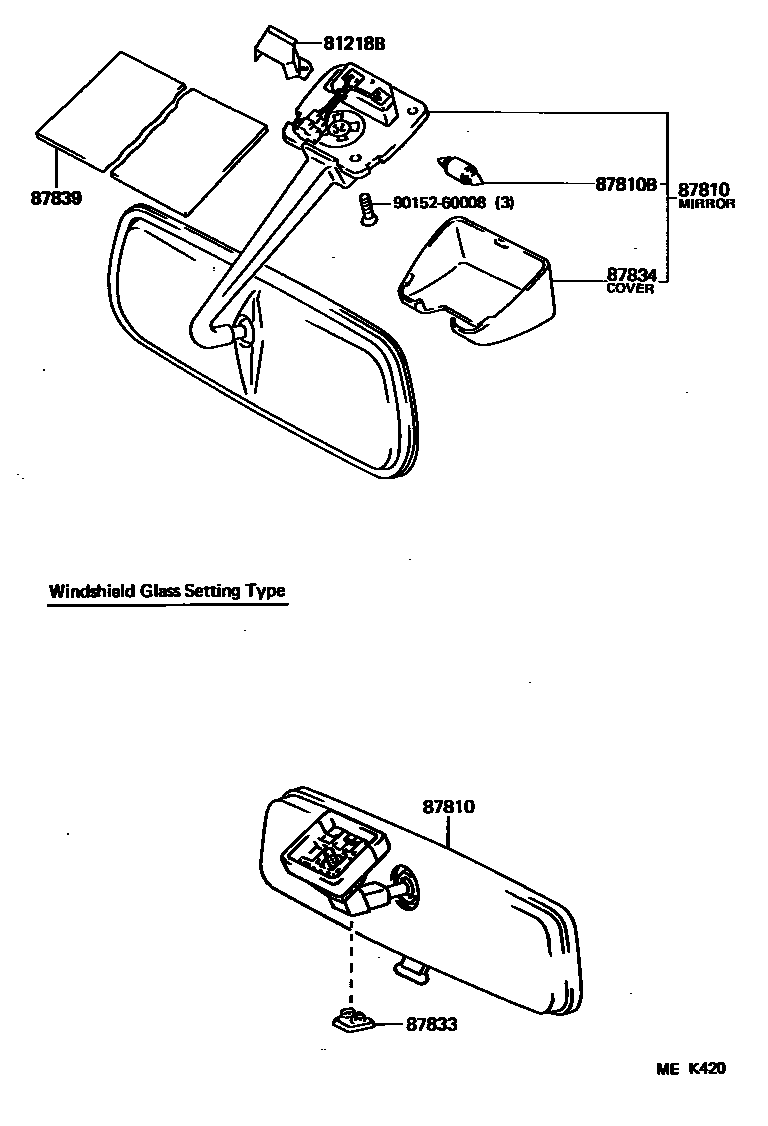

MIRROR

0001 1 0002 1 0003 1 0004 1

81218BBRACKET

main81218-90C00iLH61,71,YH61,71..(V,WG)..HRF198708-198908

87810MIRROR ASSY, INNER REAR VIEW

main87810-95704iLH61,71..10S198708-198908

main87810-95704iLH61,71..10S198708-198908

main87810-95705iLH71..10S198708-198908

main87810-95J00iLH5#,6#,71,YH50,51,52,6#,71..CD,DX198708-198908

main87810-95J01iLH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCM,SGL198708-198908

main87810-95J08iLH51,YH51..07S198708-198908

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

87833CAP, INNER MIRROR SERVICE HOLE

main87833-95J00iLH51,YH51..07S198708-198908

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iYH61..10S198708-198908

main81243-95701iYH61..10S198708-198908

main81243-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL198708-198908

87839PACKING, INNER REAR VIEW MIRROR

main87839-95J00iLH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

9015260008

main90152-60008

7 parts on this diagram · 4 diagrams in section
