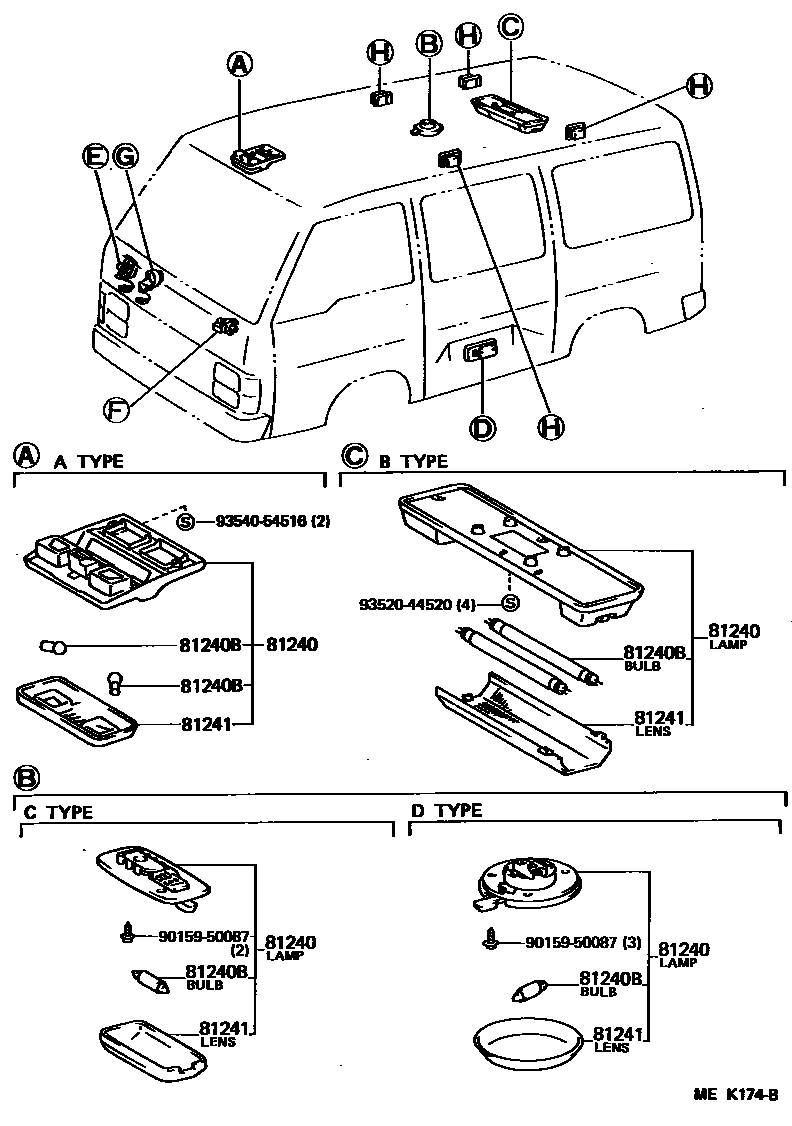

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-95704-03iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)198708-198908

GRAY,TRIM4#,8#,C TYPE

main81240-95705-03iLH51,61,71,YH51,61..WG..(09S,10S)198708-198908

GRAY,TRIM4#,8#,D TYPE

main81240-95A18×2iLH61..15S198708-198908

D TYPE

main81240-95J04-03iLH51,YH51..MRF..08S198708-198908

main81240-95J04-05iLH51,YH51..MRF..08S198708-198908

main81240-95J05-03iLH51,YH51,57..SRF..08S198708-198908

main81240-95J05-05iLH51,YH51,57..SRF..08S198708-198908

main81240-95J06-03iLH51,6#,YH51,57..SCM,SGL198708-198908

GRAY,TRIM8#,B TYPE

main81240-95J06-05iLH51,YH51,57..07S,08S198708-198908

GRAIGE,TRIM4#,B TYPE

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH71..10S;LH51,61,YH51,61..(COM,WG)..(CTM,DX)198708-198908

main90981-11033×2iLH51,6#,YH51,57..SCL,SCM,SGL198708-198908

main90981-12005×2iLH51,YH51..MRF..08S198708-198908

81241LENS, ROOM LAMP, NO.1

main81241-95013iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)198708-198908

C TYPE

main81241-95705iLH71..10S;LH51,61,YH51,61..(COM,WG)..(CTM,DX)198708-198908

D TYPE

main81241-95J02iLH51,6#,YH51,57..SCL,SCM,SGL198708-198908

B TYPE

main81241-95J04-03iLH51,YH51..MRF..08S198708-198908

GRAY,TRIM8#,A TYPE

main81241-95J04-05iLH51,YH51..MRF..08S198708-198908

GRAIGE,TRIM4#,A TYPE

main81241-95J05-03iLH51,YH51,57..SRF..08S198708-198908

GRAY,TRIM8#,A TYPE

main81241-95J05-05iLH51,YH51,57..SRF..08S198708-198908

GRAIGE,TRIM4#,A TYPE

9015950087

main90159-50087

9352044520

main93520-44520

9354054516

main93540-54516

6 parts on this diagram · 2 diagrams in section
