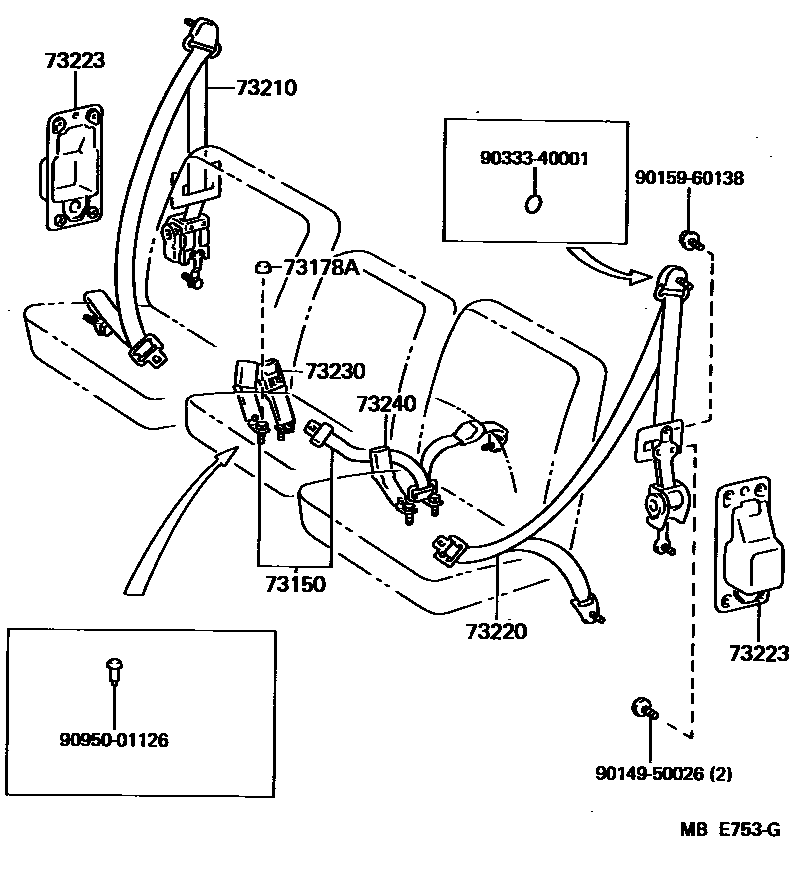

SEAT BELT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-95J13-04iLH51,61,YH51,61..(CTM,GL)..09S198708-198908

BLUE,TRIM8#

main73150-95J13-06iLH61,YH61..(4HC,5H)..(CD,DX);LH51,71,YH50,51,52,62,71..(4HC,5H)..(CD,DX,GL)198708-198908

BROWN,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH50,51,57,61..05S,07S,08S198708-198908

main73178-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH50,51,57,61..05S,07S,08S198708-198908

main73178-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH50,51,57,61..05S,07S,08S198708-198908

main73178-95J02iLH61,YH61..10S198708-198908

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-95J16-04iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

sub73210-95J16

main73210-95J16-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

sub73210-95J16

main73210-95J17-04iLH51,6#,YH51..CTM,SGL198708-198908

BLUE,TRIM8#

sub73210-95J16

main73210-95J17-06iLH71..10S198708-198908

sub73210-95J16

main73210-95J18-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main73210-95J18-06iLH51,YH51,57..07S,08S198708-198908

BROWN,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-95J16-04iLH5#,6#,YH50,51,61..GL..(05S,09S)198708-198908

BLUE,TRIM8#

sub73210-95J16

main73210-95J16-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

sub73210-95J16

main73210-95J17-04iLH51,6#,YH51,57..CTM,SCM,SGL198708-198908

BLUE,TRIM8#

sub73210-95J16

main73210-95J17-06iLH71..10S198708-198908

sub73210-95J16

main73210-95J17-06iLH71..10S198708-198908

BROWN,TRIM4#

sub73210-95J16

main73210-95J19-06iLH51,YH51..07S198708-198908

BROWN,TRIM4#

73223COVER, SEAT BELT RETRACTOR

main73223-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main73223-95J00iLH61..10S198808-198908

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-95J09-04iLH61,YH61..10S;LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL198709-198908

BLUE,TRIM8#

sub73230-95J09

main73230-95J09-06iLH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM198709-198908

BROWN,TRIM4#

sub73230-95J09

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-95J13-04iLH61,YH61..10S;LH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S)198708-198908

BLUE,TRIM8#

main73240-95J13-06iLH71;LH5#,6#,YH50,51,52,6#,71..CD,DX198708-198908

BROWN,TRIM4#

main73240-95J25-04iLH51,6#,YH51,57..SCM,SGL198708-198908

BLUE,TRIM8#

main73240-95J25-06iLH71..10S198708-198908

BROWN,TRIM4#

main73240-95J25-06iLH51,YH51,57..07S,08S198708-198908

9014950026

main90149-50026

9015960138

main90159-60138

9033340001

main90333-40001

9095001126

main90950-01126

11 parts on this diagram · 7 diagrams in section
