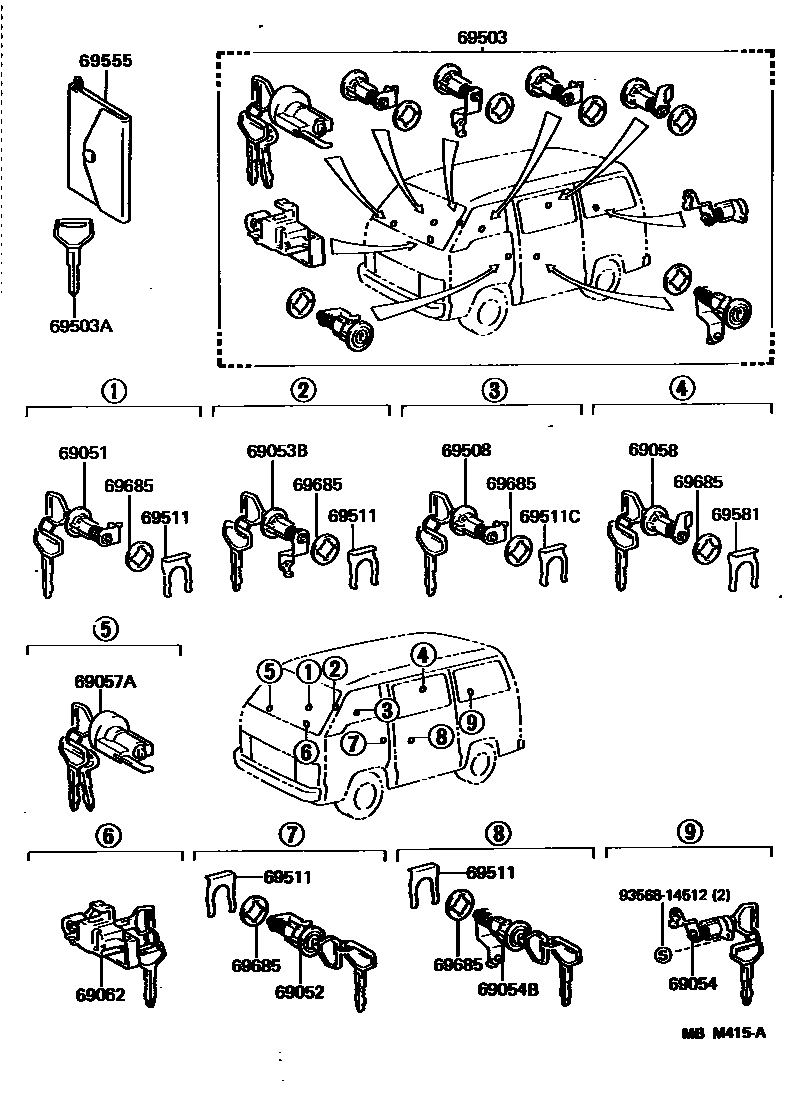

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95J03iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥3,560198708-198908

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95J03iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥3,560198708-198908

69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH

main69053-95J03iLH5#,6#,YH50,51,61..V5D¥3,560198708-198908

sub69053-95709¥3,010

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-95J03iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥3,760198708-198908

sub69055-95J04¥3,760

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-95J03iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥3,560198708-198908

sub69054-95708¥4,010

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95J06iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥5,700198708-198908

sub69057-20042¥5,700

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)¥3,600198708-198908

sub69058-95J01¥3,600

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-95J00-26iLH51,YH51,57..07S,08S198708-198908

BROWN,TRIM4#

sub69056-95J00¥5,300

main69056-95J00-34iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

sub69056-95J00¥5,300

69503CYLINDER SET, LOCK

main69503-95J20iLH66..DX..08S;LH51,61,YH61..(COM,WG)..(CTM,DX);LH71,YH51,52,62,71..(4HC,5F,5H)..(CD,CTM,DX,GL);LH5#,6#,YH50,61..V4D..(CD,DX,GL)..(03S,05S,06S,09S)¥18,100198708-198908

main69503-95J21iLH5#,6#,YH50,51,61..V5D¥19,800198708-198908

main69503-95J22iLH51,6#..SGL¥16,100198708-198908

main69503-95J23-04iLH51,YH51,57..08S198708-198908

BLUE,TRIM8#

main69503-95J23-06iLH51,YH51,57..07S,08S198708-198908

BROWM,TRIM4#

main69503-95J24iLH71..10S198708-198908

main69503-95J24iLH51,61..VSP..ST198708-198908

main69503-95J24iLH56..V4D..DX198709-198908

main69503-95J24iLH56..V4D..DX198709-198908

main69503-95J24iLH66..V4D..DX..05S198708-198709

69503AKEY, BLANK

main90999-00066iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥1,550198708-198908

sub90999-00085¥1,550

main90999-00068iLH51,YH51,57..07S,08S¥1,550198708-198908

sub90999-00094¥1,550

main90999-00129iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71¥2,060198708-198908

sub90999-00212¥2,060

69508CYLINDER & KEY SET, BATTERY BOX LID

main69508-95J01iLH51,61..VSP..ST¥3,480198708-198908

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iLH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S¥160198708-198908

69511CRETAINER, BATTERY BOX LID

main69511-32010iLH71..10S¥160198708-198908

69555COVER, KEY

main69555-20010iLH51,61,71,YH51,57,61..WG¥780198902-198908

69581RETAINER, FUEL FILLER LID CYLINDER

main69512-87001iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)¥140198708-198908

69685PAD, LOCK CYLINDER

main69513-32010iLH66..V4D..DX..05S¥120198709-198908

main69513-32010iLH66..V4D..DX..05S¥120198709-198908

main69513-32010iLH66..V4D..DX..05S¥120198708-198709

main69513-32010iLH51,6#,YH51,57..SCL,SCM,SGL¥120198708-198908

main69513-32010iLH51,6#,YH51,57..SCL,SCM,SGL¥120198708-198908

9356814512

main93568-14512¥80

17 parts on this diagram · 1 diagram in section
