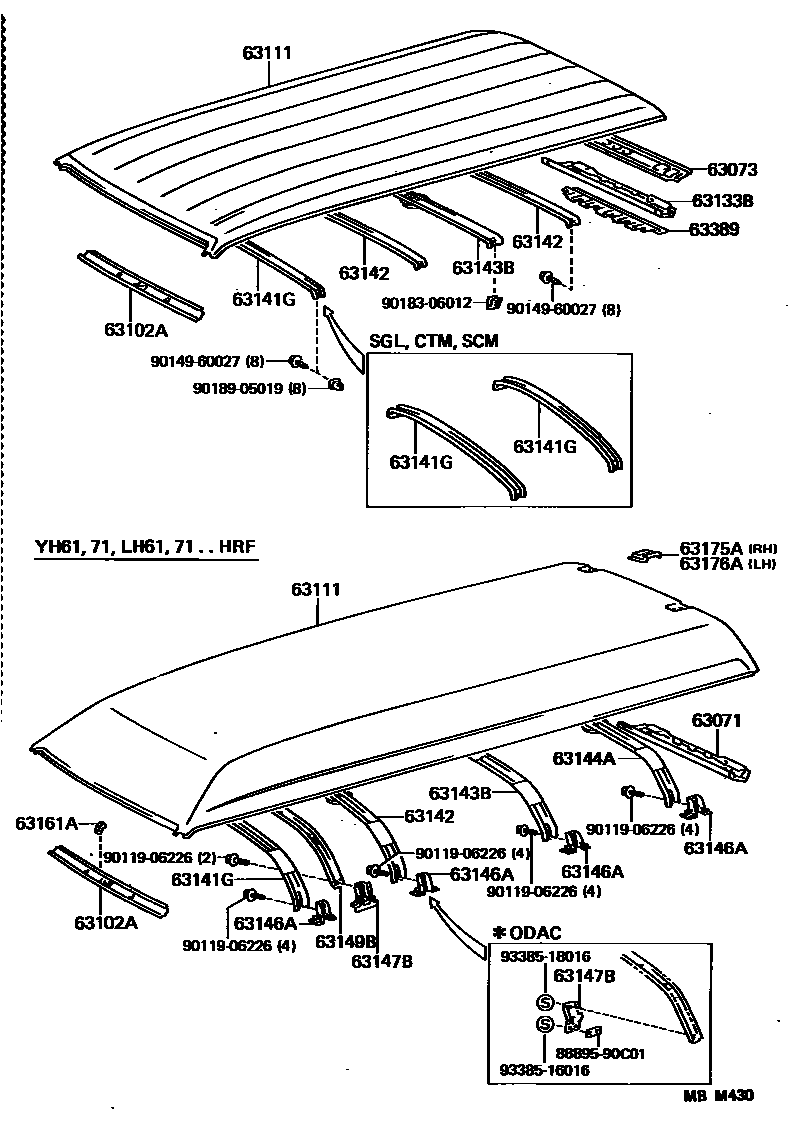

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-90C01iLH61,71,YH61,71..HRF198708-198908

main63071-94350iLH66..V4D..DX..05S198708-198908

63073FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER

main63073-95J01iLH51,YH51..MRF198708-198908

main63073-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..SRF198708-198908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main63102-95J01iLH51,6#,YH51,57..SRF..(CTM,SCM,SGL)198708-198908

main63102-95J02iLH51,YH51..MRF..08S198708-198908

main63102-95J04iLH51,YH51..07S198708-198908

main63102-95J05iLH51,YH51,57..SRF..08S198708-198908

63111PANEL, ROOF

main63111-90C00iLH71,YH71198708-198908

main63111-95J00iLH5#,YH5#..SRF198708-198908

main63111-95J01iLH66..(DX,SGL)..08S;LH6#,YH6#..SRF..(03S,05S,06S,09S,10S,15S)198708-198908

main63111-95J02iLH51,YH51..MRF198708-198908

main63111-95J04iLH61,YH61..HRF198708-198908

63133BFRAME, BACK WINDOW

main63133-95J00iLH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main63133-95J02iLH51,6#,YH51,57..CTM,SCL,SCM,SGL198708-198908

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-90C03iLH71,YH71..09S,15S198708-198908

main63103-95J07iLH61,YH61..HRF..WT198708-198808

main63103-95J08iLH61,71,YH61,71..HRF..06S198708-198908

main63141-95J00iLH66..DX..08S;LH5#,6#,YH50,51,52,6#..SRF..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main63141-95J15×2iLH61,YH61..09S,15S198708-198908

main63141-95J16iLH61..SRF..06S..WT;LH61..V5D..(05S,06S)..ST198808-198908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-90C00iLH61,71,YH61,71..(V,WG)..HRF198708-198908

main63104-90C01iLH71,YH71..15S198708-198908

main63142-95J00×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..SRF198708-198908

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-90C00iLH61,71,YH61,71..HRF..VSG198708-198908

main63105-90C01iLH71,YH71..10S,15S198708-198908

main63105-95J00iLH66..DX..08S;LH5#,6#,YH50,51,52,6#..V..SRF..(CD,DX,GL)..(03S,05S,06S,09S)198708-198908

main63105-95J01iLH51,61,YH51,61..(COM,WG)..(CTM,DX)198708-198908

main63105-95J02iLH51,6#,YH51,57..SRF..(SCM,SGL)198708-198908

main63105-95J03iLH61..SRF..06S..WT;LH61..V5D..(05S,06S)..ST198808-198908

main63105-95J04iLH61,YH61..HRF..WT198708-198808

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63106-90C00iLH61,71,YH61,71..HRF198708-198908

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-90C00×4iLH61,71,YH61,71..HRF198708-198908

63147BBRACKET, ROOF PANEL REINFORCEMENT, NO.1 REAR

main63147-90C00iLH66..V4D..DX..05S198708-198908

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-90C00iLH66..V4D..DX..05S198708-198908

63161ASPACER, WINDSHIELD HEADER

main63161-95J00×2iLH61,YH61..HRF198708-198908

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-90C00iLH61,71,YH61,71..HRF198708-198908

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-90C00iLH61,71,YH61,71..HRF198708-198908

63389RETAINER, ROOF HEADLINING TRIM, CENTER

main63389-90C00iLH66..V4D..DX..05S198708-198908

main63389-95J00iLH51,6#,YH51,57..CTM,SCL,SCM,SGL198708-198908

8889590C01HOLDER, FUSE

main88895-90C01

9011906226

main90119-06226

9014960027

main90149-60027

9018306012

main90183-06012

9018905019

main90189-05019

9338516016

main93385-16016

9338518016

main93385-18016

23 parts on this diagram · 4 diagrams in section
