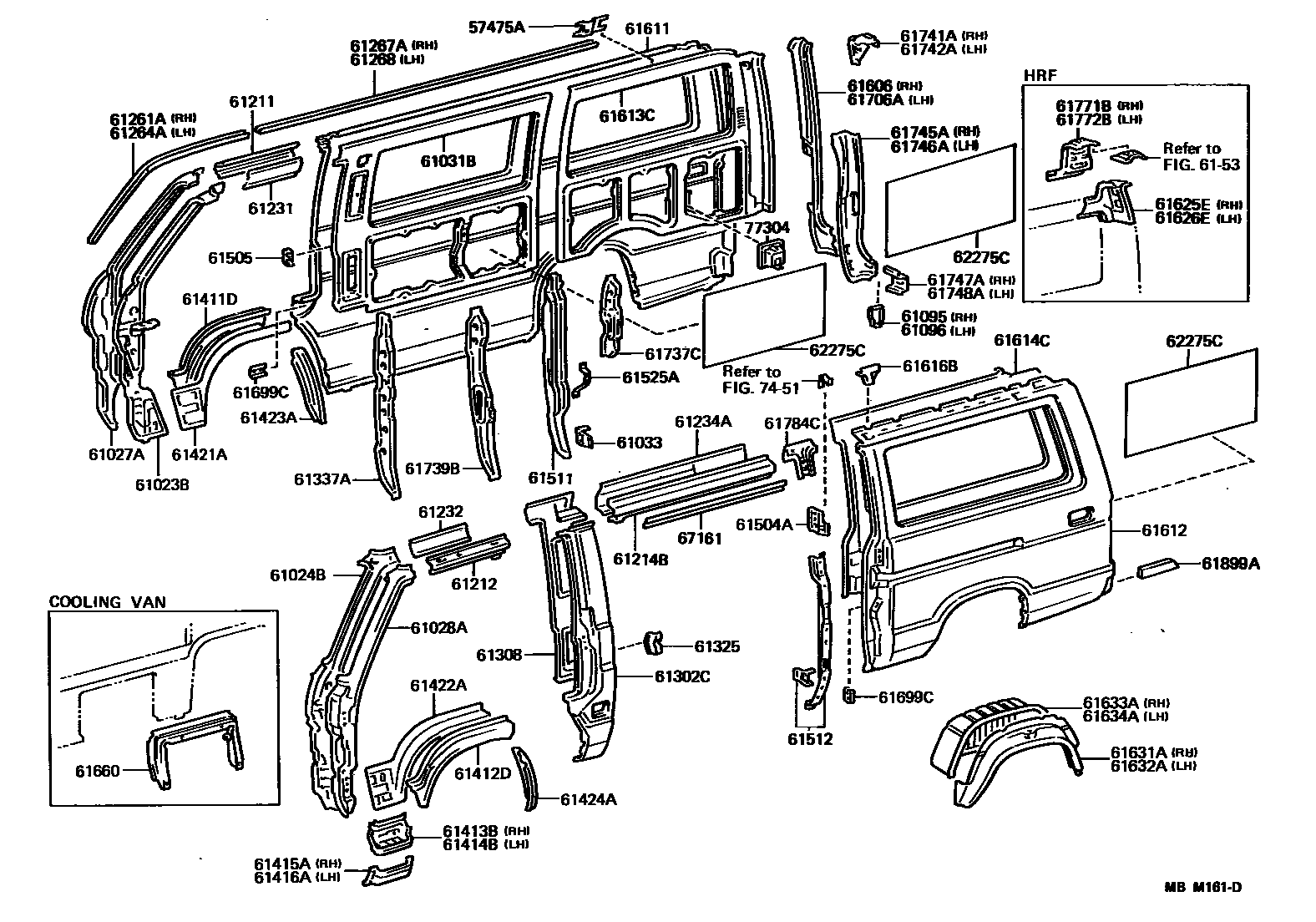

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

57475APLATE, BELT ANCHOR, NO.2

main57475-95J00iLH61,YH61..V4D..06S..WT198708-198908

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95J06iLH51..V..(CD,DX,GL);LH51,66..(4HC,5F)..(CTM,DX)..(08S,09S)..DSL;LH56,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,15S)198708-198908

main61023-95J08iLH51..09S..TD;LH66,YH51,57..SRF..(SCM,SGL);LH61,71,YH61..(DX,SGL)..(05S,10S);LH51..SRF..(4FC,5F,5H)..(CTM,DX,SCM,SGL)..(05S,08S,09S)198708-198908

main61023-95J09iLH51,YH51..MRF198708-198908

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-94351iLH66..V4D..DX..05S198708-198908

main61024-95J04iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..HRF,SRF198708-198908

main61024-95J06iLH51,YH51..MRF198708-198908

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95J01iYH61..10S198708-198908

main61027-95J05iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..HRF,SRF198708-198908

main61027-95J06iLH51,YH51..MRF198708-198908

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95J00iLH66..DX..08S;LH66..(DX,GL)..05S;LH5#,61,71,YH5#,6#,71..(HRF,SRF)..(CD,CTM,DX,GL,SCM)198708-198908

main61028-95J03iLH51,6#..SGL198708-198908

main61028-95J04iLH51,YH51..MRF198708-198908

61031BEXTENSION SUB-ASSY, QUARTER PANEL, RH

main61031-95J32iLH71,YH71..09S198708-198908

main61031-95J37iLH5#,6#,YH50,61..SRF..V4D..(DX,GL)..(05S,06S)..ST198708-198908

main61031-95J38iLH5#,6#,YH50,61..SRF..V4D..DX..(05S,06S)..ST198808-198908

main61031-95J38iLH5#,6#,YH50,61..SRF..V4D..DX..(05S,06S)..ST198708-198808

main61031-95J39iLH51,61,YH50,52,6#..V4D..VSG..03S198708-198908

main61031-95J40iLH51,61,YH50,52,6#..V4D..VSG..03S198808-198908

main61031-95J40iLH51,61,YH50,52,6#..V4D..VSG..03S198708-198808

main61031-95J41iLH56,66..V4D..DX..05S198709-198908

sub61031-95J42

main61031-95J41iLH51,61..VSP..ST198708-198908

sub61031-95J42

main61031-95J41iLH51,61..VSP..ST198709-198808

sub61031-95J42

main61031-95J42iLH51,61..VSP198708-198908

main61031-95J43iLH51,61..VSP198808-198908

main61031-95J43iLH51,61..VSP198708-198808

main61031-95J44iLH66..DX..08S;LH61,YH61..09S198708-198908

main61031-95J45iLH61,YH61..V4D..06S..WT198708-198908

main61031-95J46iLH61,YH61..V4D..06S..WT198708-198808

main61031-95J46iLH61,YH61..V4D..06S..WT198808-198908

main61031-95J47iLH61,YH61..V4D..06S..WT198708-198908

main61031-95J48iLH61,YH61..V4D..06S..WT198708-198808

main61031-95J48iLH61,YH61..V4D..06S..WT198808-198908

main61031-95J49iLH61,YH61..HRF..ST198708-198908

main61031-95J50iLH61,YH61..HRF..ST198708-198808

main61031-95J50iLH61,YH61..HRF..ST198808-198908

main61031-95J51iLH71,YH71..06S198708-198908

main61031-95J54iLH51,61,YH51,61..WG..DX198708-198908

main61031-95J55iLH51,YH51,57..CTM,SCM198708-198908

sub61031-95J57

main61031-95J56iLH51,YH51..MRF..08S198708-198908

sub61031-95J57

main61031-95J57iLH51,YH51..07S198708-198908

main61031-95J69iLH61..15S198708-198908

main61031-95J70iLH51,6#..SGL..05S198708-198908

main61031-95J71iLH66..SGL..08S198708-198908

main61735-90C00iLH71,YH71..DX..(10S,15S)198708-198908

main61735-90C01iLH71..GL198708-198908

main61735-90C01iLH71..DX..15S198808-198908

main61735-95J86iLH66..V4D..DX..05S198708-198908

main61735-95J87iLH66..V4D..DX..05S198708-198908

61033EXTENSION SUB-ASSY, QUARTER LOCK PILLAR

main61033-95J00iLH6#,YH61..(DX,SGL)..(08S,10S,15S);LH6#,YH6#..V4D..(03S,05S,06S,09S)..ST198708-198908

main61033-95J01iLH61,YH61..V4D..WT198708-198908

main61575-95J01iLH51..WG;LH5#,YH50..V4D;YH51,52,57..03S,07S,08S,09S198708-198908

61095PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH

main61095-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61096PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH

main61096-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61211RAIL, ROOF SIDE, OUTER RH

main61211-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61212RAIL, ROOF SIDE, OUTER LH

main61212-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61204-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61231RAIL, ROOF SIDE, INNER RH

main61231-95J00iLH66..DX..08S;LH51,71,YH51,71..(V,WG)..(HRF,MRF)..(DX,SCM);LH5#,6#,YH50,51,52,6#..(CD,DX,GL,SCL)..(03S,05S,06S,07S,09S,10S,15S)198708-198908

main61231-95J01iLH71,YH71..15S;LH51,6#,YH51,57..SRF..(CTM,SCM,SGL)198708-198908

sub61231-95J00

61232RAIL, ROOF SIDE, INNER LH

main61232-95J02iLH66..DX..08S;LH51,71,YH51,71..(V,WG)..(HRF,MRF)..(DX,SCM);LH5#,6#,YH50,51,52,6#..(CD,DX,GL,SCL)..(03S,05S,06S,07S,09S,10S,15S)198708-198908

main61232-95J03iLH71,YH71..15S;LH51,6#,YH51,57..SRF..(CTM,SCM,SGL)198708-198908

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61208-95J02iLH51..MRF..TD;LH66..SGL..05S;LH51,61,YH51,57..(CTM,SCL,SCM,SGL)..(CBR,DSL)198708-198908

main61208-95J03iLH51..09S..TD;LH51,YH51..DX..09S198708-198908

main61208-95J06iLH66..V4D..DX..05S198708-198908

main61208-95J07iLH66..DX..08S;LH61,YH61..09S198708-198908

main61208-95J08iLH71,YH71..09S198708-198908

sub61208-95J07

main61208-95J09iLH66..SGL..08S198708-198908

main61234-95J00iLH61,YH61..(CD,DX,GL)..(03S,05S,06S);LH5#,66,71,YH50,51,52,62,71..(CD,DX,GL)..(03S,05S,06S,10S,15S)198708-198908

main61234-95J05iLH61,YH61..10S,15S;LH5#,6#,YH50,61..SRF..V4D..(DX,GL)..(05S,06S)198708-198908

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95J05iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95J05iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-95J09iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main61302-95J14iLH51,YH51,57..07S,08S198708-198908

main61302-95J15iLH51,6#..SGL198708-198908

main61302-95J18iLH66..V4D..DX..05S198708-198908

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-94351iLH66..V4D..DX..05S198708-198908

main61308-95J12iLH51,61..VSP198708-198908

main61308-95J12iLH56,66..V4D..DX..05S198709-198908

main61308-95J12iLH51,61,71,YH51,61,71..(COM,WG)..(DX,GL)198708-198908

main61308-95J13iLH51,YH51,57..CTM,SCL,SCM198708-198908

main61308-95J38iLH66..V4D..DX..05S198708-198908

main61308-95J39iLH51,61,71,YH50,51,52,6#,71..(CD,DX,GL)..(03S,05S,06S)..ST198708-198908

main61308-95J40iLH61,YH61..V5D..03S;LH61,YH61..V4D..(CD,DX,GL)..(03S,05S,06S)..ST;LH51,71,YH50,51,52,62,71..(CD,DX,GL)..(03S,05S,06S)198708-198808

main61308-95J40iLH61,YH61..V5D..03S;LH61,YH61..V4D..(CD,DX,GL)..(03S,05S,06S)..ST;LH51,71,YH50,51,52,62,71..(CD,DX,GL)..(03S,05S,06S)198808-198908

main61308-95J41iLH71,YH71..09S198708-198908

main61308-95J42iLH56,66..(DX,GL)..05S198708-198908

main61308-95J43iLH66..V5D198708-198808

main61308-95J43iLH66..V5D198808-198908

main61308-95J44iLH61,YH61..WT198708-198908

main61308-95J45iLH61..HRF..WT;LH61..03S..WT198708-198808

main61308-95J45iLH61..HRF..WT;LH61..03S..WT198808-198908

main61308-95J46iLH51,6#..SGL..05S198708-198908

sub61308-95J47

main61308-95J47iLH66..SGL..08S198708-198908

main61308-95J48iLH66..DX..08S;LH61,YH61..09S198708-198908

61325REINFORCEMENT, CENTER BODY PILLER, CENTER

main61325-95J01iLH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH66,YH51,52,57,62..(CD,CTM,DX,SCL,SCM,SGL)..(03S,07S,08S,09S)198708-198908

61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-95J00iLH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S198708-198908

61411DPANEL, FENDER, OUTER RH

main61411-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61412DPANEL, FENDER, OUTER LH

main61412-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61413BPANEL, FRONT STEP, RH

main61413-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61414BPANEL, FRONT STEP, LH

main61414-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61415APANEL, FRONT STEP, UNDER, RH

main61415-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61416APANEL, FRONT STEP UNDER, LH

main61416-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61421APANEL, FENDER, INNER RH

main61421-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61422APANEL, FENDER, INNER LH

main61422-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61423APANEL, FENDER, INNER LOWER RH

main61423-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main61423-95J01iLH66..V4D..DX..05S198708-198908

61424APANEL, FENDER, INNER LOWER LH

main61424-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

main61424-95J01iLH71..10S198708-198908

61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

main61504-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-95J00iLH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH66,YH51,52,57,62..(CD,CTM,DX,SCL,SCM,SGL)..(03S,07S,08S,09S)198708-198908

61511PILLAR, QUARTER LOCK, RH

main61501-95J02iLH5#,YH50,51..V5D198708-198908

main61501-95J04iLH6#,YH61..V5D..ST198708-198908

main61501-95J06iLH61,YH61..V5D..WT198708-198908

main61511-95J01iLH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH66,YH51,52,57,62..(CD,CTM,DX,SCL,SCM,SGL)..(03S,07S,08S,09S)198708-198908

61512PILLAR, QUARTER LOCK, LH

main61502-95J01iLH51..WG;LH51..VSG;LH56,YH5#198708-198908

main61502-95J02iLH51..VSP198708-198908

main61502-95J02iLH56..V4D..DX198709-198908

main61502-95J03iLH61..(V,WG)..(DX,GL,SGL)..ST;LH6#..VSG..(CD,DX,SGL)..(03S,08S);LH66,71,YH6#,71..(03S,05S,06S,09S,10S)..ST198708-198908

main61502-95J04iLH66..V4D..DX..05S198709-198908

main61502-95J04iLH61..VSP..ST198708-198908

main61502-95J05iLH61,YH61..06S..WT198708-198908

main61502-95J07iLH61,71,YH71..15S198708-198908

main61502-95J09iLH61..03S..WT198708-198908

61525ARETAINER, SEPARATOR BAR BRACKET, RH

main61525-95J00iLH61,YH61..09S;LH66..(DX,SGL)..08S198708-198908

6153

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61705-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198908

main61705-95J04iLH66..V4D..DX..05S198708-198908

61611PANEL, QUARTER, RH

main61611-90C00iLH71,YH71198708-198908

main61611-95J02iLH51..VSP198708-198908

main61611-95J08iLH61..VSP..ST198708-198908

main61611-95J09iLH61,YH61..SRF..V5D..WT198708-198908

main61611-95J17iLH56..V4D..DX198709-198908

main61611-95J17iLH51..VSP198708-198908

main61611-95J18iLH61..VSP..ST198708-198908

main61611-95J18iLH66..V4D..DX..05S198709-198908

main61611-95J19iLH61,YH61..HRF..WT198708-198908

main61611-95J20iLH61,YH61..HRF..ST198708-198908

main61611-95J25iLH61,YH61..V4D..06S..WT198708-198908

main61611-95J26iLH61..03S..WT198708-198908

main61611-95J31iLH51..WG;LH5#,YH50..V4D..VSG;YH51,52,57..03S,07S,08S,09S198708-198908

main61611-95J32iLH5#,YH50,51..V5D198708-198908

main61611-95J34iLH6#,YH61..(DX,SGL)..(08S,10S,15S);LH6#,YH6#..SRF..V4D..VSG..(03S,05S,06S,09S)..ST198708-198908

main61611-95J35iLH6#,YH61..V5D..ST198708-198908

main61611-95J39iLH66..V4D..DX..05S198708-198908

main61611-95J40iLH66..V4D..DX..05S198708-198908

61612PANEL, QUARTER, LH

main61612-90C00iLH71,YH71198708-198908

main61612-95J03iLH51..VSP198708-198908

main61612-95J03iLH56..V4D..DX198709-198908

main61612-95J07iLH61..VSP..ST198708-198908

main61612-95J07iLH66..V4D..DX..05S198709-198908

main61612-95J09iLH61,YH61..SRF..06S..WT198708-198908

main61612-95J17iLH61,YH61..HRF..WT198708-198908

main61612-95J18iLH66..V4D..DX..05S198708-198908

main61612-95J20iLH61..03S..WT198708-198908

main61612-95J26iLH51..WG;LH51..VSG;LH56,YH5#198708-198908

main61612-95J29iYH61..SRF..ST;LH6#..SRF..(05S,06S,09S,10S,15S)..ST;LH6#,YH62..VSG..(CD,DX,SGL)..(03S,08S)198708-198908

61613CPANEL SUB-ASSY, QUARTER, INNER REAR RH

main61607-95J01iLH51,YH51..DX..09S198708-198908

main61607-95J02iLH51,YH51,57..CTM,SCM198708-198908

sub61607-95J18

main61607-95J18iLH51,YH51..07S198708-198908

main61607-95J20iLH51,YH51..MRF..08S198708-198908

main61607-95J28iLH5#,YH50,51..V5D..(05S,06S)198708-198908

main61607-95J29iLH6#,YH61..V5D..(05S,06S)..ST198708-198908

main61607-95J30iLH6#,YH61..V5D..DX..ST198708-198908

main61607-95J31iLH6#,YH61..V5D..DX..ST198808-198908

main61607-95J31iLH6#,YH61..V5D..DX..ST198708-198808

main61607-95J32iLH61,YH61..SRF..V5D..WT198708-198908

main61607-95J33iLH61,YH61..SRF..V5D..WT198708-198908

main61607-95J34iLH61,YH61..SRF..V5D..WT198708-198808

main61607-95J34iLH61,YH61..SRF..V5D..WT198808-198908

main61607-95J35iLH61,YH61..HRF..WT198708-198908

main61607-95J36iLH61,YH61..HRF..WT198708-198908

main61607-95J37iLH61,YH61..HRF..WT198708-198808

main61607-95J37iLH61,YH61..HRF..WT198808-198908

main61607-95J38iLH61,YH61..HRF..ST198708-198908

main61607-95J39iLH66..SGL..08S198708-198908

main61607-95J40iLH66..DX..08S;LH61,YH61..09S198708-198908

main61607-95J41iLH71,YH71..09S198708-198908

main61613-90C00iLH71,YH71..06S,10S198708-198908

main61613-90C02iLH71,YH71..DX..15S198708-198908

main61613-90C03iLH71..GL198708-198908

main61613-90C03iLH71..DX..15S198808-198908

main61613-95J00iLH5#,YH50,52..V4D..VSG..(CD,DX,GL)198708-198908

main61613-95J02iLH51..VSP198708-198908

main61613-95J02iLH56..V4D..DX198709-198908

main61613-95J11iLH61,YH61..10S,15S;LH6#,YH6#..SRF..V4D..VSG..(CD,DX,GL)..(03S,05S,06S)..ST198708-198908

main61613-95J14iLH66..V4D..DX..05S198709-198908

main61613-95J14iLH61..VSP..ST198708-198908

main61613-95J42iLH61,YH61..V4D..06S..WT198708-198908

main61613-95J43iLH61..03S..WT198708-198908

main61613-95J49iLH51,YH50..V5D..03S198708-198908

main61613-95J50iLH61,YH61..V5D..03S198708-198908

main61613-95J57iLH66..V4D..DX..05S198708-198908

main61613-95J62iLH6#..SGL..05S198708-198908

main61613-95J69iLH61,YH61..V4D..06S..WT198808-198908

main61613-95J69iLH61,YH61..V4D..06S..WT198708-198808

main61613-95J74iLH51..SGL198708-198908

sub61607-95J18

61614CPANEL SUB-ASSY, QUARTER, INNER REAR LH

main61608-95J01iLH51,YH51..DX..09S198708-198908

main61608-95J02iLH51,YH51,57..CTM,SCM198708-198908

sub61608-95J19

main61608-95J09iLH61..15S198708-198908

main61608-95J19iLH51,YH51..07S198708-198908

main61608-95J20iLH51,YH51..MRF..08S198708-198908

main61608-95J22iLH71,YH71..DX..15S198708-198908

main61608-95J23iLH71..GL198708-198908

main61608-95J35iLH51..SGL198708-198908

main61608-95J36iLH6#..SGL..05S198708-198908

main61608-95J37iLH5#,YH50,51..VSG..(DX,GL)198708-198908

main61608-95J38iYH50..06S198708-198808

main61608-95J39iLH6#,YH61..SRF..(DX,GL)..(05S,06S)..ST198708-198908

main61608-95J40iLH6#..V5D..(05S,06S)..ST;YH61..V5D..MTM..(05S,06S)..ST198808-198908

main61608-95J40iLH6#..V5D..(05S,06S)..ST;YH61..V5D..MTM..(05S,06S)..ST198708-198808

main61608-95J41iLH61,YH61..SRF..06S..WT198708-198908

main61608-95J42iLH61,YH61..SRF..06S..WT198808-198908

main61608-95J42iLH61,YH61..SRF..06S..WT198708-198808

main61608-95J43iYH61..SRF..V4D..06S..ST198708-198808

main61608-95J44iLH61,YH61..HRF..ST198708-198908

main61608-95J45iLH61,YH61..HRF..WT198708-198908

main61608-95J46iLH61,YH61..HRF..WT198708-198808

main61608-95J46iLH61,YH61..HRF..WT198808-198908

main61608-95J47iLH61,YH61..10S198708-198908

main61608-95J48iLH71..10S198708-198908

main61608-95J49iLH66..DX..08S;LH61,YH61..09S198708-198908

main61608-95J50iLH71,YH71..09S198708-198908

main61608-95J51iLH66..SGL..08S198708-198908

main61608-95J53iYH61..DX..09S198708-198808

main61614-90C00iLH71,YH71..06S198708-198908

main61614-90C02iYH71..15S198708-198808

main61614-90C02iYH71..15S198808-198908

main61614-95J02iLH51..VSP198708-198908

main61614-95J02iLH56..V4D..DX198709-198908

main61614-95J15iLH61..VSP..ST198708-198908

main61614-95J15iLH66..V4D..DX..05S198709-198908

main61614-95J44iLH61..03S..WT198708-198908

main61614-95J49iLH51,YH50,52..VSG..03S198708-198908

main61614-95J50iLH61,YH6#..VSG..03S198708-198908

main61614-95J57iLH66..V4D..DX..05S198708-198908

61616BREINFORCEMENT, QUARTER PANEL, OUTER REAR

main61616-95J00iLH66..V4D..DX..05S198708-198908

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-90C00iLH61,YH61..HRF..ST198708-198908

main61625-90C01iLH71,YH71..15S198708-198908

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-90C00iLH61,71,YH61,71..(V,WG)..HRF198708-198908

main61626-90C01iLH71,YH71..15S198708-198908

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-95J00iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main61631-95J01iLH61,YH61..WT198708-198908

main61631-95J02iLH51,YH51,57..WG198708-198908

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-95J00iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main61632-95J01iLH61,YH61..WT198708-198908

main61632-95J02iLH51,YH51,57..WG198708-198908

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-95J03iYH71..15S198708-198808

main61633-95J03iLH66..(DX,SGL)..08S;LH61,71,YH61..(V,WG)..ST;LH5#,66,YH50,51,52,62,71..V..(03S,05S,06S,09S)198708-198908

main61633-95J03iLH71..GL198808-198908

main61633-95J03iYH71..15S198708-198808

main65605-95J12iLH61..15S198708-198908

main65605-95J15iLH71,YH71..15S198708-198908

main65605-95J16iLH66..V4D..DX..05S198708-198908

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-95J04iLH71..GL198808-198908

main61634-95J04iLH71..DX..15S198708-198808

main61634-95J04iYH71..15S198708-198808

main61634-95J04iLH66,71..(DX,SGL)..(06S,08S,09S,10S);LH5#,6#,YH50,51,52,6#,71..V..(03S,05S,06S,09S)..ST198708-198908

main61634-95J04iLH61..10S198802-198908

main65606-95J10iLH61,YH61..10S198708-198908

main65606-95J13iLH66..V4D..DX..05S198708-198908

main65606-95J17iLH61,71,YH71..15S198708-198908

61660EXTENSION ASSY, QUARTER OUTER PANEL

main61660-95J00iLH66..V4D..DX..05S198708-198908

61699CRETAINER, COURTESY SWITCH

main61699-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61706AFRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61706-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198908

main61706-95J04iLH66..V4D..DX..05S198708-198908

61737CREINFORCEMENT, QUARTER, INNER

main61709-94352iLH66..V4D..DX..05S198708-198908

main61737-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST198708-198908

main61737-95J01iLH61,YH61..WT198708-198908

61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL

main61739-90C00iLH71,YH71198708-198908

main61739-95J00iLH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH66,YH51,52,57,62..(CD,CTM,DX,SCL,SCM,SGL)..(03S,07S,08S,09S)198708-198908

main61739-95J01iLH66..V4D..DX..05S198709-198908

main61739-95J01iLH51,61..VSP..ST198708-198709

main61739-95J01iLH51,61..VSP..ST198709-198908

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198908

61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH

main61742-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..MRF,SRF198708-198908

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61077-95J00iLH61..VSG..03S;LH61..SRF..(DX,GL,SGL);LH51,66..VSG..(03S,05S,06S);LH51,66..(CTM,DX,SCM,SGL)..(08S,09S);LH56,YH5#,6#..(MRF,SRF)..(CD,CTM,DX,GL,SCM)198708-198908

main61077-95J01iLH56,66..V4D..DX..05S198709-198908

main61077-95J01iLH51,61..VSP198708-198908

main61077-95J02iLH51,YH51..07S198708-198908

main61745-95J00iLH66..V4D..DX..05S198708-198908

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61078-95J00iLH61..VSG..03S;LH61..SRF..(DX,GL,SGL);LH51,66..VSG..(03S,05S,06S);LH51,66..(CTM,DX,SCM,SGL)..(08S,09S);LH56,YH5#,6#..(MRF,SRF)..(CD,CTM,DX,GL,SCM)198708-198908

main61078-95J01iLH51,61..VSP198708-198908

main61078-95J01iLH56,66..V4D..DX..05S198709-198908

main61078-95J02iLH51,YH51..07S198708-198908

main61746-95J00iLH66..V4D..DX..05S198708-198908

61747AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH

main61747-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61748AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH

main61748-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-90C00iLH66..V4D..DX..05S198708-198908

61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH

main61772-90C00iLH66..V4D..DX..05S198708-198908

61784CBRACE, QUARTER PANEL, INNER LH

main61784-95J02iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

61899ADUSTPROOF, QUARTER PANEL

main61899-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198801-198908

L=562

main61899-95J01iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198801-198908

main61899-95J02iLH5#,YH5#198801-198908

L=620

main61899-95J03iLH66..(DX,SGL)..08S;LH6#,71,YH6#,71..03S,05S,06S,09S,10S,15S198801-198908

L=720

62275CCOVER, SIDE WINDOW

main62275-95J01iLH71,YH62,71;LH6#,YH61..V4D..(03S,05S,06S,09S);LH6#,YH61..(DX,SGL)..(08S,10S,15S)198811-198908

67161RETAINER, SLIDE DOOR W/STRIP SET, RH

main67161-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

7451

77304BOX SUB-ASSY, FUEL INLET

main77304-95J00iLH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S)198708-198908

main77304-95J01iLH51,6#,YH51,57..SCL,SCM,SGL198708-198908

main77304-95J03iYH50..06S;YH61..SRF..V4D..DX..ST198708-198808

70 parts on this diagram · 4 diagrams in section
