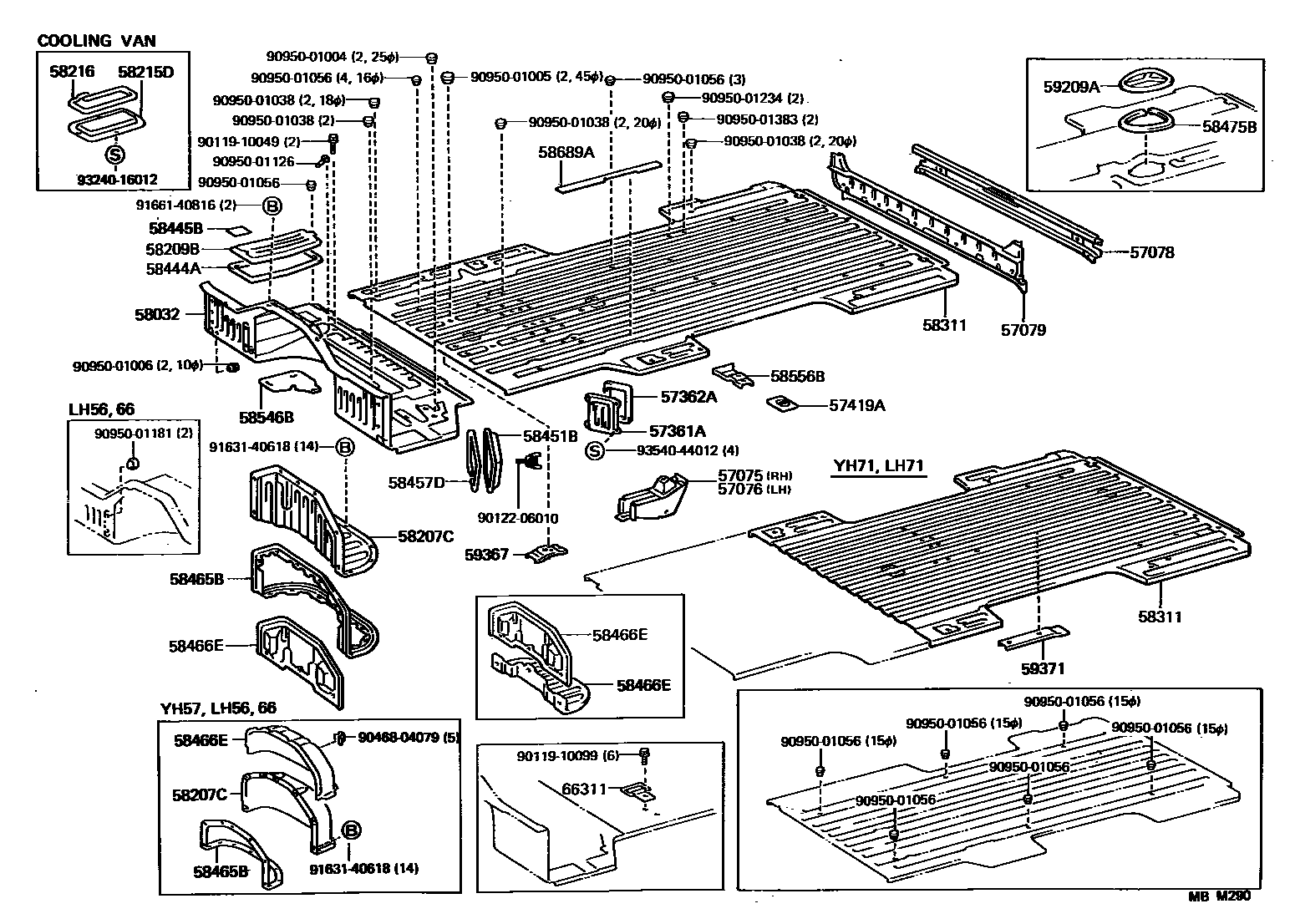

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

main57075-95J00iLH51,YH51..WG198708-198908

main57075-95J01iYH57198708-198908

57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

main57076-95J00iLH51,YH51..WG198708-198908

main57076-95J01iYH57198708-198908

57078MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57078-94350iLH66..V4D..DX..05S198708-198908

main57078-95J03iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main57078-95J04iLH61,YH61..WT;LH51,YH51,57..WG198708-198908

main57078-95J07iLH51,YH51,57..07S,08S198708-198908

57079MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-95J05iLH66..V4D..DX..05S198708-198908

main57079-95J00iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main57079-95J01iLH61,YH61..WT198708-198908

main57079-95J02iLH51,YH51,57..WG198708-198908

main57079-95J03iLH66..SGL..08S;LH5#,6#,71,YH50,51,61..(GL,SGL)..(05S,09S,15S)198708-198810

main57079-95J04iLH51,YH51,57..07S,08S198708-198908

57361ACOVER, NO.2 OUTERIGGER HOLE

main57361-95J00iLH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S198708-198710

57362APACKING, NO.2 OUTRIGGER HOLE COVER

main57362-95J00iLH66..(DX,SGL)..08S;LH51,61,YH61..COM,WG;LH5#,6#,YH50,61..V4D..(03S,05S,06S,09S);LH71,YH51,52,57,62,71..03S,06S,07S,08S,09S,10S,15S198708-198710

57419APLATE, REAR SEAT LOCK

main57419-95J01iLH61,YH61..09S;LH66..(DX,SGL)..08S198708-198908

main59381-95J00iLH56,66..(DX,GL)..05S198708-198908

58032PANEL SUB-ASSY, HEADER

main58032-95J41iLH56,66..V4D..(DX,GL)..05S198708-198908

***

main58032-95J42iLH56,66..V5D198708-198908

***

main58032-95J43iLH66..(DX,SGL)..08S198708-198908

***

main58032-95J53iLH51,61..V4D..(CD,DX,GL)..ST198708-198908

***

main58032-95J60iYH50,52,6#..V4D..ST198708-198908

main58032-95J65iLH61..15S198708-198908

***

main58032-95J68iYH51..CTM198708-198908

***

main58032-95J69iLH51..07S,08S198708-198908

main58032-95J70iYH51..07S,08S198708-198908

***

main58032-95J86iYH50,51,61..V5D..ST198708-198908

***

main58032-95J87iLH51,61..V5D..ST198708-198908

***

main58032-95J88iLH51,61..4FC..GL198708-198908

main58032-95N09iYH61..V4D..WT198708-198908

***

main58032-95N10iLH61..V4D..WT198708-198908

***

main58032-95N11iYH61..V5D..WT198708-198908

***

main58032-95N12iLH61..V5D..WT198708-198908

***

main58032-95N13iLH61..4HC..WT198708-198908

main58032-95N18iYH71..15S198708-198908

***

main58032-95N19iLH71..15S198708-198908

***

main58032-95N20iYH71..15S198708-198808

main58032-95N21iLH71..DX..15S198808-198908

main58032-95N29iYH50,61..SRF..V4D..06S..ST198708-198808

main58032-95N30iYH61..DX..09S198708-198808

main58032-95N31iYH50..V5D..06S198708-198808

main58032-95N33iLH66..V4D..DX..05S198708-198908

main58032-95N36iLH51,61..VSP..ST198708-198908

main58032-95N38iLH51,61..SGL198708-198908

***

main58032-95N39iYH61..10S198708-198908

***

main58032-95N40iLH61..10S198708-198908

***

main58032-95N41iYH51..DX198708-198908

***

main58032-95N42iLH51..DX..09S198708-198908

***

main58032-95N43iLH51..CTM198708-198908

***

main58032-95N46iLH71..10S198708-198908

***

main58032-95N47iYH57198708-198908

***

main58032-95N55iLH66..SGL..05S198708-198908

***

main58032-95N57iLH56,66..V4D..DX..05S198709-198908

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-95J01iYH61..WT198708-198908

main58207-95J03iLH61..WT198708-198908

main58207-95J05iYH50,51,52,6#,71..(COM,V)..ST198708-198908

main58207-95J06iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main58207-95J07iYH51,61..WG;LH51,61,71..ST198708-198908

main58461-95J03iYH57198708-198908

58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58209-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

58215DCOVER, CAMBER SERVICE HOLE

main58215-95700iLH51,61..VSP..ST198708-198908

58216PACKING, CAMBER SERVICE HOLE COVER

main58216-95J00iLH51,61..VSP..ST198708-198908

58311PAN, REAR FLOOR

main58311-95N76iLH71,YH71..09S198708-198908

W(HOLE)

main58312-95J04iLH71..DX..15S198808-198812

main58312-95J05iLH71,YH71..15S198708-198908

main58312-95J10iLH71..10S198708-198908

main58312-95J15iLH71,YH71..06S198708-198908

main58312-95J16iLH71,YH71..09S198708-198808

main58315-95J00iLH51..SGL198708-198908

main58315-95J01iLH51..SGL198808-198908

main58315-95J03iLH51,YH50,52..V4D..03S198708-198908

main58315-95J04iYH52198708-198808

main58315-95J07iLH51,YH50..V5D..03S198708-198908

main58315-95J08iYH50..V4D..06S198708-198808

main58315-95J09iYH50..V5D..06S198708-198808

main58315-95J10iYH50..V4D..06S198708-198808

main58315-95J11iLH61,YH6#..V4D..03S..ST198708-198908

main58315-95J12iYH62198708-198808

main58315-95J14iLH61,YH61..10S198708-198908

main58315-95J15iLH61,YH61..10S198808-198908

main58315-95J16iLH61..SGL198708-198908

main58315-95J17iLH61..SGL198808-198908

main58315-95J21iLH61,YH61..V5D..03S198708-198908

main58315-95J22iLH61..03S..WT198708-198908

main58315-95J23iLH61,YH61..V4D..06S..WT198708-198908

main58315-95J24iLH61,YH61..V4D..06S..WT198708-198808

main58315-95J25iLH61,YH61..V5D..WT198708-198908

main58315-95J26iLH61,YH61..V5D..WT198708-198808

main58315-95J27iYH61..SRF..V4D..06S..ST198708-198808

main58315-95J28iYH61..SRF..V4D..06S..ST198708-198808

main58315-95J29iYH61..DX..09S198708-198808

main58315-95J30iYH61..DX..09S198708-198808

main58315-95J31iLH51,YH51..DX..09S198708-198908

main58315-95J32iLH51,YH51..DX..09S198708-198808

main58315-95J33iLH51,YH51..CTM,SCL,SCM198708-198908

main58315-95J34iYH57198708-198908

main58315-95J36iLH51,YH50..V4D..(DX,GL)198708-198908

main58315-95J37iLH51,YH50..V4D..(DX,GL)198808-198908

main58315-95J46iLH51,YH50,51..V5D..(05S,06S)198708-198908

main58315-95J48iLH56..V4D198708-198908

main58315-95J49iLH56..V4D198708-198808

main58315-95J52iLH56..V5D198708-198908

main58315-95J54iLH61,YH61..V4D..(DX,GL)..(05S,06S)..ST198708-198908

main58315-95J55iLH61,YH61..V4D..(DX,GL)..(05S,06S)..ST198708-198808

main58315-95J57iLH61,YH61..09S198708-198908

main58315-95J58iLH61,YH61..09S198808-198908

main58315-95J59iLH61..15S198708-198908

main58315-95J60iLH61..15S198708-198908

main58315-95J69iLH61,YH61..V5D..(05S,06S)..ST198708-198908

main58315-95J70iLH61,YH61..V5D..(05S,06S)..ST198808-198908

main58315-95J71iLH66..V4D..(DX,GL)..05S198708-198908

main58315-95J72iLH66..V5D..GL198808-198908

main58315-95J73iLH66..SGL..05S198708-198908

main58315-95J74iLH66..SGL..05S198708-198808

main58315-95J75iLH66..(DX,SGL)..08S198708-198908

main58315-95J76iLH66..(DX,SGL)..08S198708-198808

main58315-95J79iLH66..V5D198708-198908

main58315-95J80iLH66..V5D198708-198808

main58315-95J81iLH66..V4D..DX..05S198708-198908

58444APACKING, BATTERY SERVICE HOLE COVER

main58444-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

58445BPAD, BATTERY SERVICE HOLE COVER

main58445-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

sub82817-95707

58451BCOVER, AIR CLEANER SERVICE HOLE

main58405-95J00iLH61,YH61..WT198708-198908

main58451-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST198708-198908

58457DPACKING, AIR CLEANER SERVICE HOLE COVER

main58457-95J00iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-95J01iLH61,YH61..WT198708-198908

main58465-95J02iLH51,61,71,YH50,51,52,6#,71..ST198708-198908

main58465-95J03iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58327-95J00iLH51,61,71,YH50,51,52,6#,71..ST198708-198908

main58327-95J01iLH61,YH61..WT198708-198908

main58327-95J02iYH57198708-198908

main58327-95J03iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main58327-95J06iLH51,61,71,YH50,51,52,6#,71..ST198708-198908

58475BPACKING, INSPECTION HOLE COVER

main58475-95J00iLH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL198708-198908

58546BSILENCER, HEADER, NO.1

main58546-95J00×2iLH51,61,71..WG198708-198908

58556BREINFORCEMENT, REAR SEAT BELT, NO.6

main58556-95J00×2iLH61,YH61..10S198708-198908

58689AWEIGHT, REAR FLOOR

main58688-95J01iLH61,71,YH71..15S198708-198908

L=458

main58689-95J00×2iLH71,YH71..15S198708-198908

main58689-95J01×4iYH57198708-198908

L=425

59209ACOVER SUB-ASSY, INSPECTION HOLE

main59209-95J00iLH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL198708-198908

59367RETAINER, REAR SEAT, NO.2 C

main59367-95J00iYH57198708-198908

59371RETAINER, REAR SEAT, NO.3

main58885-95J02iLH71..10S198708-198908

main59371-90C00iLH71,YH71..15S198708-198908

66311HOOK, ROPE

main66311-95J00×4iLH51,6#,YH50,61..(CD,SGL)..(03S,05S)198708-198908

9011910049

main90119-10049

9011910099

main90119-10099

9012206010

main90122-06010

9046804079

main90468-04079

9095001004

main90950-01004

9095001005

main90950-01005

9095001006

main90950-01006

9095001038

main90950-01038

9095001056

main90950-01056

9095001126

main90950-01126

9095001181

main90950-01181

9095001234

main90950-01234

9095001383

main90950-01383

9163140618

main91631-40618

9166140816

main91661-40816

9324016012

main93240-16012

9354044012

main93540-44012

44 parts on this diagram · 3 diagrams in section
