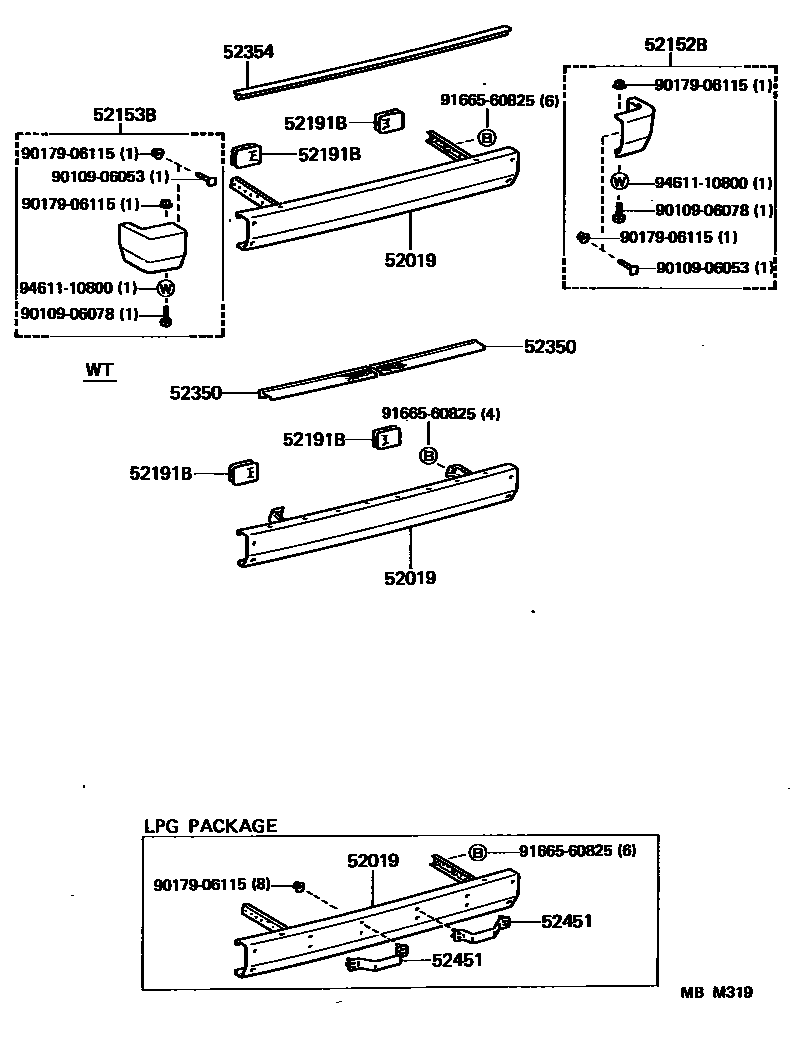

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52019BAR SUB-ASSY, REAR BUMPER

main52019-95J17iLH71..10S198804-198908

TYPE A

sub52019-95J21

main52019-95J18iLH66..(DX,SGL)..08S;LH6#,YH6#..(03S,05S,06S,09S,10S,15S)..ST198708-198908

main52019-95J19iLH61,YH61..WT198708-198908

main52019-95J20iLH51,YH51..DX..09S198708-198908

main52019-95J22iYH71..15S198810-198908

main52019-95J23iLH66..SGL..08S;LH6#,YH61..(GL,SGL)..(05S,09S)198708-198908

main52019-95J24iYH50..06S198708-198808

main52019-95J30iLH5#,71,YH50,51,52,71..COM,V198804-198908

52152BEXTENSION, REAR BUMPER, RH

main52165-29015iLH51,61,71,YH51,61..WG..DX198708-198908

52153BEXTENSION, REAR BUMPER, LH

main52166-29015iLH51,61,71,YH51,61..WG..DX198708-198908

52191BGROMMET, REAR BUMPER STAY

main52191-95A00×2iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

52350STEP ASSY, REAR BUMPER

main52351-95J00iLH61,YH61..WT198708-198908

main52352-95J00iLH61,YH61..WT198708-198908

52354SHUTTER, REAR CROSS TO BUMPER

main52354-95J00iLH5#,71,YH50,51,52,71..CD,DX,GL,SGL198708-198908

main52354-95J01iLH66..(DX,SGL)..08S;LH51,YH51,57..CTM,SCL,SCM;LH6#,YH6#..(03S,05S,06S,09S,10S,15S)..ST198708-198908

52451GUARD, REAR BUMPER

main52405-95J00iYH50..06S198710-198808

main52451-95J00×2iYH50..06S198708-198710

9010906053

main90109-06053

9010906078

main90109-06078

9017906115

main90179-06115

9166560825

main91665-60825

9461110800

main94611-10800

12 parts on this diagram · 3 diagrams in section
