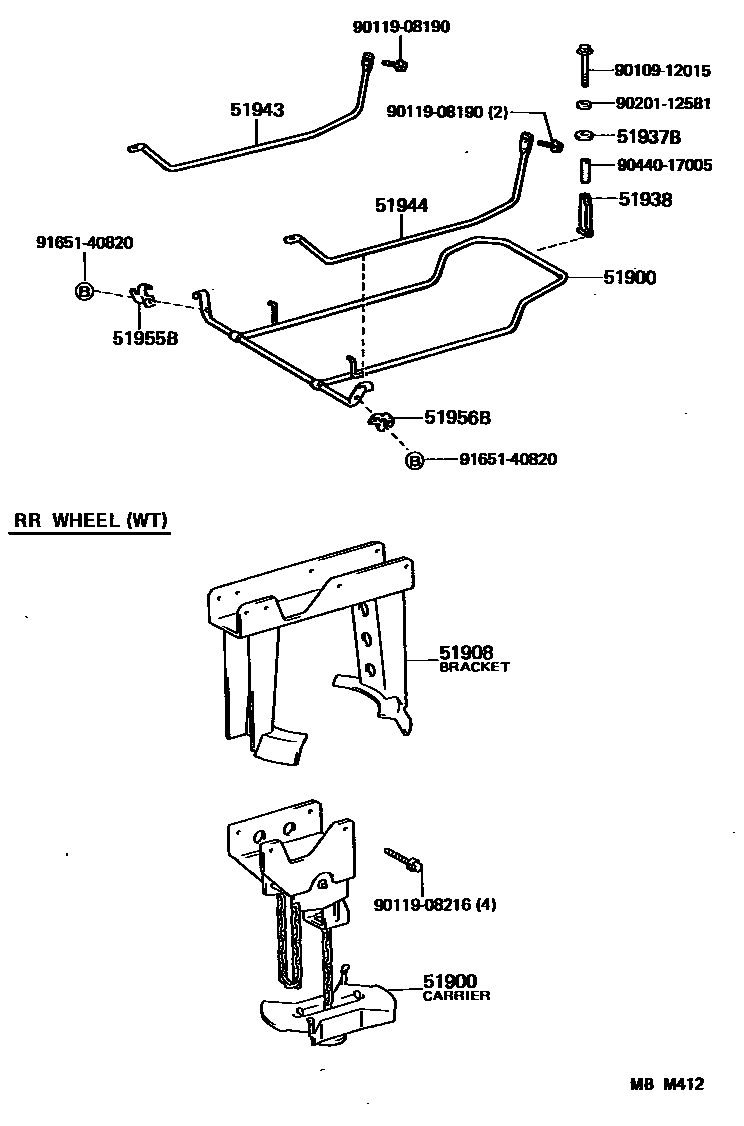

SPARE WHEEL CARRIER

0001 1 0002 1LPG PACKAGE

51900CARRIER ASSY, SPARE WHEEL

main51900-26040iLH61,YH61..V5D..WT198708-198908

main51900-26060iLH61,YH61..V4D..WT198708-198908

main51903-26091iLH51,YH50,52..03S198708-198908

main51903-26100iLH51,YH50..03S198708-198908

main51903-26111iLH71..DX..15S198708-198908

main51903-26121iLH61,YH6#..03S..ST198708-198908

main51903-26130iYH62198708-198908

main51903-26140iLH61,YH61..WT198708-198908

main51903-26170iLH51,YH51..08S,09S198708-198908

main51903-26180iLH51,YH51..08S198708-198908

main51903-26190iLH61,71,YH61..10S198708-198908

main51903-26270iLH56198708-198908

main51903-26280iLH66..05S;LH66..(DX,SGL)..08S198708-198908

main51903-26290iLH66..V4D..DX..05S198708-198908

main51903-26300iLH61,71..10S198708-198908

main51903-26310iYH57198708-198908

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51904-26010iLH61,YH61..WT198708-198908

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

51938LOCK, SPARE WHEEL CARRIER

main51938-28030iLH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71198708-198908

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-26050iLH5#,YH50,51,52..V198708-198908

main51943-26060iLH61,YH61..WT198708-198908

main51943-26070iLH66..(DX,SGL)..08S;LH6#,71,YH6#,71..(03S,05S,06S,09S,10S,15S)..ST198708-198908

main51943-26080iLH66..V4D..DX..05S198708-198908

main51943-26090iLH51,YH51,57..WG198708-198908

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-26020iLH51,YH51,57..WG198708-198908

main51944-26060iLH66..V4D..DX..05S198708-198908

main51944-26070iLH61,YH61..WT198708-198908

main51944-26080iLH5#,YH50,51,52..V198708-198908

main51944-26090iLH66..(DX,SGL)..08S;LH6#,71,YH6#,71..(03S,05S,06S,09S,10S,15S)..ST198708-198908

51955BHINGE, SPARE WHEEL CARRIER, NO.1

main51955-26010iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main51955-26020iLH61,YH61..WT;LH51,YH51,57..WG198708-198908

51956BHINGE, SPARE WHEEL CARRIER, NO.2

main51956-26020iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

main51956-26030iLH61,YH61..WT;LH51,YH51,57..WG198708-198908

9010912015

main90109-12015

9011908190

main90119-08190

9011908216

main90119-08216

9020112581

main90201-12581

9044017005

main90440-17005

9165140820

main91651-40820

14 parts on this diagram · 2 diagrams in section
