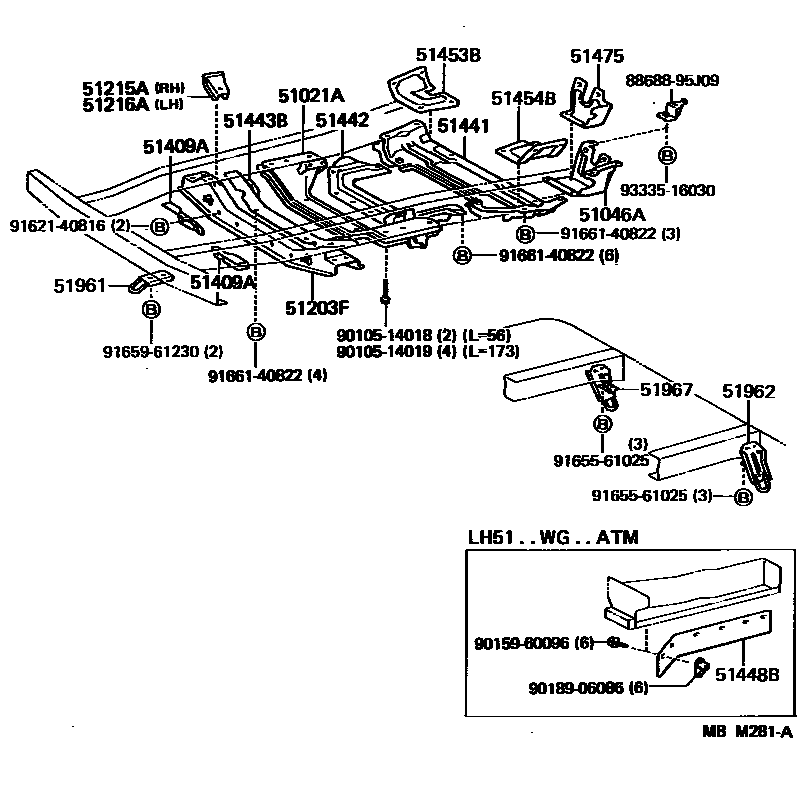

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-95J04iYH50,51,52,6#,71198708-198908

main51021-95J05iLH51,61,71198708-198908

main51021-95J06iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main51021-95J07iYH57198708-198908

51046ACOVER SUB-ASSY, ENGINE UNDER, NO.5

main51046-95J00iLH51..4HC..09S198708-198808

51203FCROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-95J00iLH51,61,71,YH50,51,52,6#,71198708-198908

sub51203-95J01

main51203-95J04iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-95J00iLH51,61,71,YH50,51,52,6#,71198708-198908

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51216-95J00iLH51,61,71,YH50,51,52,6#,71198708-198908

51409ACOVER SUB-ASSY, ENGINE UNDER, NO.4

main51444-95J00iYH61..10S198808-198908

main51444-95J00iLH51,61,71198708-198908

main51444-95J01iYH50,51,52,6#,71198708-198908

main51446-95J00iLH51,61..03S198708-198908

main51446-95J01iYH50,51,52,6#,71198708-198908

main51446-95J02iLH51,61,71..CTM,DX,GL,SCL,SCM,SGL198708-198908

main51446-95J02iLH51,61..03S198708-198908

main51446-95J02iLH51,61..03S198808-198908

51441COVER, ENGINE UNDER, NO.1

main51405-95J02iLH51,61..ATM..DSL198708-198908

51442COVER, ENGINE UNDER, NO.2

main51406-95J01iLH51,61..ATM..DSL198708-198908

main51442-95J01iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

51443BCOVER, ENGINE UNDER, NO.3

main51407-95J01iLH51,61..ATM..DSL198708-198908

main51443-95J02iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

51448BSHUTTER, ENGINE REAR SIDE

main51448-95J01iLH51..4HC..09S198708-198808

51453BSILENCER, ENGINE UNDER COVER, RH

main51453-95J00iLH51,61..ATM..DSL198708-198908

51454BSILENCER, ENGINE UNDER COVER, LH

main51454-95J01iLH51,61..ATM..DSL198708-198908

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-95J00iLH51..4HC..09S198708-198808

51961HOOK, NO.1

main51961-26081iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S)198708-198908

main51961-26091iLH51,YH51,57..CTM,SCL,SCM198708-198908

main51961-26091iLH51,YH51,57..CTM,SCL,SCM198708-198908

main51970-95J00iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

51962HOOK, NO.2

main51965-26020iLH51,YH51,57..WG198708-198908

51967HOOK, TRANSPORT, REAR

main51967-26010iLH51,YH51,57..WG198708-198908

8868895J09BRACKET, COOLER DIAPHRAGM

main88688-95J09

9010514018

main90105-14018

9010514019

main90105-14019

9015960096

main90159-60096

9018906086

main90189-06086

9162140816

main91621-40816

9165561025

main91655-61025

9165961230

main91659-61230

9166140822

main91661-40822

9333516030

main93335-16030

26 parts on this diagram · 2 diagrams in section
