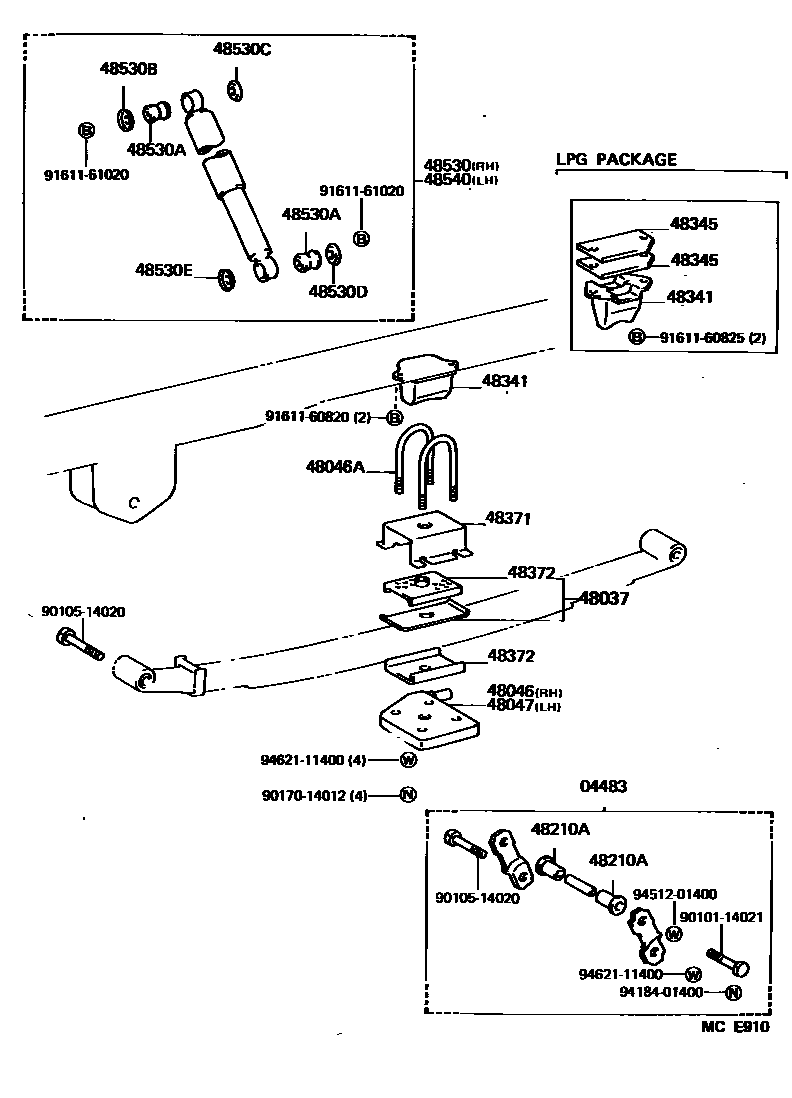

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1���� ���

04483SHACKLE KIT, REAR SPRING

main04483-26021iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main04483-26061iLH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V198708-198908

main04483-26071iLH61,YH61..WT198708-198908

48037SPACER SUB-ASSY, REAR SPRING

main48037-26030×2iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST198708-198908

main48037-26040×2iLH61,YH61..WT198708-198908

main48037-26050×2iLH61,71,YH61..10S198708-198908

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26061iLH61,YH61..WT198708-198908

main48046-26090iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48046ABOLT, U(FOR REAR SPRING)

main90117-14027×4iLH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V198708-198908

main90117-14028×4iLH61,YH61..WT198708-198908

sub90117-14060

main90117-14050×4iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

sub90117-14029

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-26061iLH61,YH61..WT198708-198908

main48047-26080iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48210SPRING ASSY, REAR RH

main48210-26250iLH51,YH50,51..V198708-198908

main48210-26260iLH61,YH61..V..ST198708-198908

main48210-26270iLH71,YH71..VSG198708-198908

main48210-26280iLH61,YH61..WT198708-198908

main48210-26291iLH61..15S198708-198908

main48210-26301iLH71,YH71..15S198708-198908

main48210-26311iLH61,YH61..10S198708-198908

main48210-26330iYH50..06S198708-198808

main48210-26340iYH61..SRF..V4D..DX..ST198708-198808

main48210-26350iYH52,62198708-198908

main48210-26450iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main48210-26510iLH66..V4D..DX..05S198708-198908

main48210-26530iLH61..10S198808-198812

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18008×4iLH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V198708-198908

main90385-18046×4iLH56,66..05S;LH61,YH61..WT;LH66..(DX,SGL)..08S198708-198908

48341BUMPER, REAR SPRING

main48341-26010×2iLH61,71,YH61;LH51,YH50,51,52,62,71..COM,V198708-198908

main48341-26020×2iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main48341-26030×2iYH50..06S;YH61..SRF..V4D..DX..ST198708-198808

48345PLATE, BUMPER SUB

main48345-26020×2iYH50..06S;YH61..SRF..V4D..DX..ST198708-198808

48371RETAINER, REAR SPRING PAD

main48371-26050×2iLH51,61,71,YH50,51,61,71..(COM,V)..ST198708-198908

main48371-26070×4iLH61,YH61..WT198708-198908

main48371-26080×2iYH50..06S;YH61..SRF..V4D..DX..ST198708-198808

main48371-26090×2iYH52,62198708-198908

main48371-26100×2iLH61,71,YH61..10S198708-198908

main48371-26110×2iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

48372PAD, REAR SPRING

main48372-26020×2iLH61,YH61..WT198708-198908

main48372-26030×2iLH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST198708-198908

main48372-26040×2iLH61,71,YH61..10S198708-198908

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80021iLH61,YH61..WT198708-198908

sub48531-80471

main48531-80041iLH51,61,71,YH50,51,52,6#,71..(COM,V)..ST198708-198908

sub48531-80477

main48531-80042iLH61,71,YH61..10S198708-198908

sub48531-80478

main48531-80130iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

sub48531-80482

main48531-80140iLH66..V4D..DX..05S198708-198908

sub48531-80484

main48531-80150iYH57198708-198908

sub48531-80486

main48531-80155iLH51,YH51..WG198708-198908

sub48531-80487

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16009×2iLH61,YH61..WT198708-198908

main90385-19006×2iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02076×4iLH51,YH51,57..WG198708-198908

main90948-03012×2iLH61,71,YH61;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02077×2iLH51,YH51,57..WG198708-198908

main90948-03004×2iLH61,71,YH61;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iLH61,YH61..WT198708-198908

main90948-03015×2iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iLH61,YH61..WT198708-198908

main90948-03011×2iLH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)198708-198908

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80021iLH61,YH61..WT198708-198908

sub48531-80471

main48531-80041iLH51,61,71,YH50,51,52,6#,71..(COM,V)..ST198708-198908

sub48531-80477

main48531-80042iLH61,71,YH61..10S198708-198908

sub48531-80478

main48531-80130iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

sub48531-80482

main48531-80140iLH66..V4D..DX..05S198708-198908

sub48531-80484

main48531-80150iYH57198708-198908

sub48531-80486

main48531-80155iLH51,YH51..WG198708-198908

sub48531-80487

9010114021

main90101-14021

9010514020

main90105-14020

9017014012

main90170-14012

9161160820

main91611-60820

9161160825

main91611-60825

9161161020

main91611-61020

9418401400

main94184-01400

9451201400

main94512-01400

9462111400

main94621-11400

27 parts on this diagram · 10 diagrams in section
