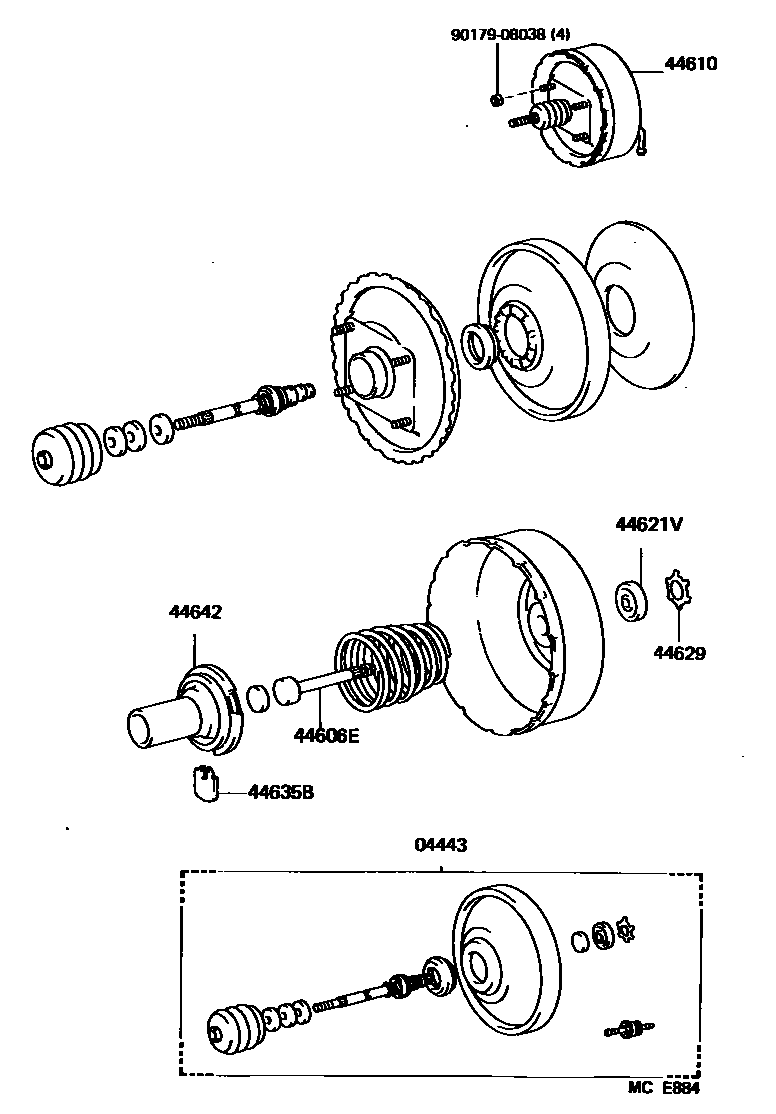

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04443BOOSTER KIT, BRAKE

main04443-26210iLH51,61,71..COM,V198708-198908

main04443-26220iYH50,51,52,6#,71..COM,V198708-198908

main04443-26330iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main04443-26340iYH57198708-198908

main04443-26380iLH51..09S..TD;LH51,61,71..WG..(4FC,5F,5H)198708-198908

main04443-26390iYH51,61..WG198708-198908

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iLH51,61,71,YH50,51,52,6#,71..COM,V198708-198908

main44606-20800iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

44610BOOSTER ASSY, BRAKE

main44610-26260iLH51,61,71,YH50,51,52,6#,71..COM,V198708-198908

main44610-26350iLH56,66..05S;LH66..(DX,SGL)..08S198708-198908

main44610-26360iYH57198708-198908

main44610-26370iLH51,61,71..WG198708-198908

main44610-26380iYH51,61..WG198708-198908

44621VSEAL, BOOSTER BODY

main44621-14030iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

main44621-28120iLH51,61,71,YH50,51,52,6#,71..COM,V198708-198908

44629RING, CIRCULAR INTERNAL

main44628-28120iLH51,61,71,YH50,51,52,6#,71..COM,V198708-198908

main44628-60010iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

44635BKEY, VALVE STOPPER

main44635-20800iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

main44635-28120iLH51,61,71,YH50,51,52,6#,71..COM,V198708-198908

44642PISTON, BRAKE BOOSTER

main44642-20800iLH56,YH57;LH66..05S;LH66..(DX,SGL)..08S198708-198908

main44642-32010iLH51,61,71,YH50,51,52,6#,71..COM,V198708-198908

9017908038

main90179-08038

8 parts on this diagram · 7 diagrams in section
